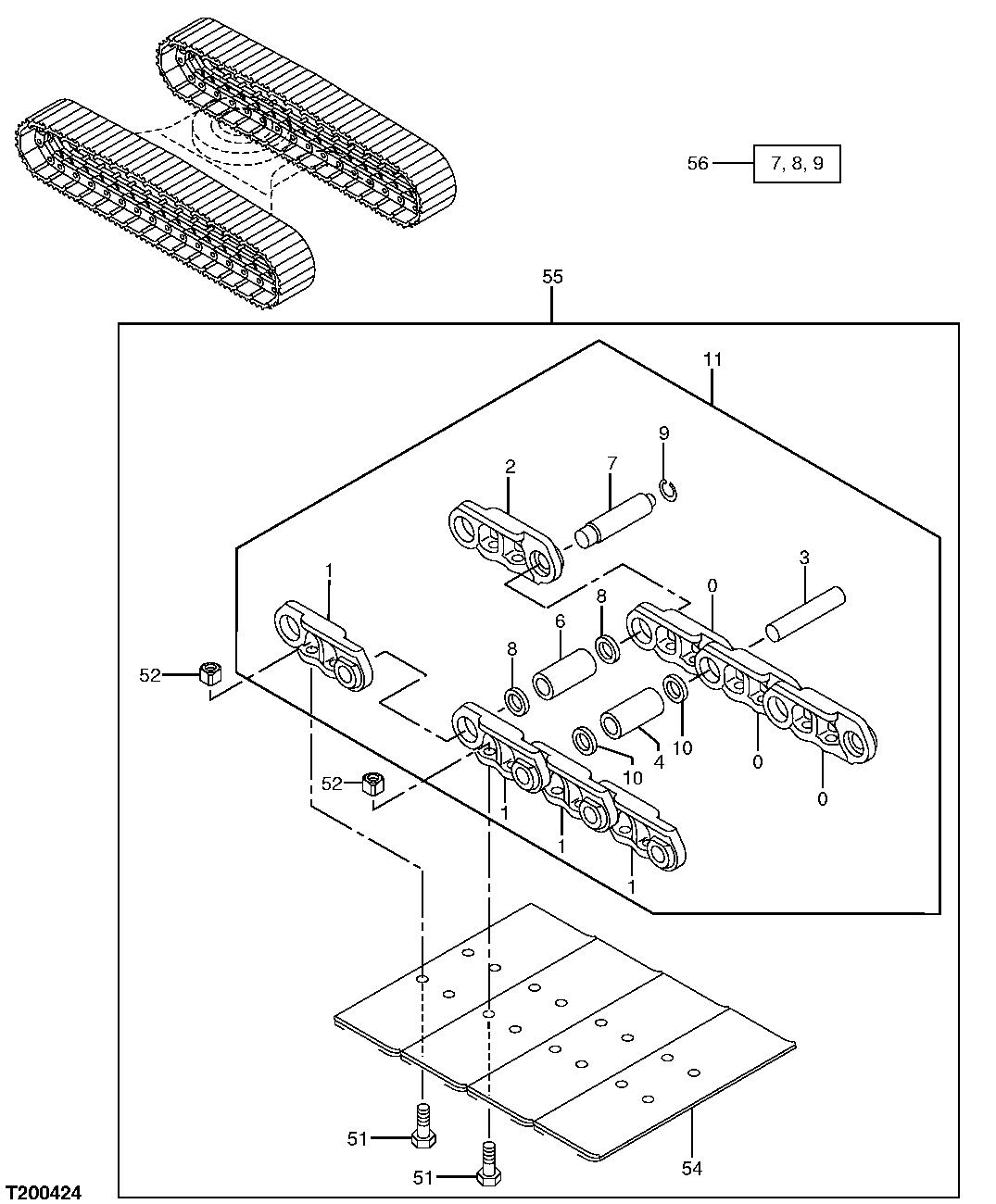

Запчасти John Deere 60LC 16 - Track Chains (041911 - ) 0130 Track Systems

0

AT180025

Link

Right (SUB FOR T191399)

42шт.

1

AT180027

Link

Left (SUB FOR T191398)

43шт.

2

T209261

Master Track LINK-RH

Right Master (SUB FOR T191397)

1шт.

3

AT180028

Pin Fastener

(SUB FOR T191394)

42шт.

4

AT186162

Bushing

(SUB FOR T191396)

42шт.

6

AT219468

Bushing

(SUB FOR T191395)

1шт.

7

T209260

Master Track Pin

Master (SUB FOR AT174861)

1шт.

8

AT219471

Spacer

Master (SUB FOR T191392)

1шт.

9

T209259

Snap Ring

(SUB FOR AT174863)

2шт.

10

AT186161

Seal

(SUB FOR TH100434)

84шт.

11

AT311605

Track Chain W/O Shoes

(SUB FOR AT280860)

1шт.

51

AT180036

Track Bolt

M18 X 52 (SUB FOR T191421)

172шт.

52

AT180048

Nut

M18 (SUB FOR T191422)

172шт.

54

AT180034

Open Center 3 Bar Shoe

(600mm WIDE), (SUB FOR T191420)

43шт.

AT180035

Open Center 3 Bar Shoe

(700mm WIDE), (SUB FOR T191419)

43шт.

55

AT311608

Track Assembly With Shoes

600mm

1шт.

AT311610

Track Assembly With Shoes

700mm

1шт.

56

AT313621

Chain Kit

Master (KIT) (INCLUDES T2092 60, T209259 AND (2) AT219471)

1шт.
