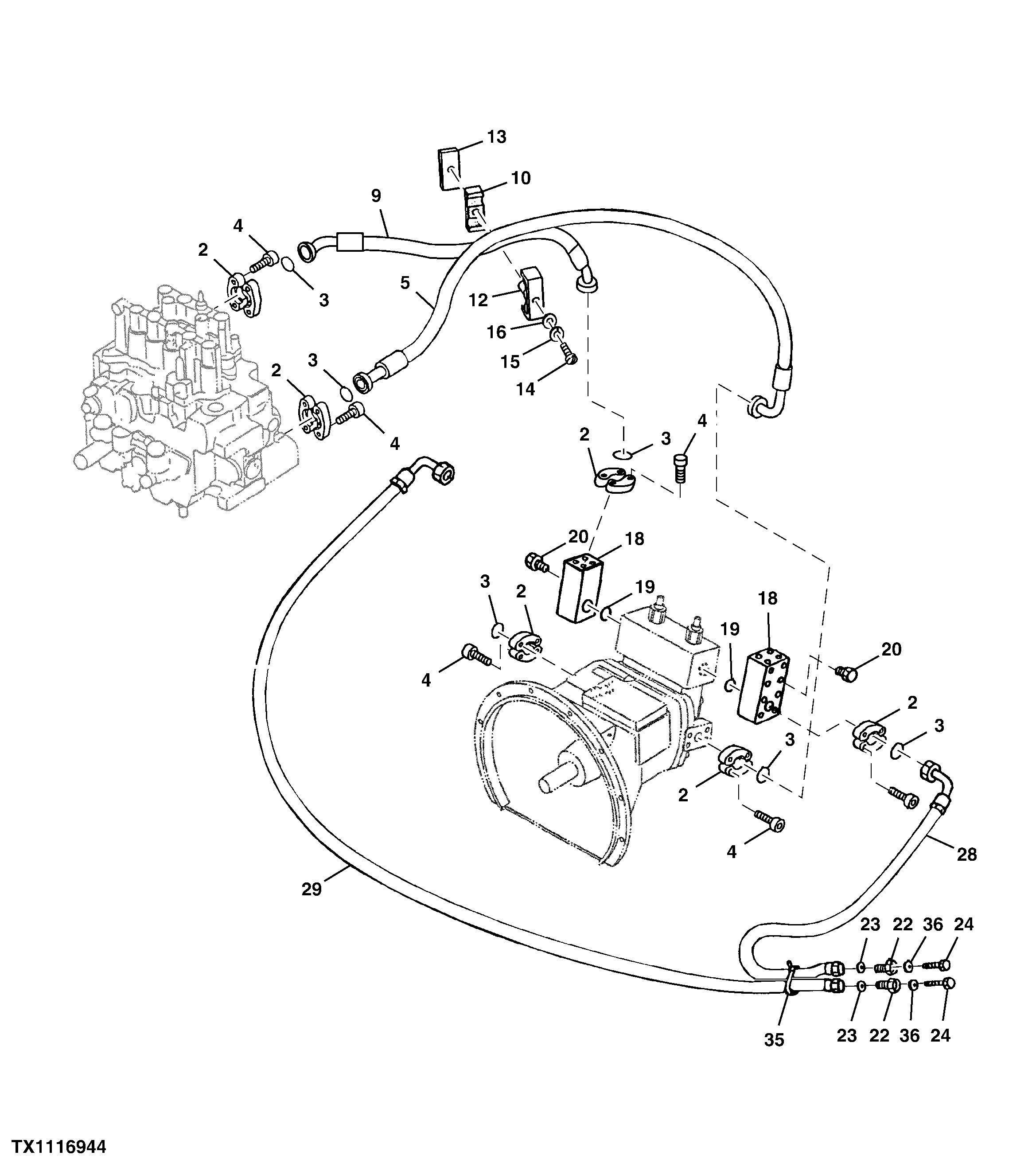

Запчасти John Deere 60LC 229 - Delivery Lines 2160 Vehicle Hydraulics

2

T107446

Flange Fitting

12шт.

3

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

6шт.

4

19M7576

Screw

M10 X 30 (SUB FOR J781030)

24шт.

5

AP35156

Hydraulic Hose

(SUB FOR 4388826)

1шт.

9

4388829

Hose

(SUB FOR AP35157)

1шт.

10

3072291

Isolator

(SUB FOR AT214427)

1шт.

12

8061722

Clamp

(SUB FOR AP34797)

1шт.

13

9738975

Clamp

(SUB FOR AT204853)

1шт.

14

19M8088

Cap Screw

M12 X 75

1шт.

15

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

16

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

18

2041282

Manifold

(SUB FOR P64604)

2шт.

19

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

2шт.

20

P64605

Bolt

8шт.

22

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

23

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

24

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

28

AP34843

Hydraulic Hose

1шт.

29

AP34844

Hydraulic Hose

Fabricate

1шт.

35

H77698

Tie Band

1шт.

36

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.
