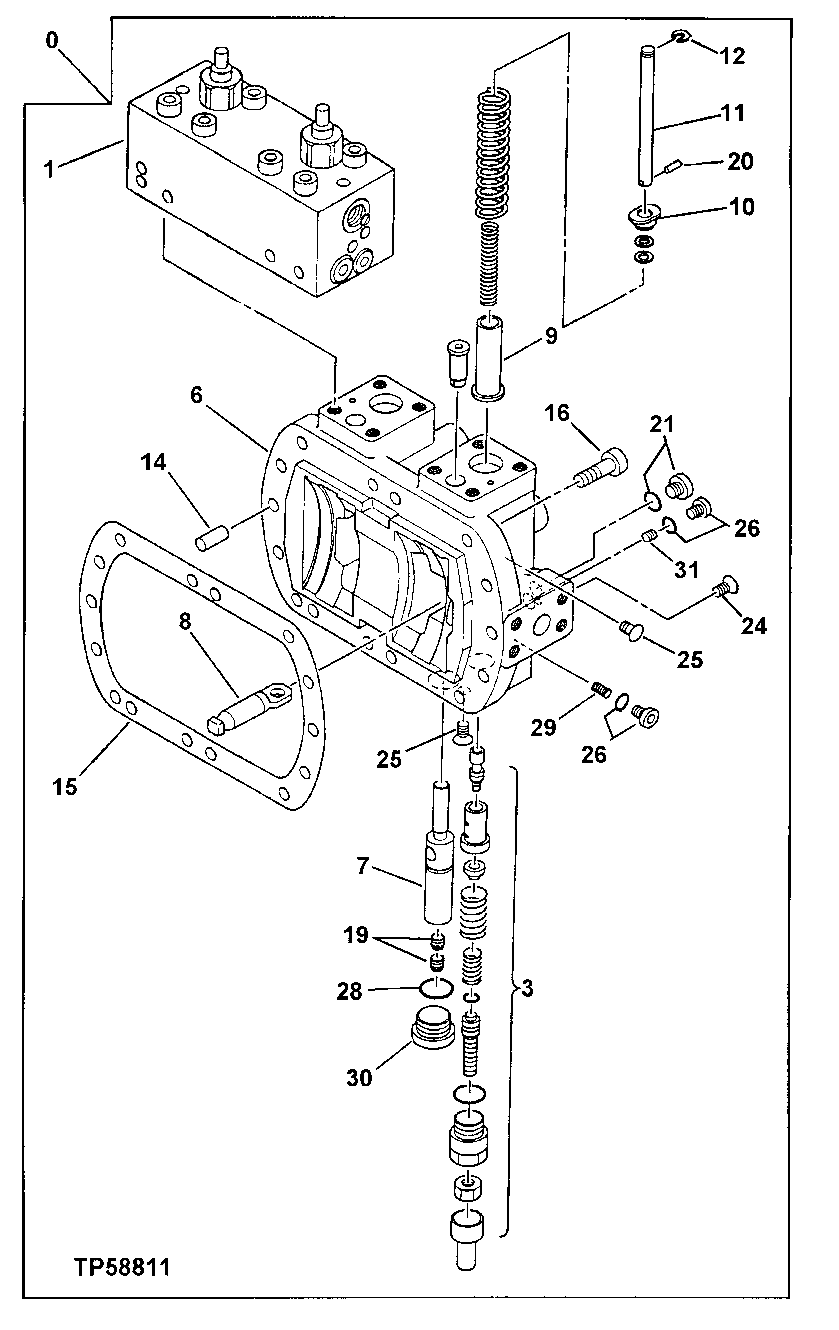

Запчасти John Deere 60LC 221 - Hydraulic Pump Regulator 2160 Vehicle Hydraulics

0

4383569

Regulator

(SUB FOR AT218118)

1шт.

1

4383579

Regulator

(SUB FOR AT218122)

1шт.

3

4383582

Hyd Actuated Control Valve

(SUB FOR AT218123)

2шт.

6

Housing

1шт.

7

Piston

2шт.

8

Rod

2шт.

9

0215007

Retainer

(SUB FOR TH101435)

2шт.

10

0215008

Retainer

(SUB FOR TH101436)

2шт.

11

0215013

Rod

(SUB FOR TH101441)

2шт.

12

0215014

Washer

(SUB FOR TH101442)

2шт.

14

0215018

Pin

10 X 24 mm (0.394" X 0. 945") (SUB FOR TH101446)

2шт.

15

0696001

Gasket

(SUB FOR AT218104, 4621834)

1шт.

16

0696002

Bolt

(SUB FOR AT218105)

12шт.

19

Screw

4шт.

20

0215023

Spring Pin

2 X 14 mm (0.079" X 0.5 51") (SUB FOR TH101451)

2шт.

21

0696003

Fitting Plug

(SUB FOR AT218106)

2шт.

24

Plug

1шт.

25

Plug

2шт.

26

0696004

Fitting Plug

(SUB FOR AT218107)

4шт.

28

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

29

0311704

Orifice

(SUB FOR TH109014)

2шт.

30

0215011

Fitting Plug

(SUB FOR TH101439)

2шт.

31

0696005

Orifice

(SUB FOR AT218108)

2шт.
