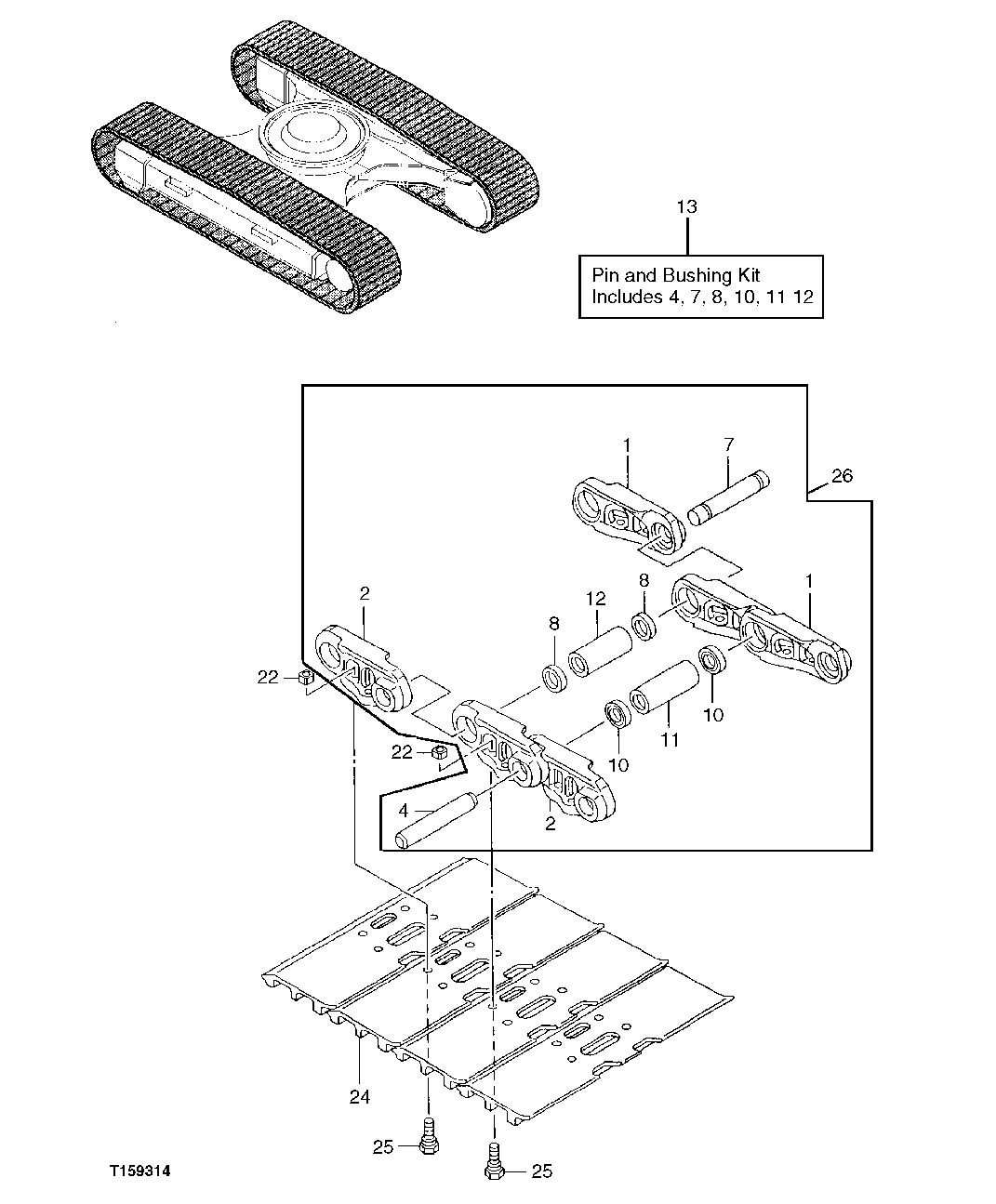

Запчасти John Deere 60LC 15 - Track Chains ( - 041910) 0130 Track Systems

1

AT180025

Link

43шт.

2

AT180027

Link

43шт.

4

AT180028

Pin Fastener

(A) 38 X 212 mm (1.496" X 8.346")

41шт.

7

AT180030

Pin Fastener

(A) Master Pin (ALSO ORDER (2) AT219471 AND AT219468)

1шт.

8

Spacer

Master ( FFSB133867 NLA ) (REPLACED BY AT219471)

2шт.

AT219471

Spacer

(A) Master (ALSO ORDER AT180030 AND AT219468)

2шт.

10

AT180029

Seal

Dual Spring Washer

172шт.

AT186161

Seal

(A) M Seal

84шт.

11

Bushing

( AT180032 NLA) (REPLACED BY AT186162)

41шт.

AT186162

Bushing

(A) (ALSO ORDER (2) AT 186161) Use With M Seal

41шт.

12

Master Track Bushing

Master (FFSB113387 NLA) (REPLACED BY AT219468)

1шт.

AT219468

Master Track Bushing

(A) Master (ALSO ORDER ( 2) AT219471 AND AT180030)

1шт.

13

AT187185

Pin & Bushing Kit

Includes All Parts Marked (A)

1шт.

22

AT180048

Nut

Each Side Of Unit

172шт.

24

AT180034

Open Center 3 Bar Shoe

(600mm), Each Side Of Unit

43шт.

AT180035

Open Center 3 Bar Shoe

(700mm), Each Side Of Unit

43шт.

25

AT180036

Track Bolt

Each Side Of Unit

172шт.

26

Track Chain W/O Shoes

( AT180024 NLA) (SUB AT311605) Sna p Ring Style One Each Side Of Unit

2шт.
