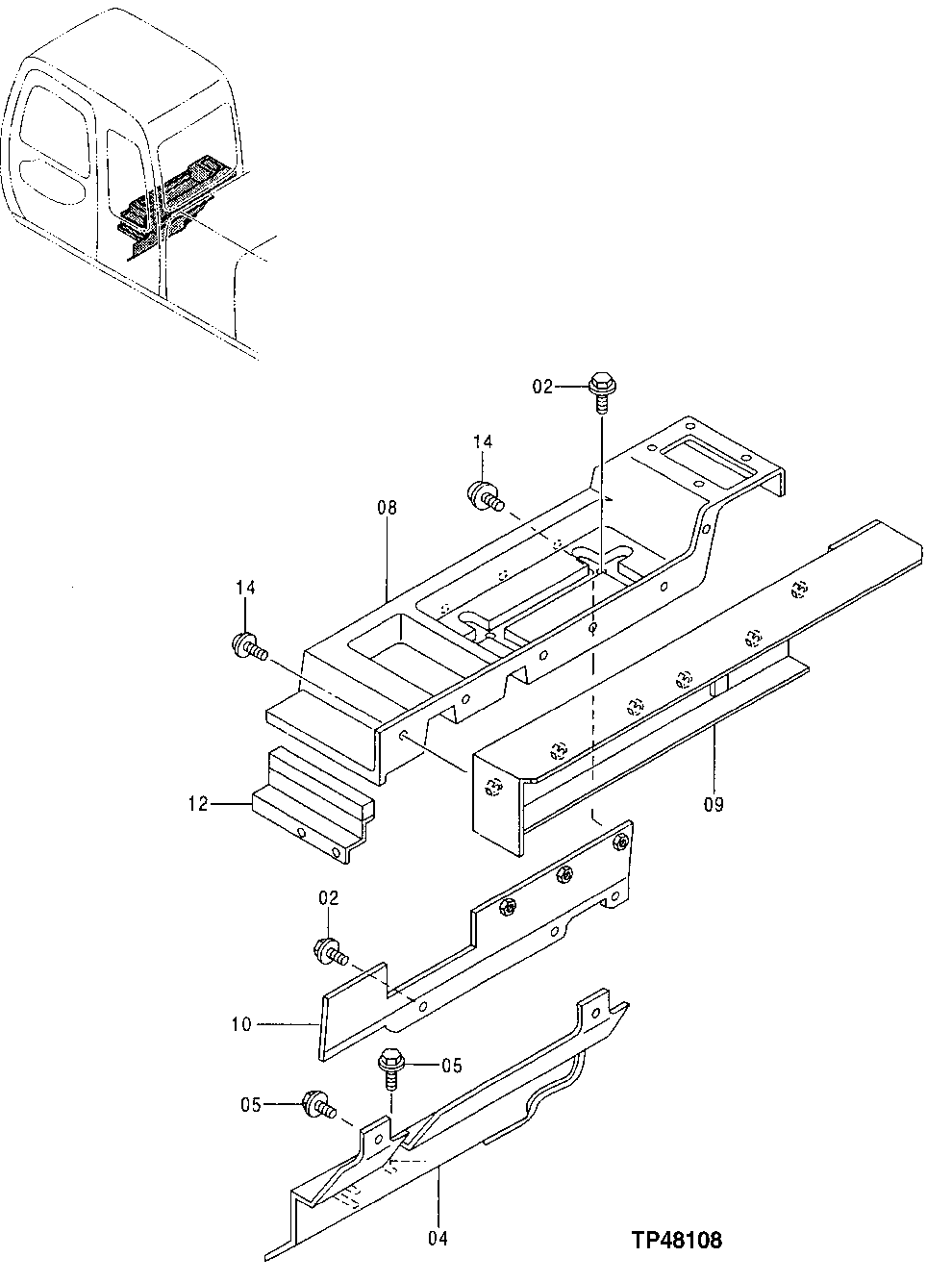

Запчасти John Deere 60LC 196 - Rear Tray 1830 Heating & Air Conditioning

2

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20, ALONG WITH 24M7036 AND 12M7065

6шт.

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

4

6016127

Cover

SUB FOR AT215112

1шт.

5

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

8

0003100

Tray

SUB FOR AT215082 AND 0002231

1шт.

9

7035765

Cover

SUB FOR AT215115, 7032622 AND AP37093

1шт.

10

8068043

Bracket

SUB FOR AT215122

1шт.

12

8067575

Bracket

SUB FOR AT215119

1шт.

14

19M7923

Cap Screw

M6 X 12 SUB FOR 19M6614

9шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

9шт.

12M7006

Lock Washer

6 mm

9шт.
