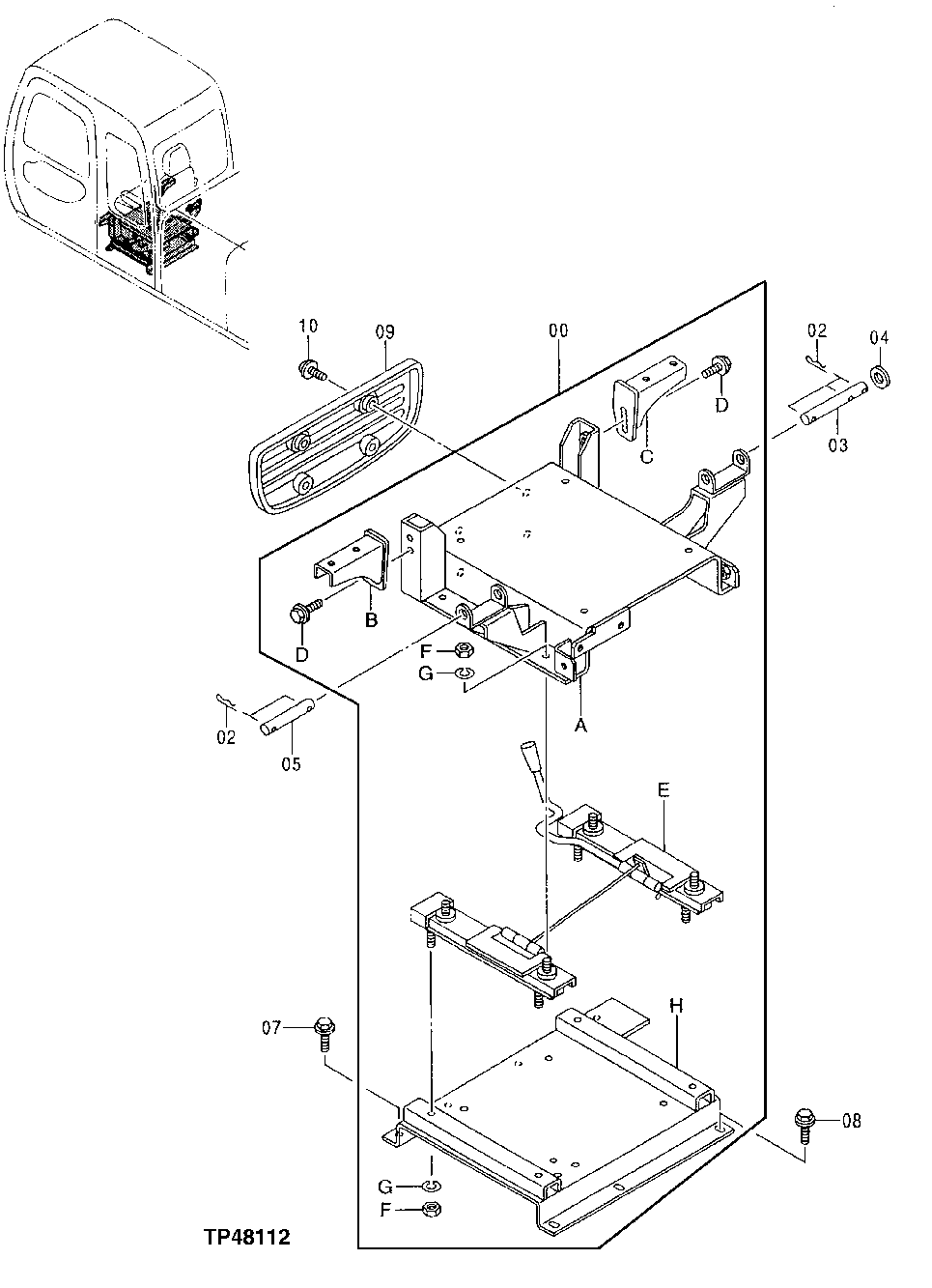

Запчасти John Deere 60LC 192 - Seat Stand 1821 Seat And Seat Belts

0

Stand

Not Available For Service

1шт.

0A

7032230

Base

(SUB FOR AT216006)

1шт.

0B

AT307743

Bracket

(SUB FOR 8061123) Left

1шт.

0C

AT307744

Bracket

(SUB FOR 8061563) Right

1шт.

0D

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

0E

4382794

Drawer Slide

(SUB FOR AT215566)

1шт.

0F

14M7444

Nut

M10 (SUB FOR TH104196 AND J952010)

8шт.

0G

12M7066

Lock Washer

10 mm

8шт.

0H

8061040

Stand

(SUB FOR 8068058, APPL)

1шт.

2

CH11528

Quick Lock Pin

(SUB FOR (5) P63175)

5шт.

3

4341890

Pin

(SUB FOR AT215518)

1шт.

4

N231749

Washer

20.620 X 38.100 X 6.350 m m (13/16" X 1-1/2" X 1/4")

1шт.

5

4376707

Pin

(SUB FOR AT215555)

1шт.

7

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

8

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

9

3072610

Cover

(SUB FOR AT215483)

1шт.

10

21M7277

Screw

M6 X 25

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.
