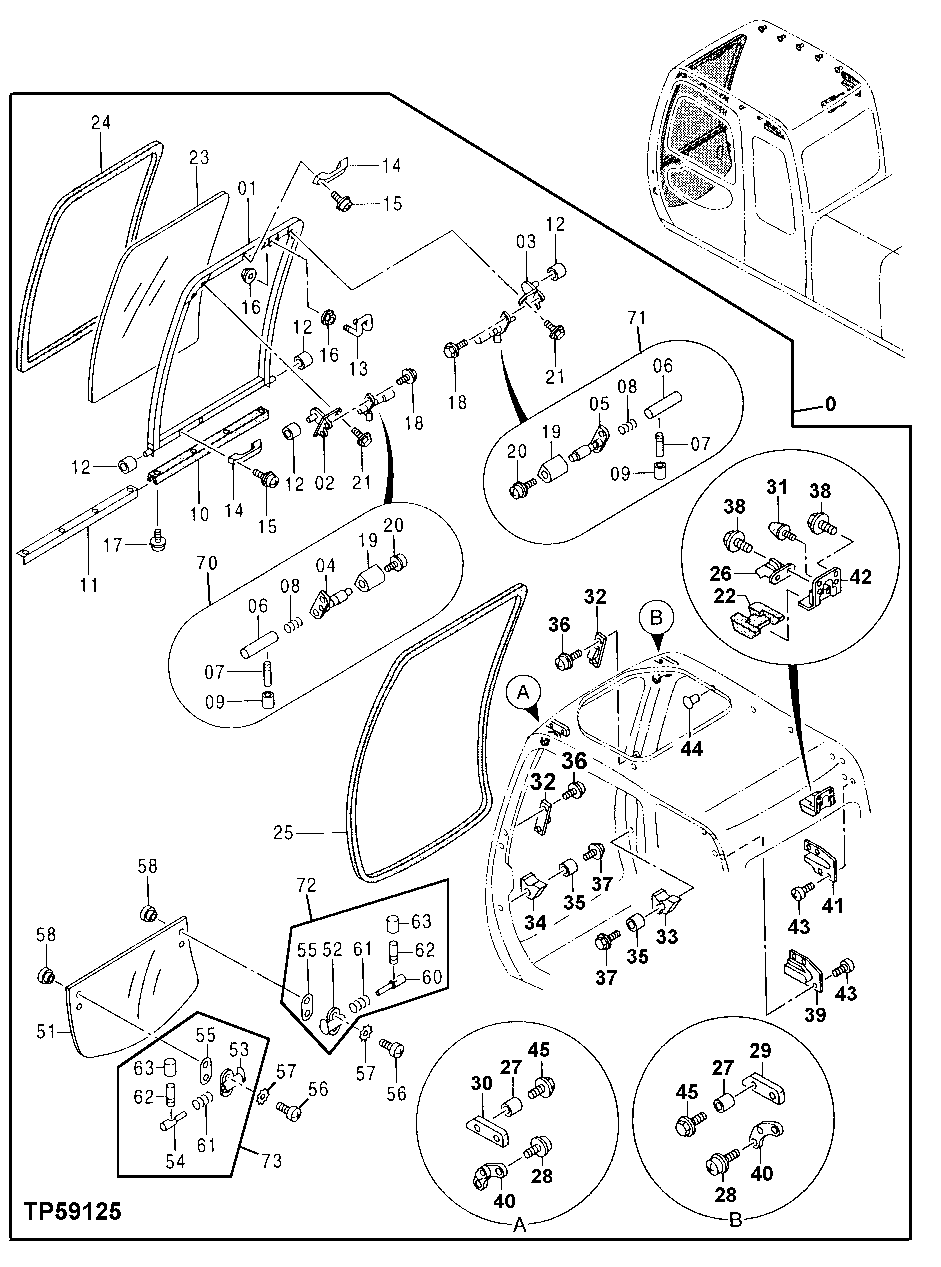

Запчасти John Deere 60LC 176 - Cab Components 1810 Operator Enclosure

0

4383439

Cab

(SUB FOR AT215570) Contains All Item s On This Page Additional Components Listed On Previous and Following Page s

1шт.

1

4369596

Frame

(SUB FOR AT214102)

1шт.

2

4369604

Bracket

(SUB FOR AT214108)

1шт.

3

4369603

Bracket

(SUB FOR AT214107)

1шт.

4

FYA00045084

Retainer

(SUB FOR 4369602 AND AT214106)

1шт.

5

4369598

Retainer

(SUB FOR AT214103)

1шт.

6

4403327

Universal Driveshaft

(SUB FOR AT214104, 4369599)

2шт.

7

4295480

Lever

(SUB FOR AT156993)

2шт.

8

494918

Spring

(SUB FOR TH106783)

2шт.

9

4295876

Cover

(SUB FOR AT156994)

2шт.

10

4369607

Isolator

(SUB FOR AT214111)

1шт.

11

4369608

Channel

(SUB FOR AT214112)

1шт.

12

4369606

Bushing

(SUB FOR AT214110)

4шт.

13

4369605

Striker

(SUB FOR AT214109)

1шт.

14

4204579

Handle

(SUB FOR TH108661)

2шт.

15

19M8425

Cap Screw

M6 X 16

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

16

4414857

Nut

(SUB FOR AT157068)

4шт.

17

4372214

Screw

(SUB FOR AT214301)

4шт.

18

4372225

Screw With Washer

(SUB FOR AT214311)

4шт.

19

4456227

Cover

(SUB FOR 4369600 AND AT214105)

2шт.

20

J680514

Screw With Washer

(SUB FOR AT213610)

2шт.

21

Screw With Washer

(SUB FOR AT214312)

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24M7128

Washer

12.500 X 24 X 2.500 mm

4шт.

12H301

Lock Washer

1/2"

4шт.

22

4369563

Cover

(SUB FOR AT214073)

1шт.

23

AT214113

Windowpane

1шт.

24

4369610

Weatherstrip

(SUB FOR AT214114)

1шт.

25

4369586

Weatherstrip

(SUB FOR AT214096)

1шт.

26

4369562

Latch

(SUB FOR AT214072)

1шт.

27

4369582

Bushing

(SUB FOR AT214092)

4шт.

28

4372210

Screw With Washer

(SUB FOR AT214297)

4шт.

29

4369580

Stop

(SUB FOR AT214090)

1шт.

30

4369581

Stop

(SUB FOR AT214091)

1шт.
