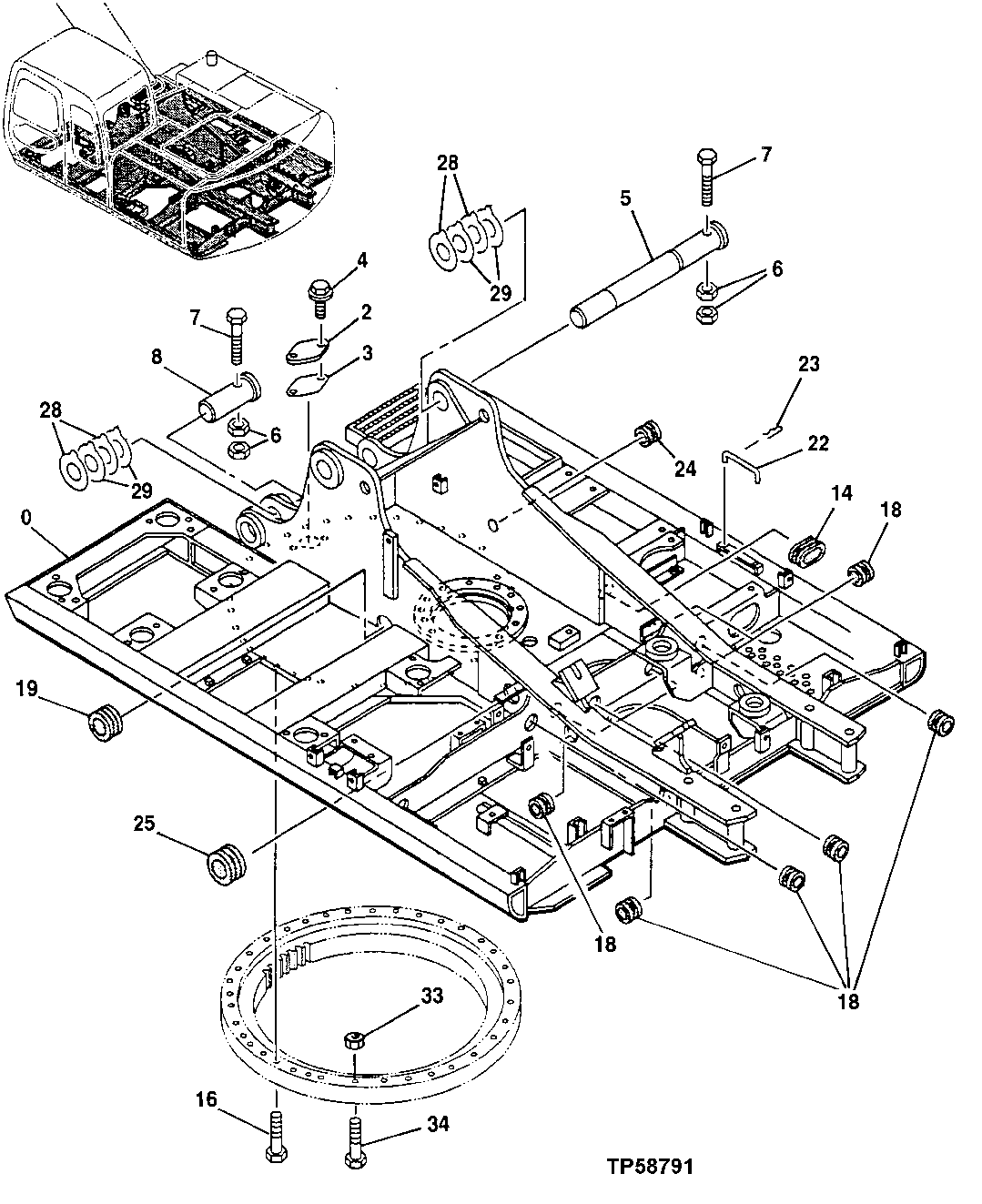

Запчасти John Deere 60LC 166 - Main Frame 1740 Frame Installation

0

Main Frame

AP33304 NLA Convenience Assembly

1шт.

2

4604209

Cover

SUB FOR AT154929 OR 4255799

1шт.

3

4161735

Gasket

SUB FOR P60451, APPL; SUB FOR AT130379

1шт.

4

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

5

P64864

Pin

1шт.

6

14M7277

Nut

M20

6шт.

7

19M8503

Cap Screw

M20 X 160

3шт.

8

P64865

Pin Fastener

2шт.

13

P60466

Cotter Pin

No Longer Required

3шт.

14

4276794

Grommet

SUB FOR AT154344

2шт.

16

P64861

Bolt

33шт.

18

4509404

Grommet

SUB FOR TH100553

9шт.

19

4190960

Grommet

SUB FOR AT126283

1шт.

22

4341788

Rod

SUB FOR AT213884 OR 4341788

1шт.

23

H132922

Cotter Pin

1шт.

24

4221018

Bushing

SUB FOR AT203980

1шт.

25

4221019

Bushing

SUB FOR P60453

1шт.

28

4361179R

Thrust Washer

SUB FOR AT214006 OR 4361179

6шт.

29

4361604R

Thrust Washer

SUB FOR AT214008 OR 4361604

6шт.

33

P65198

Spacer

1шт.

34

4385611

Bolt

SUB FOR P65199

1шт.
