Запчасти John Deere 60LC 154 - Electric Components 1674 Wiring Harness And Switches

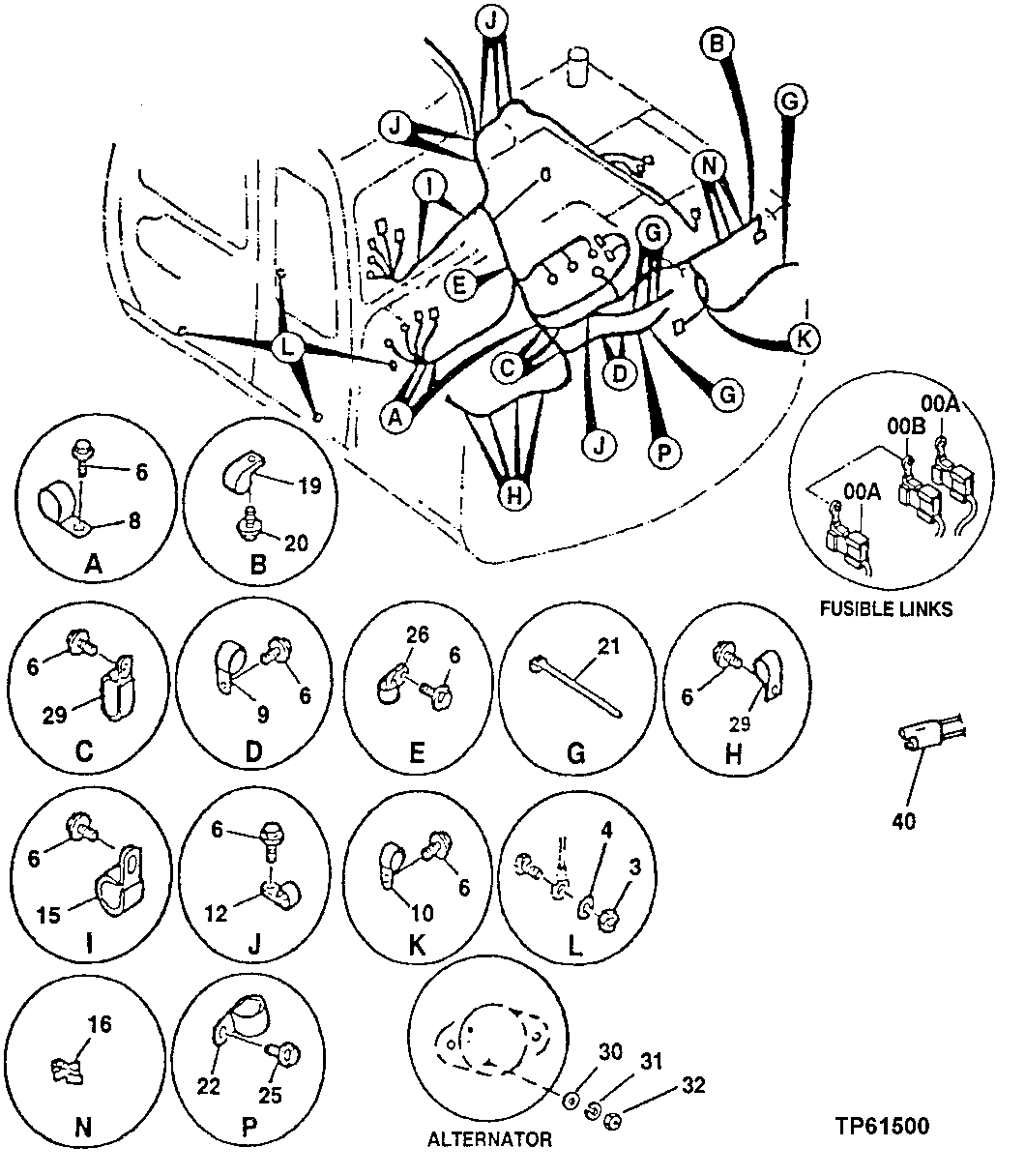

Схема запчастей John Deere 60LC - 154 - Electric Components 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

0

0002806

Wiring Harness

(SUB FOR AP35182) See DTAC Solut ion For Repair Kit and Connectors

1шт.

AT167165

Wiring Harness

Auxiliary Solenoid Control Valve

2шт.

0A

4270554

Fuse

40A, (SUB FOR AT160982) Fusible Link Green

2шт.

0B

4287670

Fuse

60A, (SUB FOR AT200499) Fusible Link Yellow

1шт.

3

14M7274

Nut

M10

4шт.

4

12M7066

Lock Washer

10 mm

4шт.

6

19M7938

Cap Screw

M10 X 20

ARшт.

12M7066

Lock Washer

10 mm

ARшт.

8

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

3шт.

9

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

ARшт.

10

4190275

Clamp

(SUB FOR TH108598)

1шт.

11

T32854

Clamp

5шт.

12

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

7шт.

15

AT121321

Hose Clamp

2шт.

16

4336420

Clip

(SUB FOR P61786)

3шт.

19

4000860

Clamp

(SUB FOR AT154911)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

21

H77698

Tie Band

12шт.

22

T153974

Clamp

1шт.

23

12H317

Lock Washer

9/16"

1шт.

24

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

25

19M7877

Cap Screw

M14 X 30

1шт.

26

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

29

4190266

Clip

(SUB FOR TH108793)

ARшт.

30

12M7064

Lock Washer

5 mm

1шт.

31

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

32

14M7297

Nut

M5

1шт.

40

AT172578

Wiring Harness

Diode Used To Protect Against Voltage Spikes

1шт.

Выбрано товаров: 29
