Запчасти John Deere 60LC 141 - FUEL TANK FUEL LINES 0560 External Fuel Supply Systems

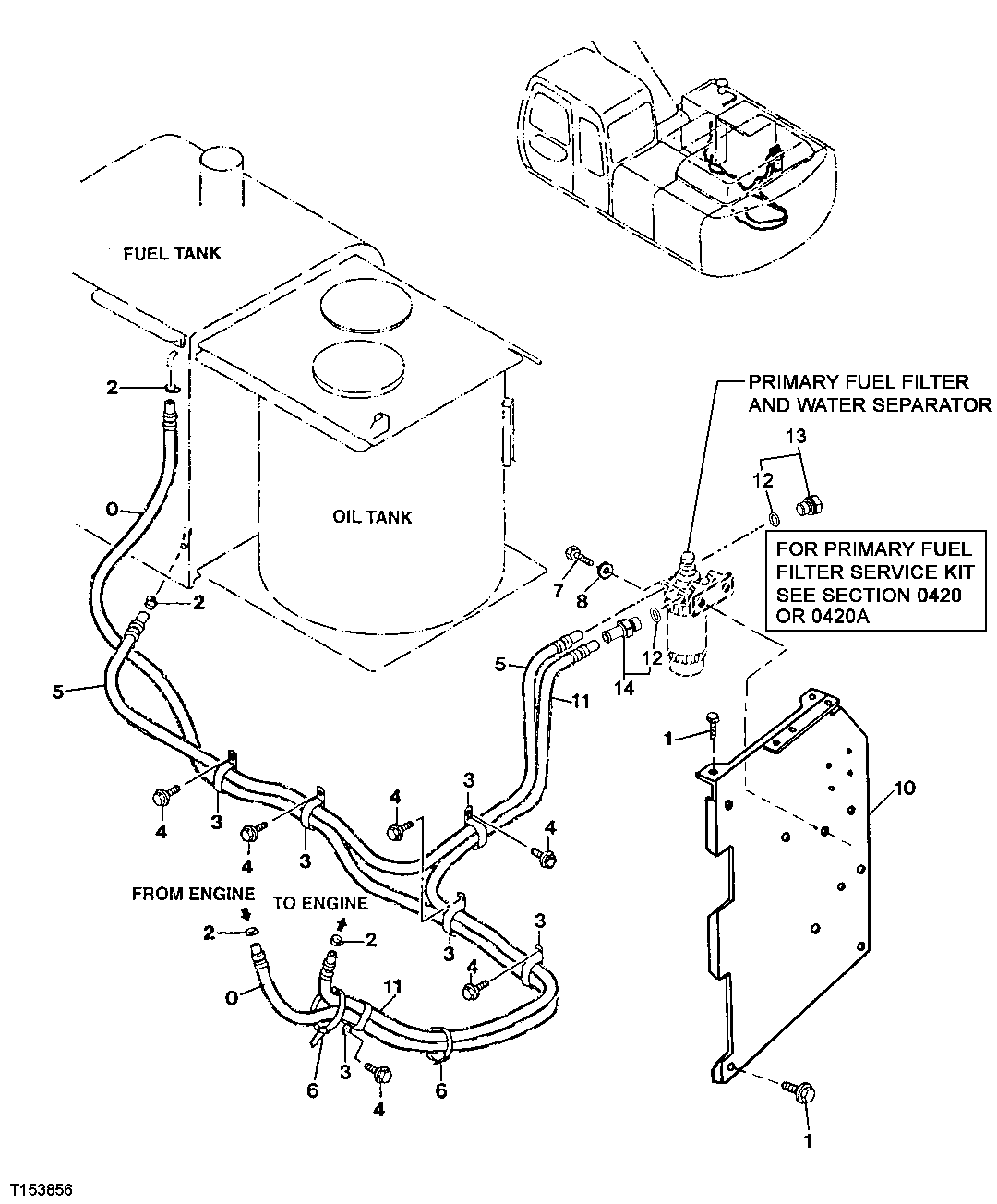

Схема запчастей John Deere 60LC - 141 - FUEL TANK FUEL LINES 0560 External Fuel Supply Systems

Артикул

Название

Примечание

Количество

0

TY24398

Bulk Hose

(SUB FOR AP34469) Return

1шт.

1

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

2

TY22464

Clamp

(SUB FOR AR21836)

6шт.

3

4190266

Clip

(SUB FOR TH108793)

6шт.

4

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

5

Bulk Hose

1850mm, Suction (SUB FOR AT206094 ) (MF TY26190 CTL ) ( 9149152 NLA)

1шт.

6

H77698

Tie Band

2шт.

7

19M7358

Cap Screw

M10 X 40

2шт.

8

12M7066

Lock Washer

10 mm

2шт.

10

AP35729

Cover

(SUB FOR P63323)

1шт.

11

AP34467

Hose

Suction

1шт.

12

51M7040

O-Ring

9.300 X 2.200 mm

4шт.

13

RE46686

Fitting

2шт.

14

RE500576

Fitting

2шт.

Выбрано товаров: 17
