124 - Engine Flywheel Housing (709640 - 801836)

Запчасти John Deere 60LC 124 - Engine Flywheel Housing (709640 - 801836) 0433B Flywheel, Housing & Fastenings 4045TT055 4045TT055

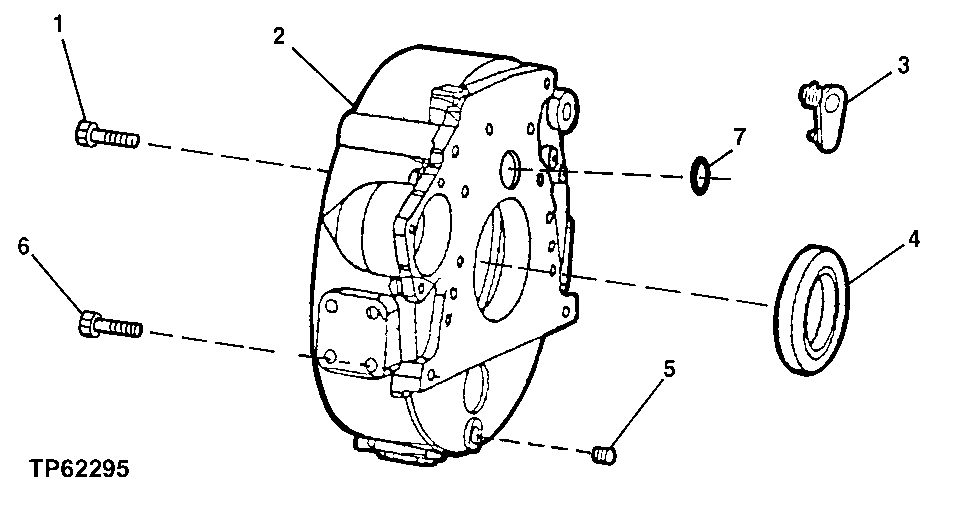

Схема запчастей John Deere 60LC - 124 - Engine Flywheel Housing (709640 - 801836) 0433B Flywheel, Housing & Fastenings 4045TT055 4045TT055
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R135918

Bolt

8шт.

2

R123208

Housing

(SUB R503444 AND R61467)

1шт.

R503444

Housing

1шт.

3

R131768

Plug

1шт.

4

RE44574

Seal

1шт.

5

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

6

19M8306

Screw

M12 X 50

4шт.

7

R61467

O-Ring

1шт.
