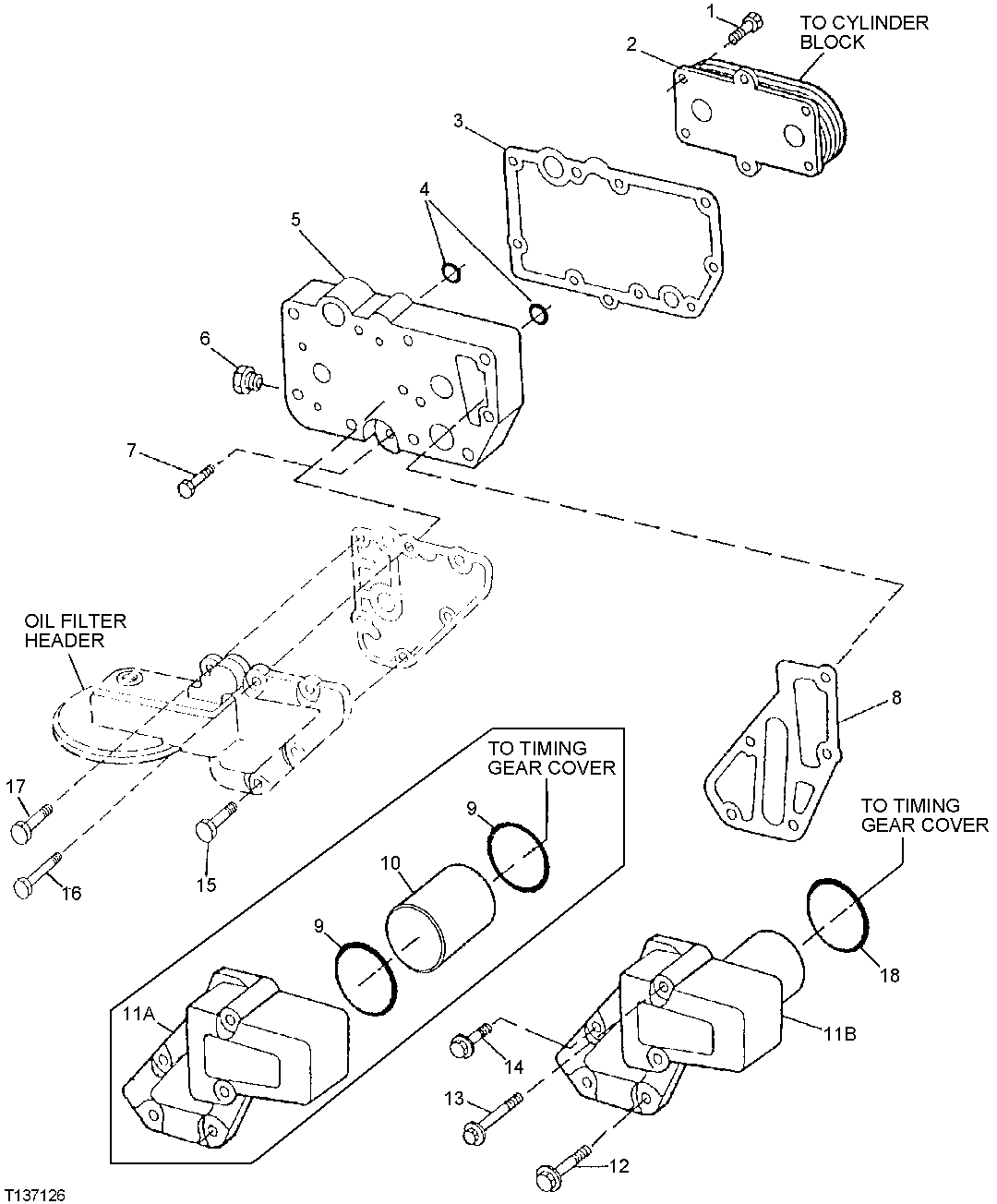

Запчасти John Deere 60LC 113 - Engine Oil Cooler (709640 - 801836) 0419B Engine Oil Cooler 4045TT055 4045TT055

1

RE67231

Screw

(A) M6 X 16

6шт.

2

RE560752

Oil Cooler

(B) SUB FOR RE56690

1шт.

RE522821

Oil Cooler

RE522821 INCLUDES: RE56690 (1), RE 67231 (6), R123471 (1), T122075 (2)

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46686

Fitting

1шт.

7

RE46685

Fitting Plug

1шт.

8

R501428

Gasket

SUB FOR R123502

1шт.

9

R61105

O-Ring

USE WITH R135177

2шт.

10

R115252

Bushing

USE WITH R135177

1шт.

11A

R135177

Adapter Fitting

SUB R502811

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7802

Screw

M8 X 65

2шт.

13

19M7970

Screw

M8 X 100

2шт.

14

RE67238

Screw

(A) M8 X 20

1шт.

15

19M7802

Screw

M8 X 65

4шт.

16

19M7970

Screw

M8 X 100

1шт.

17

RE67238

Screw

(A) M8 X 20

1шт.

18

R504734

O-Ring

USE WITH R502811

1шт.
