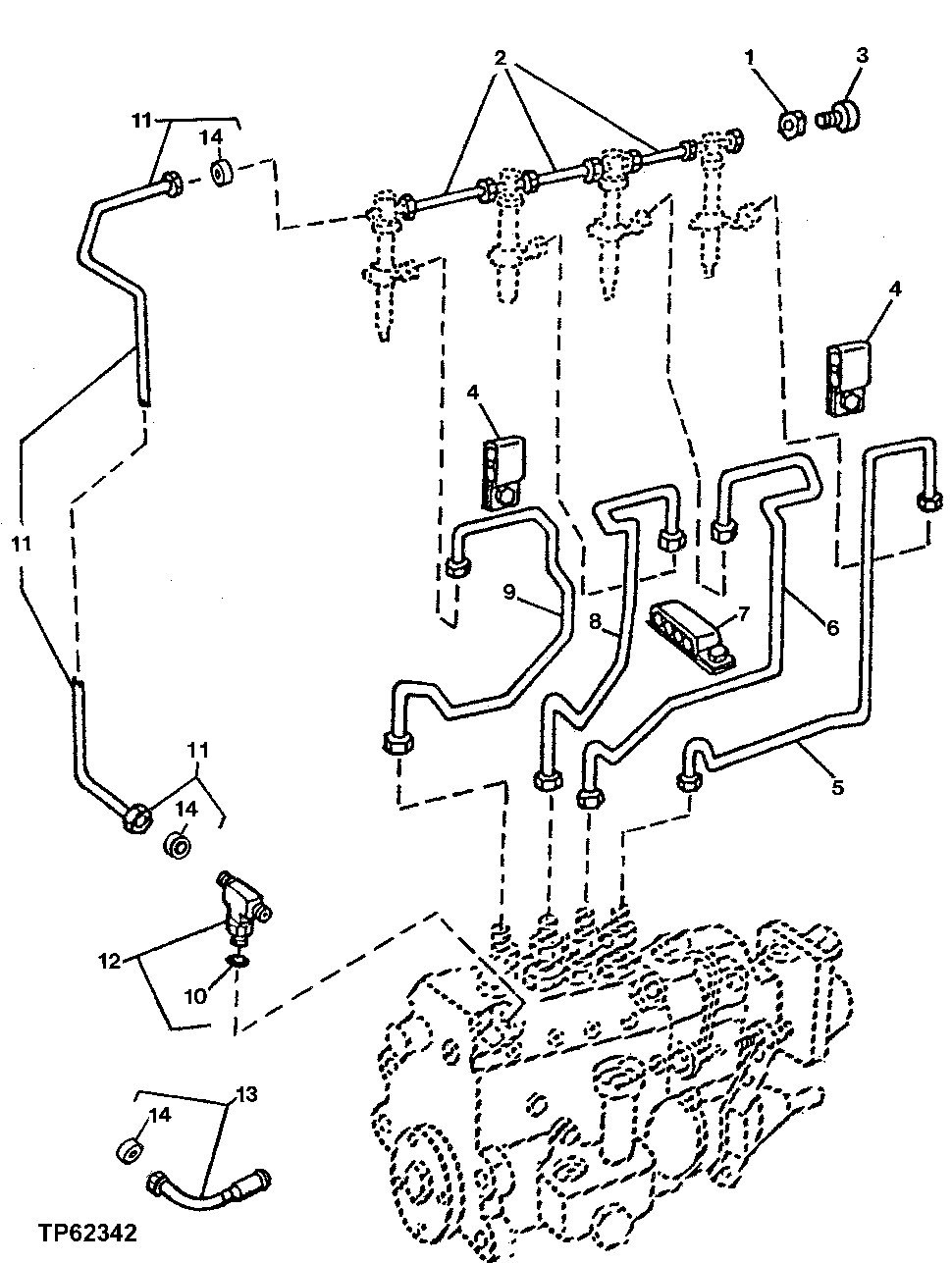

Запчасти John Deere 60LC 101 - Fuel Injection System (709640 - 801836) 0413B Fuel Injection System 4045TT055 4045TT055

1

R123593

Tube Nut

1шт.

2

RE68748

Tube

3шт.

3

AR85519

Plug

1шт.

4

RE19797

Clamp

2шт.

5

RE500088

Fuel Line

(NO. 4) (SUB FOR RE60184)

1шт.

6

RE500087

Fuel Line

(NO. 3) (SUB FOR RE60183)

1шт.

7

RE19799

Clamp

1шт.

8

RE500086

Fuel Line

(NO. 2) (SUB FOR RE60182)

1шт.

9

RE500085

Fuel Line

(NO. 1) (SUB FOR RE60181)

1шт.

10

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

11

RE60175

Fuel Line

Leak Off

1шт.

RE517282

Fuel Line

(SUB FOR RE504548)

1шт.

12

RE502175

Fitting

(SUB FOR RE66742)

1шт.

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

13

RE67050

Fuel Line

Leak Off

1шт.

14

R51936

Sealing Washer

3шт.
