48 - FLYWHEEL HOUSING

Запчасти John Deere 60C LC 48 - FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING & FASTENINGS

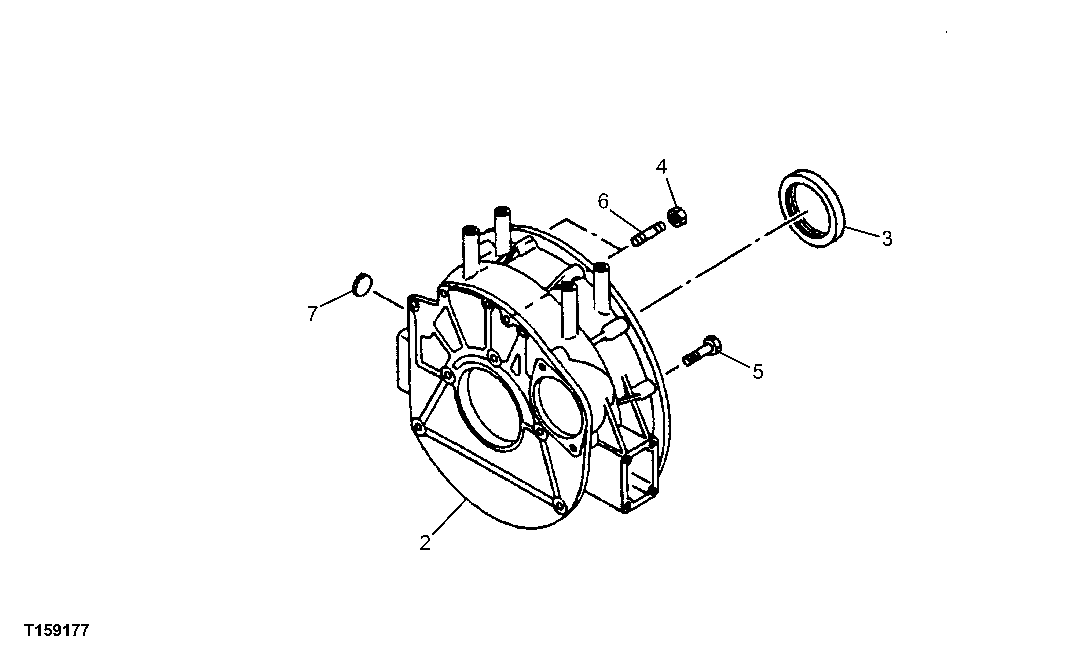

Схема запчастей John Deere 60C LC - 48 - FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING & FASTENINGS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

8973054511

Housing

(SUB FOR 8973054510)

1шт.

3

8970715611

Seal

ALSO INCLUDED IN GASKET SET (ENGINE)

1шт.

4

0911802100

Nut

(SUB FOR TH4447336, 4447336)

2шт.

5

5090002270

Bolt

M12X25

3шт.

AT263876

Bolt

M10X30 FLANGE

1шт.

6

8941077260

Stud

2шт.

7

8972207400

Cover

1шт.

Выбрано товаров: 7
