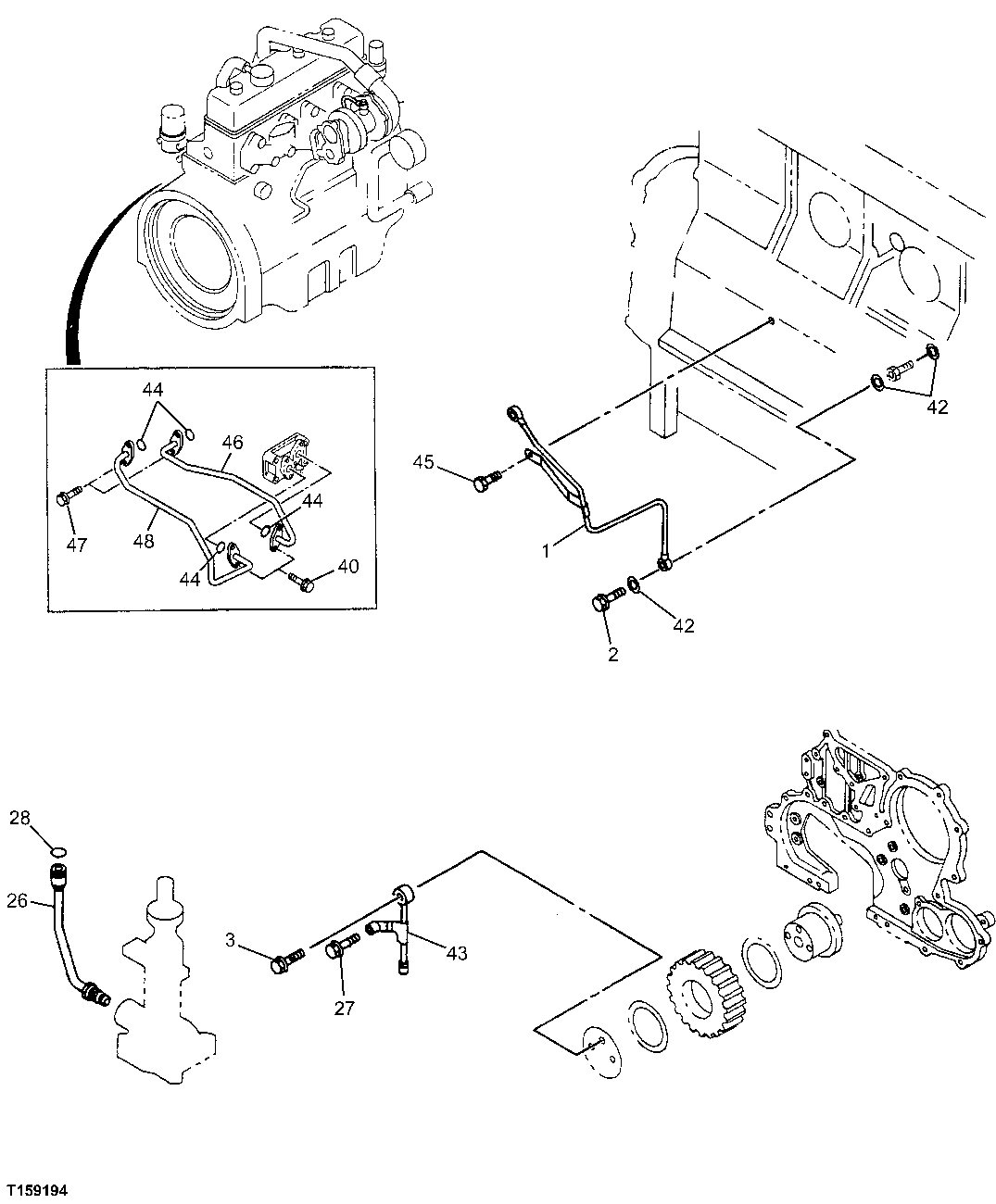

Запчасти John Deere 60C LC 28 - ENGINE OIL AND VACUUM LINES 0407 ENGINE OILING SYSTEM

1

8972329570

Pipe

SUB FOR 8941701231

1шт.

2

5096750181

Bolt

M8X20 FLANGE

1шт.

3

5096750430

Bolt

M8X23

1шт.

26

8944348271

Line

1шт.

27

0500408200

Bolt

M8X22 W/LK WASHER

1шт.

28

5096230023

Gasket

(SUB FOR 5096230020)ALSO INCLUDED IN GASKET SET (ENGINE) SUB FOR 5096230020

1шт.

40

19M7866

Screw

M8 X 20 (SUB FOR AT259925)M 8X20 FLANGE SUB FOR AT259925

4шт.

42

9095720080

Gasket

ID=8.2 OD=17 ALSO INCL IN GASKET SET (ENGINE)

3шт.

43

8971607060

Line

1шт.

44

9095612220

Gasket

4шт.

45

0505406120

Bolt

M6X12 W/LK WASHER SUB FOR 0500406120

1шт.

46

8972153860

Line

1шт.

47

19M7866

Screw

M8 X 20 (SUB FOR AT259925)M 8X20 FLANGE SUB FOR AT259925

4шт.

48

8972153870

Line

1шт.
