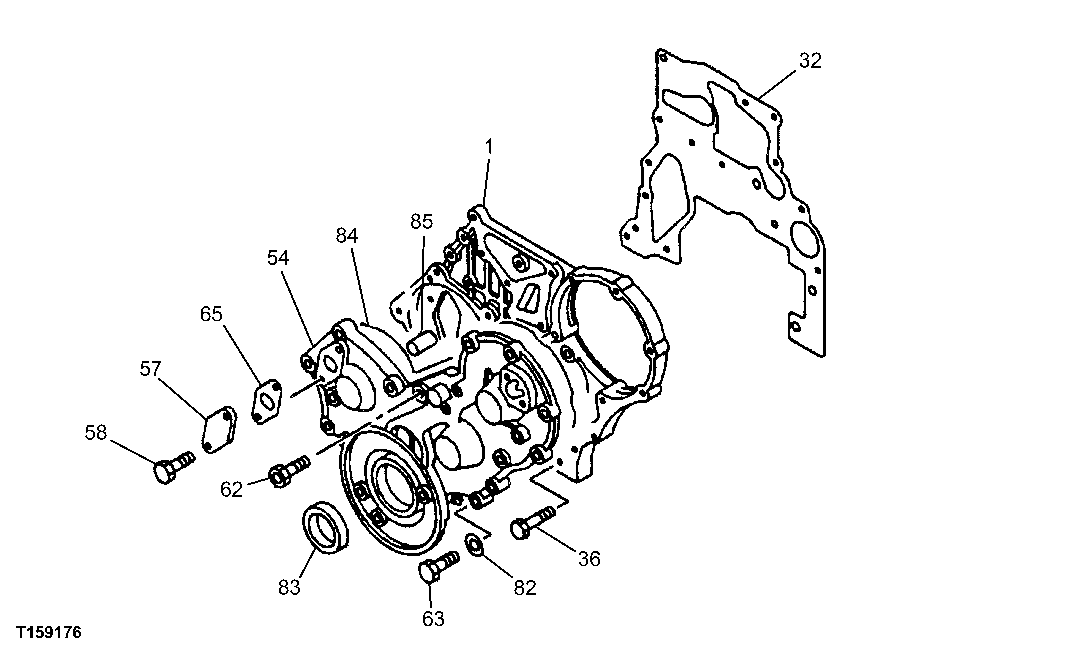

Запчасти John Deere 60C LC 23 - TIMING GEAR CASE 0402 CAMSHAFT AND VALVE ACTUATING MEANS

1

8972190014

Case

1шт.

32

8971172421

Gasket

(SUB FOR 8971172420)ALSO INC LUDED IN GASKET SET (ENGINE)

1шт.

36

Screw With Washer

M8X45 WITH LOCKWASHER SUB 19M7 378 AND 12M7065, 0500408450 NLA

2шт.

0505408180

Bolt

M8X18 WITH LOCKWASHER SUB FOR 0500408180

3шт.

Screw With Washer

M8X20 WITH LOCKWASHER 0500408200 NLA

3шт.

19M7139

Cap Screw

M8 X 20

3шт.

Washer

12M7065 NLA

1шт.

54

8972312141

Cover

1шт.

57

5113210090

Cover

2шт.

58

0280506120

Bolt

(SUB FOR 0280806120)M6X12 FLANGE

4шт.

62

9958212550

Bolt

M12X55 HEX SOCKET

1шт.

63

0280808300

Bolt

(SUB FOR AT259926)M8X30 FLANGE

8шт.

64

AT263858

Bolt

M8X60 FLANGE (NOT ILLUSTRATED)

7шт.

65

Gasket

8971186980 NLA

2шт.

82

0916107080

Washer

SUB FOR 9091607080

1шт.

83

8970491450

Seal

(SUB FOR AT254826)ALSO INCL UDED IN GASKET SET (ENGINE)

1шт.

84

8972386310

Gasket

ALSO INCLUDED IN GASKET SET (ENGINE)

1шт.

85

9081510220

Pin Fastener

9081510200 NLA OD=10 L=20

2шт.
