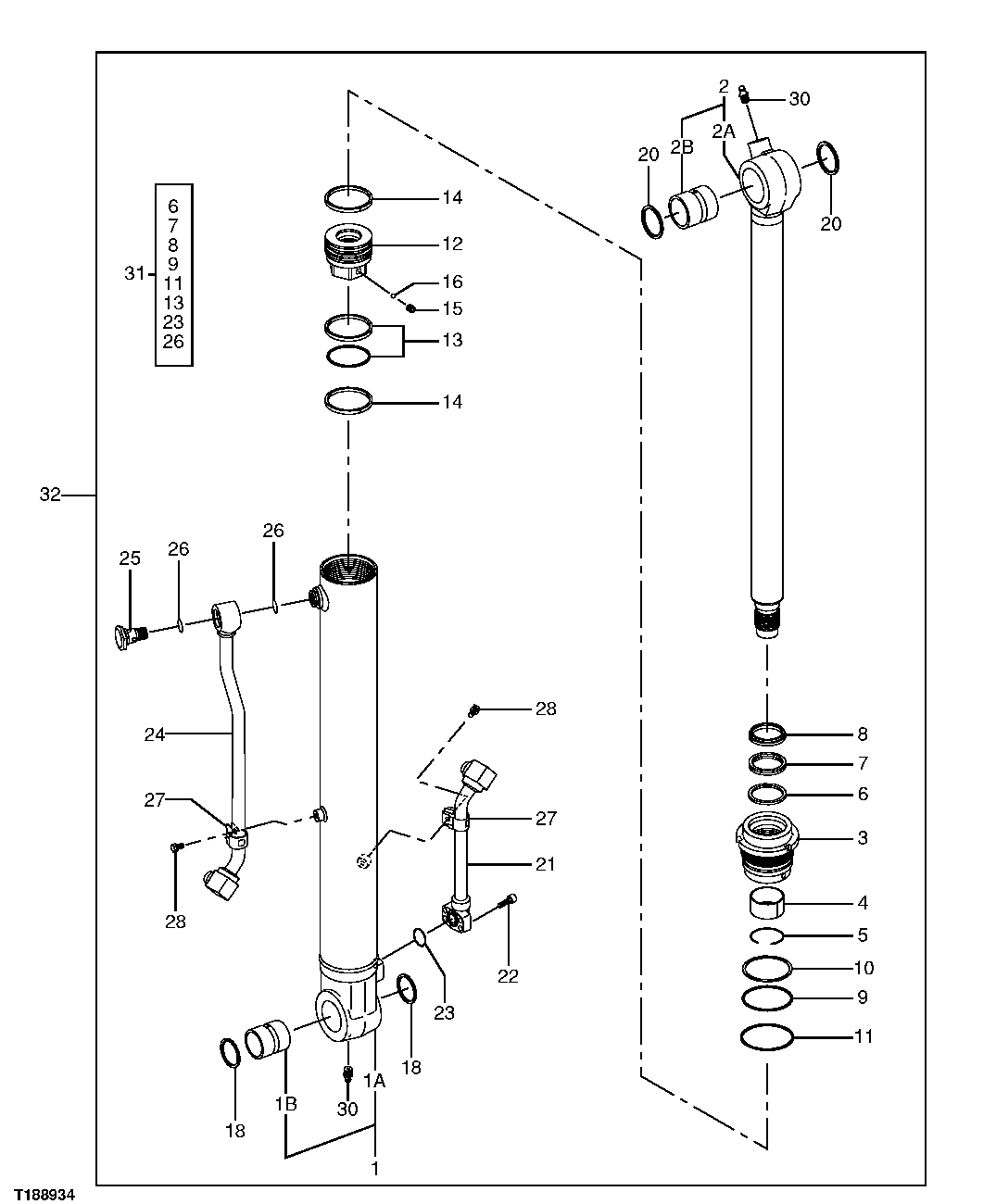

Запчасти John Deere 60C LC 249 - BUCKET CYLINDER COMPONENTS 3365 HYDRAULIC CYLINDERS

1

0827001G

Hydraulic Cylinder Barrel

SUB FOR 0827001

1шт.

1A

Seal

0827002 NSEP

1шт.

1B

4334428

Bushing

SUB FOR TH0827003

1шт.

2

TH0827004J

Hydraulic Cylinder Rod

SUB FOR 0827004, TH0827004

1шт.

2A

0827005

Hydr. Cylinder Rod Guide

1шт.

2B

4374602

Bushing

SUB FOR 0826903

1шт.

3

TH0827006

Hydr. Cylinder Rod Guide

SUB FOR 0827006

1шт.

4

TH0827007

Bushing

1шт.

5

0225804

Snap Ring

1шт.

6

TH0827008

O-Ring

(K) SUB FOR 0827008

1шт.

7

AT264382

Seal

(K) SUB FOR 0225810

1шт.

8

AT264381

Seal

(K) SUB FOR 0453517

1шт.

9

CH17160

Packing

(K) SUB FOR A811080

1шт.

10

TH0827009

Ring

SUB FOR 0827009

1шт.

11

AT264419

O-Ring

(K) SUB FOR A810085

1шт.

12

TH0827010

Piston

SUB FOR 0827010

1шт.

13

AT264286

Ring

(K) SUB FOR 0453510

1шт.

14

0891615

Ring

SUB FOR TH0827011

2шт.

15

0310612

Set Screw

1шт.

16

0111818

Ball

1шт.

18

AT318033

Seal

SUB FOR 4117955, 0827012

2шт.

20

4117954

Seal

SUB FOR 0824205

2шт.

21

TH0827013J

Oil Line

SUB FOR TH0827013

1шт.

22

M340825

Screw

4шт.

23

O-Ring

(K) SUB FOR 4509181, TH1035 74 AND 0976602, AT264354 NSEP

1шт.

24

TH0827014J

Oil Line

SUB FOR TH0827014

1шт.

25

4480022

Plug

SUB FOR 0826814

1шт.

26

CH17886

Packing

(K) SUB FOR 4509182

2шт.

27

4694711

Holder

SUB FOR 0826815)

2шт.

28

0826816

Bolt

2шт.

30

J75481

Fitting

2шт.

31

4464986

Seal Kit

INCLUDES ALL (K) PARTS

1шт.

32

9197151J

Hydraulic Cylinder

SUB FOR 9197151

1шт.
