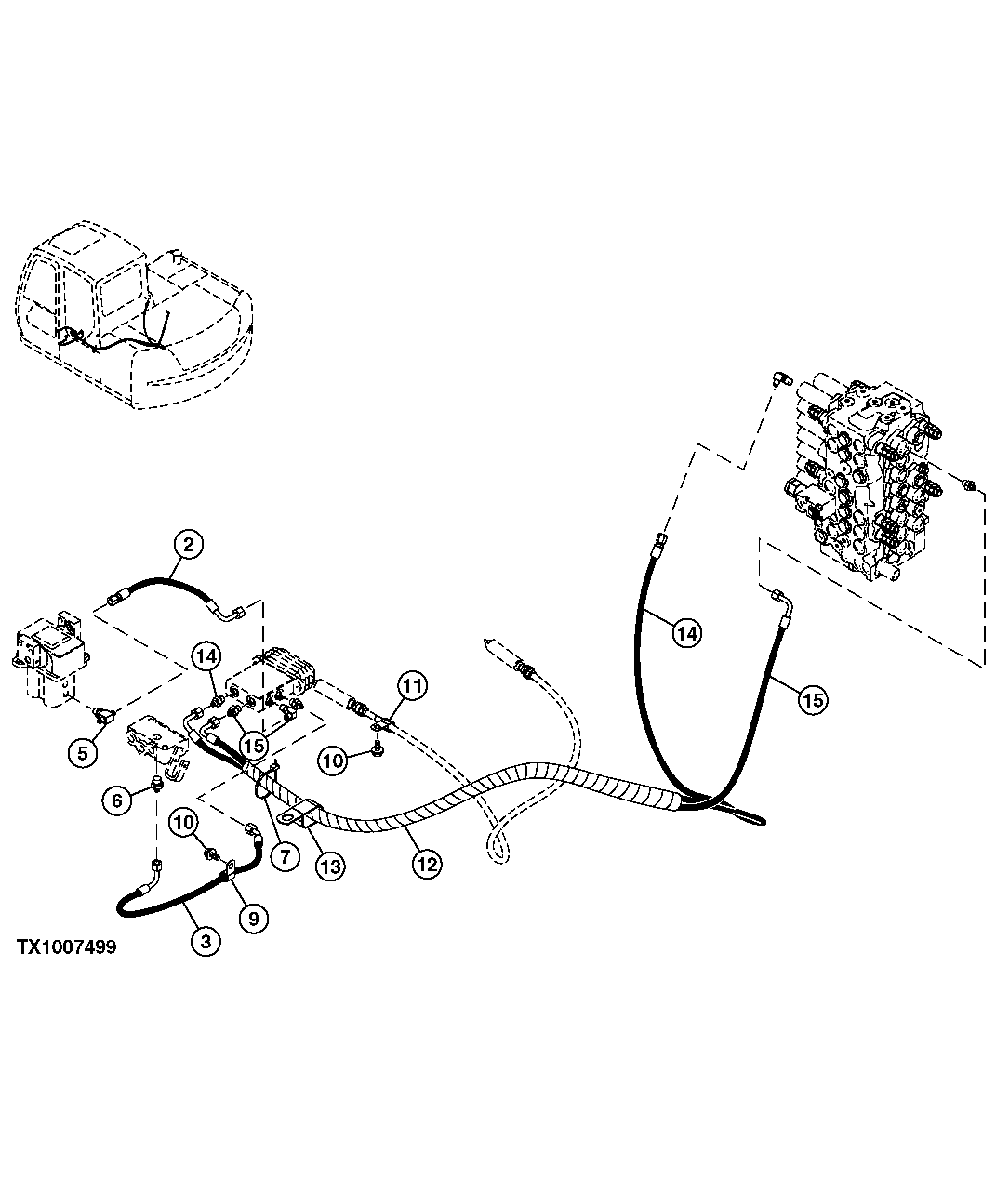

Запчасти John Deere 60C LC 238 - PILOT HOSES (CONTROL VALVE TO BLADE PILOT CONTROLLER) 3363 LINES, HOSES AND FITTINGS

2

4450544

Hydraulic Hose

1шт.

3

4450527

Hydraulic Hose

1шт.

5

A852522

Tee Fitting

1шт.

M800650

Packing

1шт.

6

A852132

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

7

H77698

Tie Band

1шт.

9

T28949

Clamp

(SUB FOR 4190274)

1шт.

10

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

T30367

Clamp

1шт.

12

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.

13

R50454

Clamp

(SUB FOR 4411911)

1шт.

14

4457105

Hydraulic Hose

1шт.

15

4450976

Hydraulic Hose

1шт.
