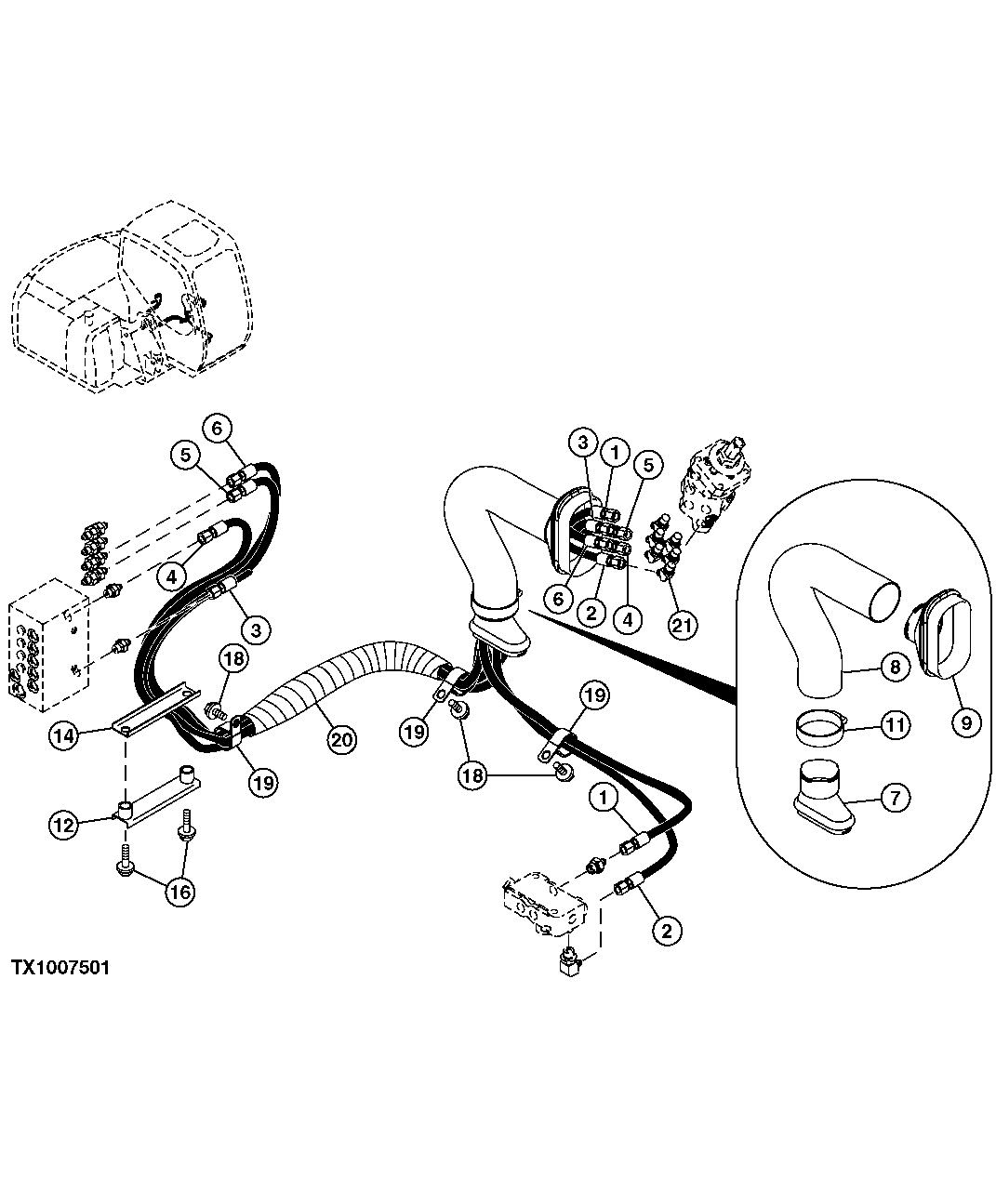

Запчасти John Deere 60C LC 235 - PILOT HOSES(LEFT PILOT CONTROLLER TO FLOW REGULATING MANIFOLD) 3363 LINES, HOSES AND FITTINGS

0

4154670

Elbow Fitting

(SUB FOR A852322, P67984 OR THA852322)

6шт.

M800650

Packing

1шт.

1

4449982

Hydraulic Hose

1шт.

2

4449985

Hydraulic Hose

1шт.

3

4449974

Hydraulic Hose

1шт.

4

4449975

Hydraulic Hose

1шт.

5

4449976

Hydraulic Hose

1шт.

6

4449978

Hydraulic Hose

1шт.

7

2046296

Bushing

1шт.

8

4351175

Hose

1шт.

9

2045998

Bushing

1шт.

11

4351774

Clamp

1шт.

12

9756997

Clamp

1шт.

14

4412666

Clamp

1шт.

16

19M8162

Screw

M10 X 40 (SUB FOR J021045)

2шт.

18

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

19

XCL-29

Hose Clamp

(SUB FOR 4190264 OR 4193848)

3шт.

20

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

1шт.
