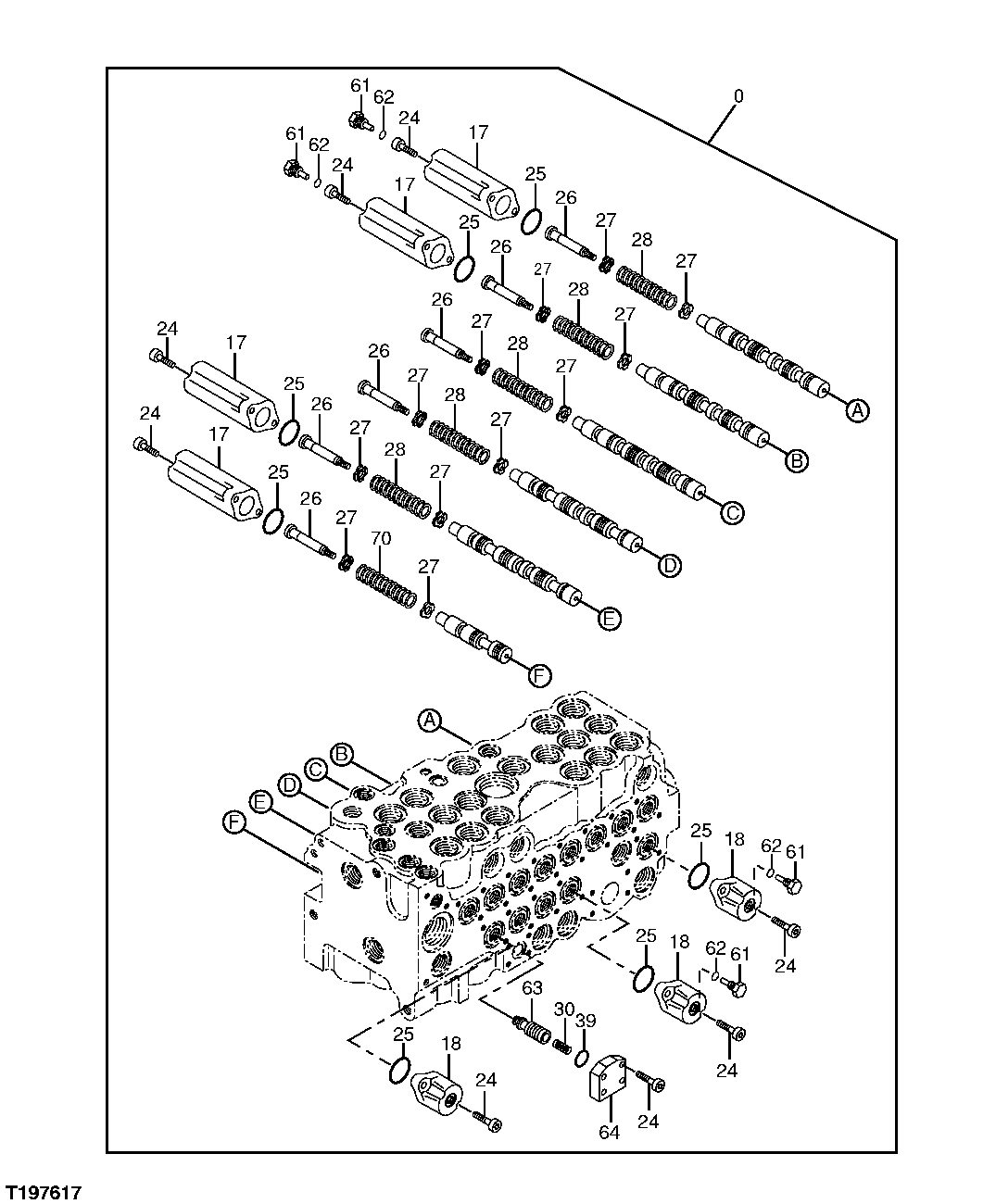

Запчасти John Deere 60C LC 195 - CONTROL VALVE (6-SPOOL) (STANDARD BOOM) 3362 CONTROL AND LOAD HOLDING VALVES

0

4446245

Hyd Actuated Control Valve

Additional Components Listed O n Previous and Following Pages

1шт.

17

Cap

0828204 NLA SUB 0852701

4шт.

0852701

Cap

4шт.

18

Cap

0828205 NLA SUB 1184611

4шт.

1184611

Cap

4шт.

24

12M7006

Lock Washer

6 mm SUB FOR 0455002

18шт.

19M7603

Screw

M6 X 20

18шт.

24M7105

Washer

6 X 12 X 1.600 mm

18шт.

25

970486

Packing

7шт.

26

0714403

Holder

6шт.

27

0332904

Retainer

12шт.

28

0332905

Spring

5шт.

30

0668007

Spring

1шт.

39

CH12329

Packing

SUB FOR 4506420

1шт.

61

0825203

Pipe Plug

4шт.

62

M800650

Packing

SUB FOR 957366

4шт.

63

0828201

Poppet

1шт.

64

0828202

Plate

1шт.

70

0828203

Spring

1шт.
