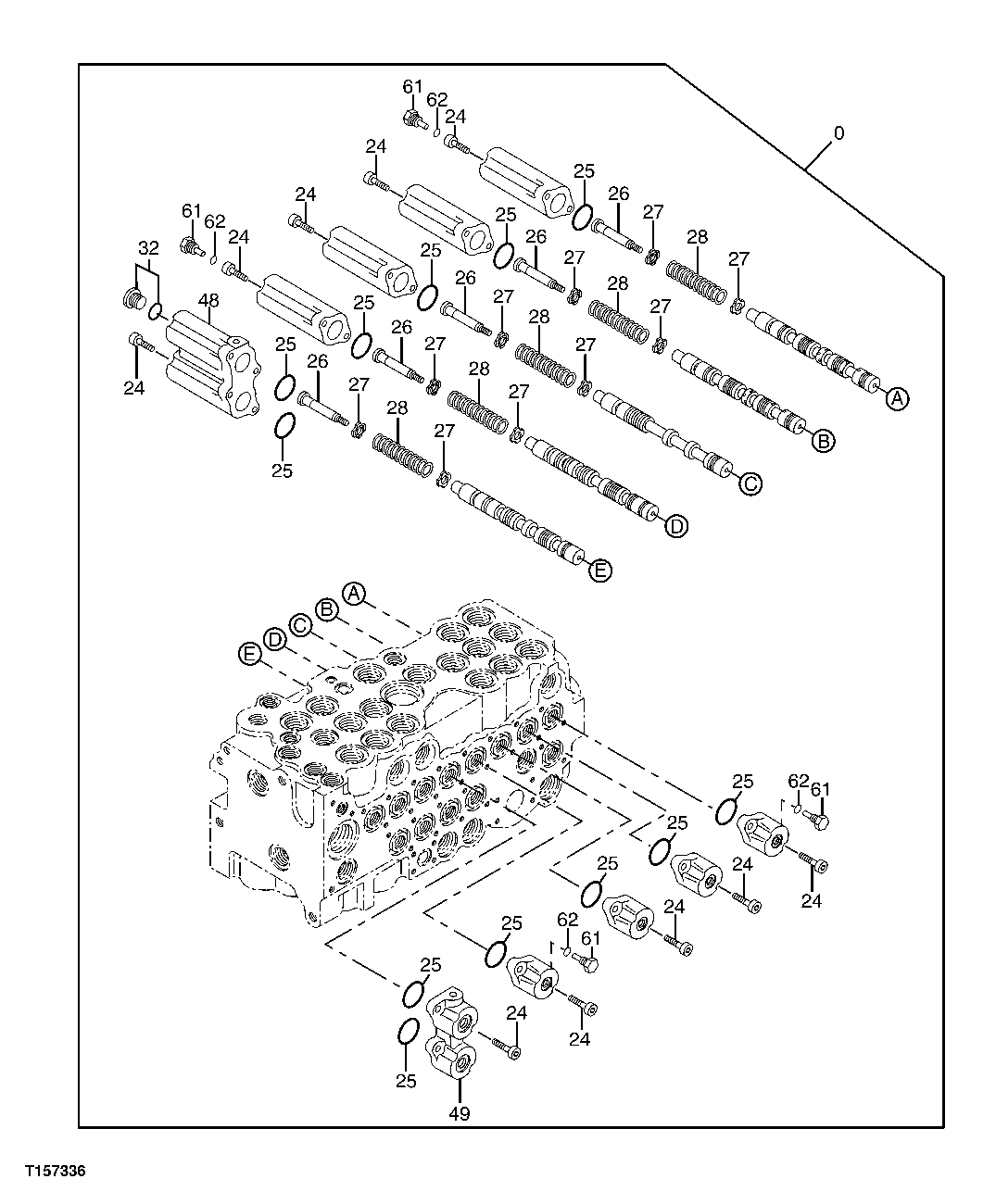

Запчасти John Deere 60C LC 193 - CONTROL VALVE (STANDARD BOOM) (5-SPOOL) 3362 CONTROL AND LOAD HOLDING VALVES

0

4446245

Hyd Actuated Control Valve

INCLUDES ALL PARTS ON THIS PAGE - ADDITIO NAL PARTS ON PRECEDING AND FOLLOWING PAGES

1шт.

24

19M7603

Screw

M6 X 20

24шт.

12M7006

Lock Washer

6 mm

24шт.

24M7105

Washer

6 X 12 X 1.600 mm

24шт.

25

970486

Packing

12шт.

26

0714403

Holder

5шт.

27

0332904

Retainer

10шт.

28

0332905

Spring

5шт.

32

0689405

Fitting Plug

1шт.

48

0825201

Cap

1шт.

49

0825202

Cap

1шт.

61

0825203

Pipe Plug

4шт.

62

M800650

Packing

(SUB FOR 957366)

4шт.
