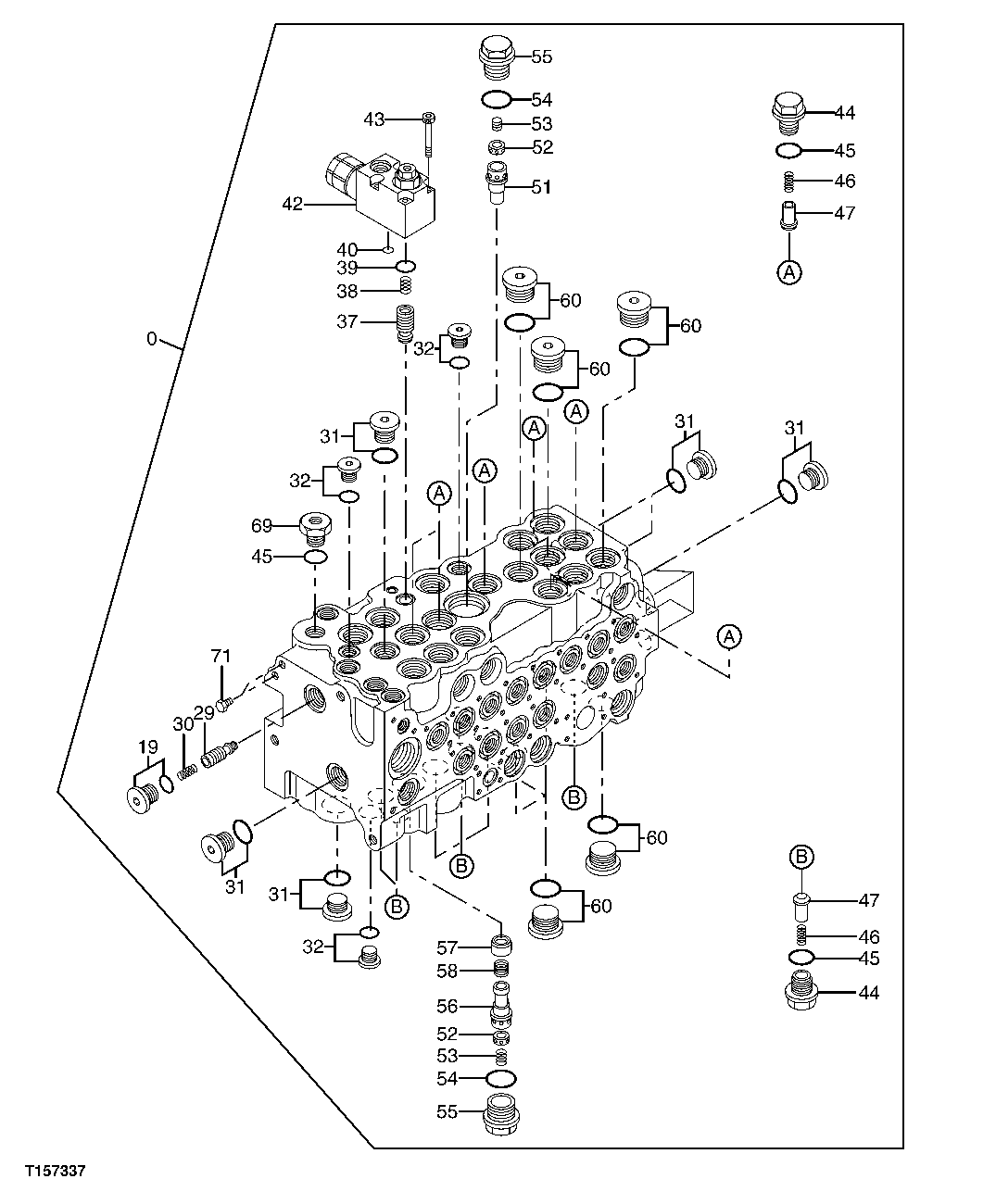

Запчасти John Deere 60C LC 192 - CONTROL VALVE (STANDARD BOOM) (SPRINGS, POPPETS AND PLUGS) 3362 CONTROL AND LOAD HOLDING VALVES

0

4446245

Hyd Actuated Control Valve

Includes All Parts On This Page - Additonal Parts On Following Pages

1шт.

19

0825101

Pipe Plug

1шт.

29

0825102

Poppet

1шт.

30

0668007

Spring

1шт.

31

0695007

Fitting Plug

INCLUDES CH11570

9шт.

CH11570

O-Ring

1шт.

32

0689405

Fitting Plug

3шт.

37

0714608

Poppet

1шт.

38

0714609

Spring

1шт.

39

CH12329

Packing

SUB FOR 4506420

1шт.

40

CH11568

Packing

SUB FOR 4506407

1шт.

42

0825106

Flow Control Hyd. Valve

SUB FOR 0825103

1шт.

43

0714404

Screw

4шт.

44

0714504

Fitting Plug

12шт.

45

4506418

O-Ring

13шт.

46

0225209

Spring

12шт.

47

0714503

Poppet

12шт.

51

0455111

Sleeve

1шт.

52

0103012

Poppet

2шт.

53

0103013

Spring

2шт.

54

AT318035

O-Ring

SUB FOR 4506424

2шт.

55

0714502

Fitting Plug

2шт.

56

0825104

Sleeve

1шт.

57

0455102

Poppet

1шт.

58

0332917

Spring

1шт.

60

0668108

Fitting Plug

INCLUDES 4506418

7шт.

4506418

O-Ring

7шт.

69

0375802

Pipe Plug

1шт.

71

0825105

Pipe Plug

2шт.
