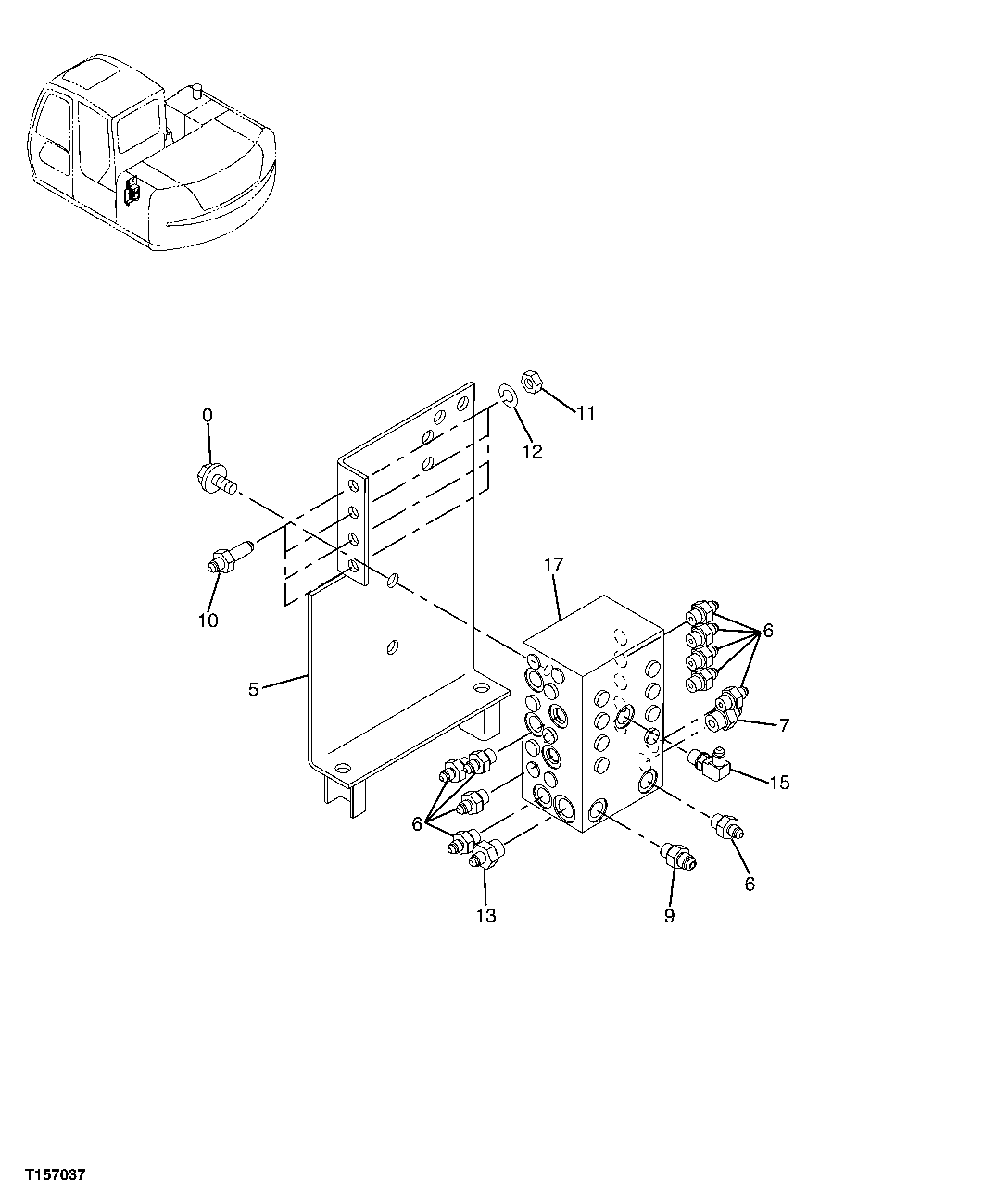

Запчасти John Deere 60C LC 190 - FLOW REGULATOR VALVE MANIFOLD (SN -011047) 3362 CONTROL AND LOAD HOLDING VALVES

0

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

5

8083088

Bracket

1шт.

6

A852122

Adapter Fitting

10шт.

M800650

Packing

1шт.

7

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

9

A852123

Adapter Fitting

1шт.

M800650

Packing

1шт.

10

4248117

Adapter Fitting

4шт.

11

14H1047

Nut

7/16"

4шт.

12

12H301

Lock Washer

1/2"

4шт.

13

A852132

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

15

4154670

Elbow Fitting

(SUB FOR A852322, P67984 OR THA852322)

1шт.

M800650

Packing

1шт.

17

4464222

Flow Control Hyd. Valve

1шт.
