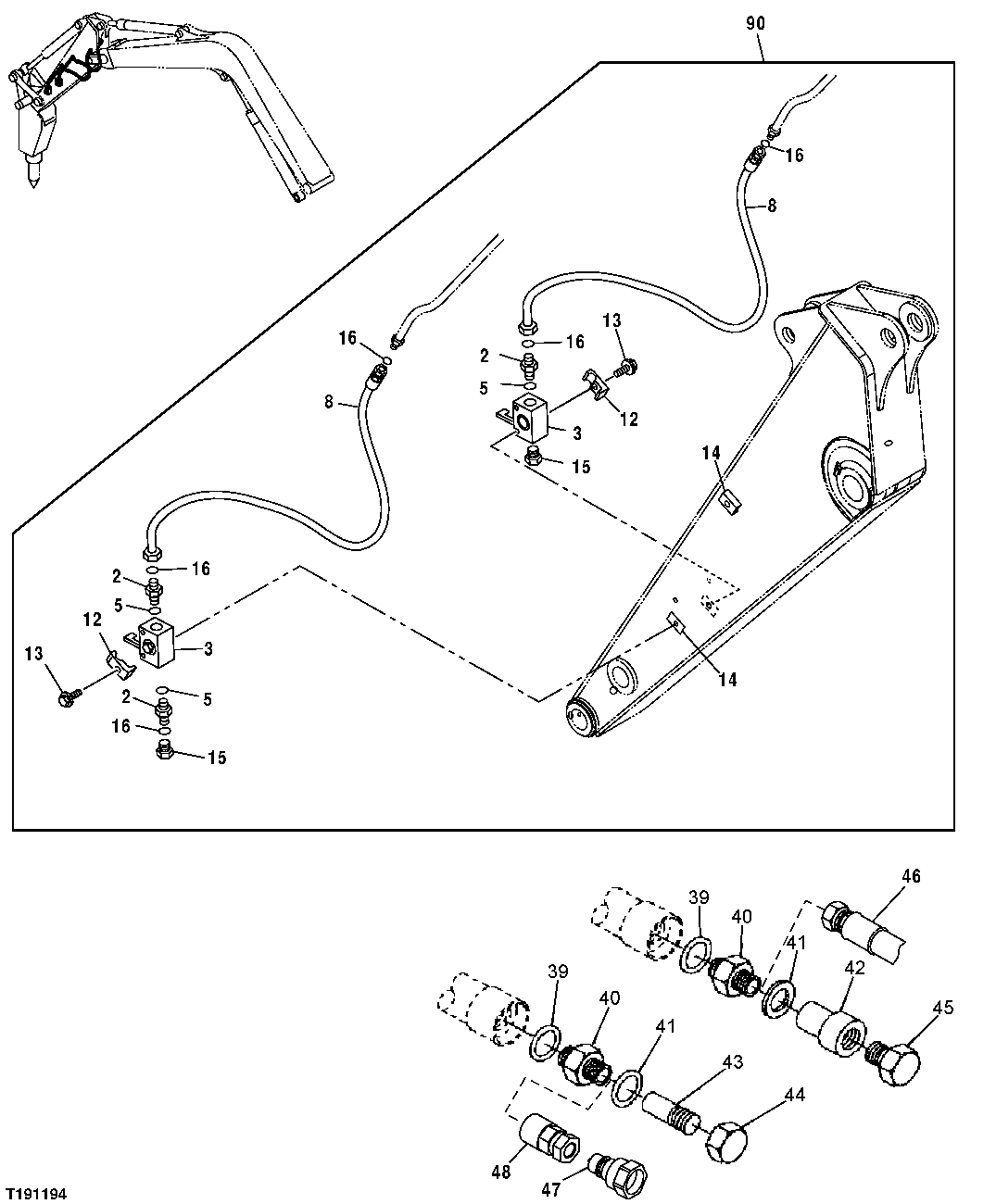

Запчасти John Deere 60C LC 173 - AUXILIARY HYDRAULIC LINE KIT (ARM LINES) 3360 HYDRAULIC SYSTEM

2

38H1215

Adapter Fitting

4шт.

3

AT197375

Ball Cock Valve

2шт.

5

U12547

O-Ring

2шт.

8

AT302490

Hydraulic Hose

(FOR USE WITH 2.12M ARM) (FOR 1.62M A RM, ALSO ORDER (2) AT303616) Fabricate

2шт.

AT303616

Hydraulic Hose

(NOT INCLUDED IN KIT) (FOR USE WITH 1.62M ARM ONLY) Fabricate

2шт.

12

4190126

Clamp

4шт.

13

19M7362

Cap Screw

M12 X 55

4шт.

24M7043

Washer

12 X 25 X 3 mm

4шт.

14

9735916

Channel

4шт.

15

38H1418

Fitting

2шт.

16

T77858

O-Ring

4шт.

39

U12547

O-Ring

2шт.

40

38H1179

Adapter Fitting

(ALSO ORDER T76938)(1" ORFS)

2шт.

38H1215

Adapter Fitting

(ALSO ORDER T77858)(3/4" ORFS)

2шт.

AT83306

Adapter Fitting

(1" SAE, MALE)

2шт.

R27267

Fitting

(3/4", 37°)

2шт.

T34433

Adapter Fitting

(1", 37°)

2шт.

41

R29936

O-Ring

2шт.

42

AT186111

Quick Coupler

(1" FEMALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NLA)

1шт.

43

AT186112

Quick Coupler

(1" MALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189409 NLA)

1шт.

44

AT186113

Cap

1шт.

45

AT186114

Plug

1шт.

46

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4" X 1"

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90° - 1 1/4" X 1"

2шт.

47

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16" SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16" SAE O-RING

2шт.

48

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16" SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16" SAE O-RING

2шт.

90

Field Installation Kit

(AUXILIARY HYDRAULIC LINE KIT) (INCLUDES ALL COMPONENTS NECESSARY TO ADD AUXILARY L INES) (ADDITIONAL COMPONENTS LISTED ON PRE VIOUS PAGES) (WHOLE GOODS) ( AT302485 NLA )

1шт.
