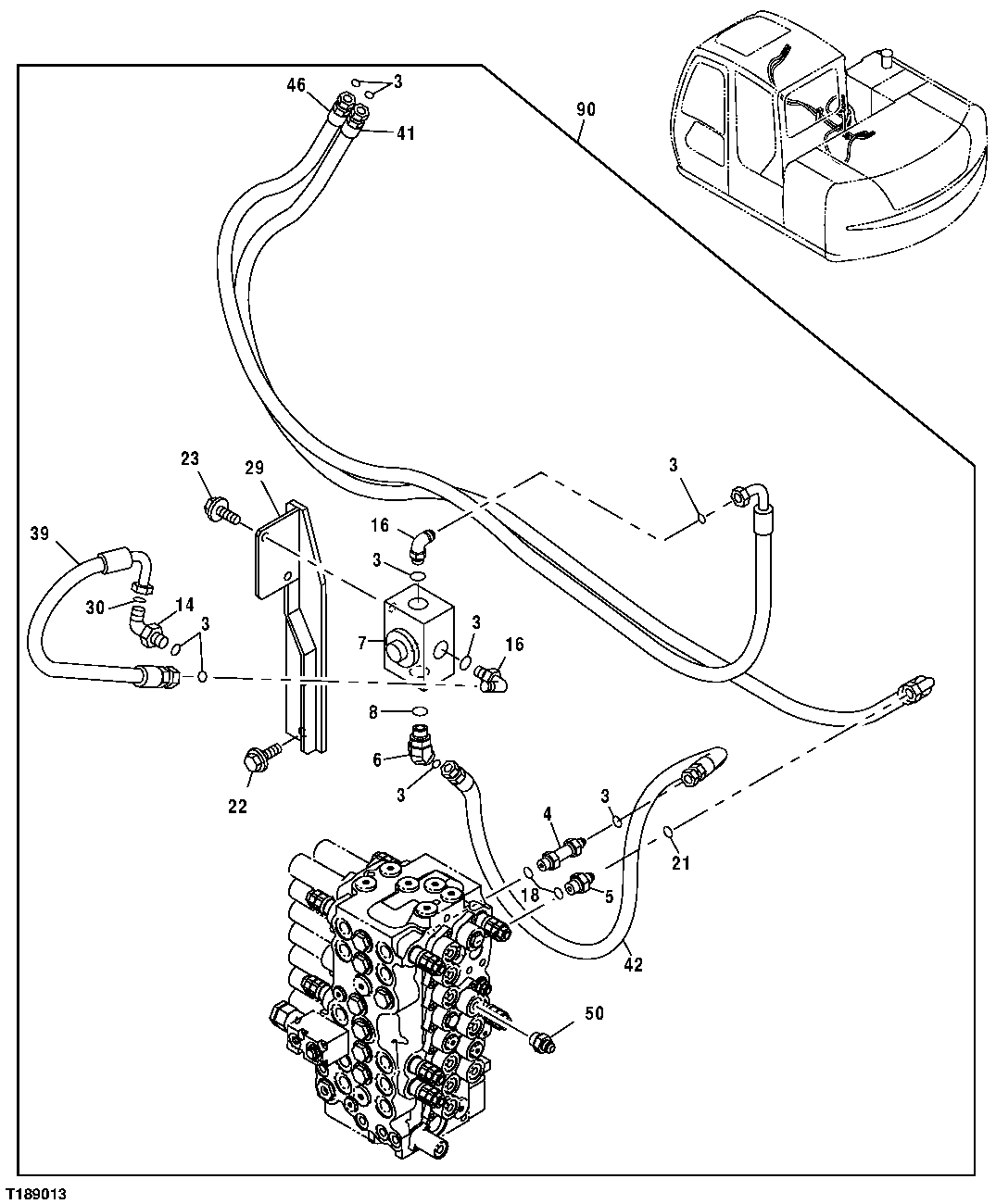

Запчасти John Deere 60C LC 171 - AUXILIARY HYDRAULIC LINE KIT 3360 HYDRAULIC SYSTEM

3

T77858

O-Ring

9шт.

4

4197532

Adapter Fitting

1шт.

Adapter Fitting

4235035 NLA

1шт.

5

4189602

Fitting

1шт.

6

PMH2406

Fitting

1шт.

7

4261540

Flow Control Hyd. Valve

1шт.

8

TH101926

O-Ring

1шт.

14

A853366

Elbow Fitting

1шт.

16

4202113

Elbow Fitting

2шт.

18

4506418

O-Ring

2шт.

21

T77932

O-Ring

1шт.

22

19M7788

Screw

M12 X 25

1шт.

28

19M7784

Screw

M10 X 20

2шт.

29

AT302575

Bracket

1шт.

30

AT318035

O-Ring

SUB FOR 4506424

1шт.

39

AT302489

Hydraulic Hose

Fabricate

1шт.

41

AT302486

Hydraulic Hose

Fabricate

1шт.

42

AT302487

Hydraulic Hose

1шт.

46

AT302488

Hydraulic Hose

Fabricate

1шт.

50

4394262

Pressure Relief Valve

2шт.

90

Field Installation Kit

AUXILIARY HYDRAULIC LINE KIT, INCLUDES A LL COMPONENTS NECESSARY TO ADD AUXILIARY LINES, ADDITIONAL COMPONENTS LISTED ON FO LLOWING PAGES; WHOLE GOODS AT302485 NLA

1шт.
