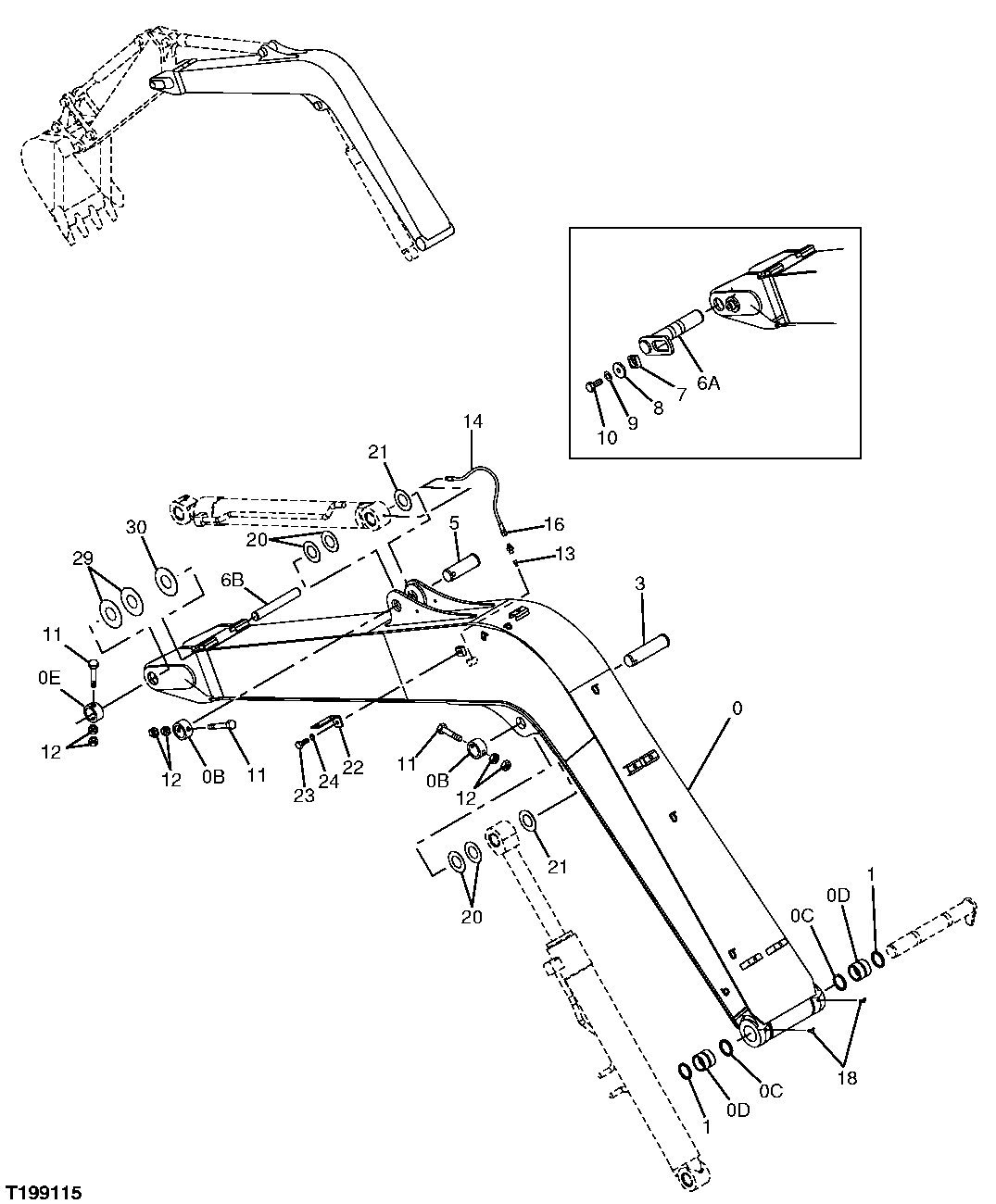

Запчасти John Deere 60C LC 164 - STANDARD BOOM, 3.72M 3344 BOOM

0

7039607

Excavator Boom

1шт.

0B

4434950

Stop

2шт.

0C

TH105979

Seal

2шт.

0D

4445478

Bushing

2шт.

0E

4434951

Stop

(UNITS BUILT AFTER MARCH 2002)

1шт.

1

TH105979

Seal

2шт.

3

3055536

Pin Fastener

1шт.

5

3076942

Pin

1шт.

6A

8082132

Pin Fastener

(UNITS BUILT BEFORE APRIL 2002)

1шт.

6B

3096626

Pin

(UNITS BUILT AFTER MARCH 2002)

1шт.

7

4424425

Spacer

(UNITS BUILT BEFORE APRIL 2002)

1шт.

8

4426128

Washer

(UNITS BUILT BEFORE APRIL 2002)

1шт.

9

J257218

Lock Washer

(UNITS BUILT BEFORE APRIL 2002)

1шт.

10

T116332

Bolt

(UNITS BUILT BEFORE APRIL 2002)

1шт.

11

4435123

Pin Fastener

2шт.

4435123

Pin Fastener

(UNITS BUILT AFTER MARCH 2002)

1шт.

12

14M7276

Nut

M16

4шт.

14M7276

Nut

M16 (UNITS BUILT AFTER MARCH 2002)

2шт.

13

TH100074

Lubrication Fitting

1шт.

14

4129123

Hydraulic Hose

1шт.

16

X4F3P4S

Adapter Fitting

(SUB FOR 94-1301)

1шт.

18

T116334

Lubrication Fitting

2шт.

20

4374459

Plate

4шт.

21

4374437

Plate

2шт.

22

4224631

Angle

1шт.

23

J901425

Cap Screw

1шт.

24

12H317

Lock Washer

9/16"

1шт.

29

4394384

Plate

2шт.

30

4394385

Plate

1шт.
