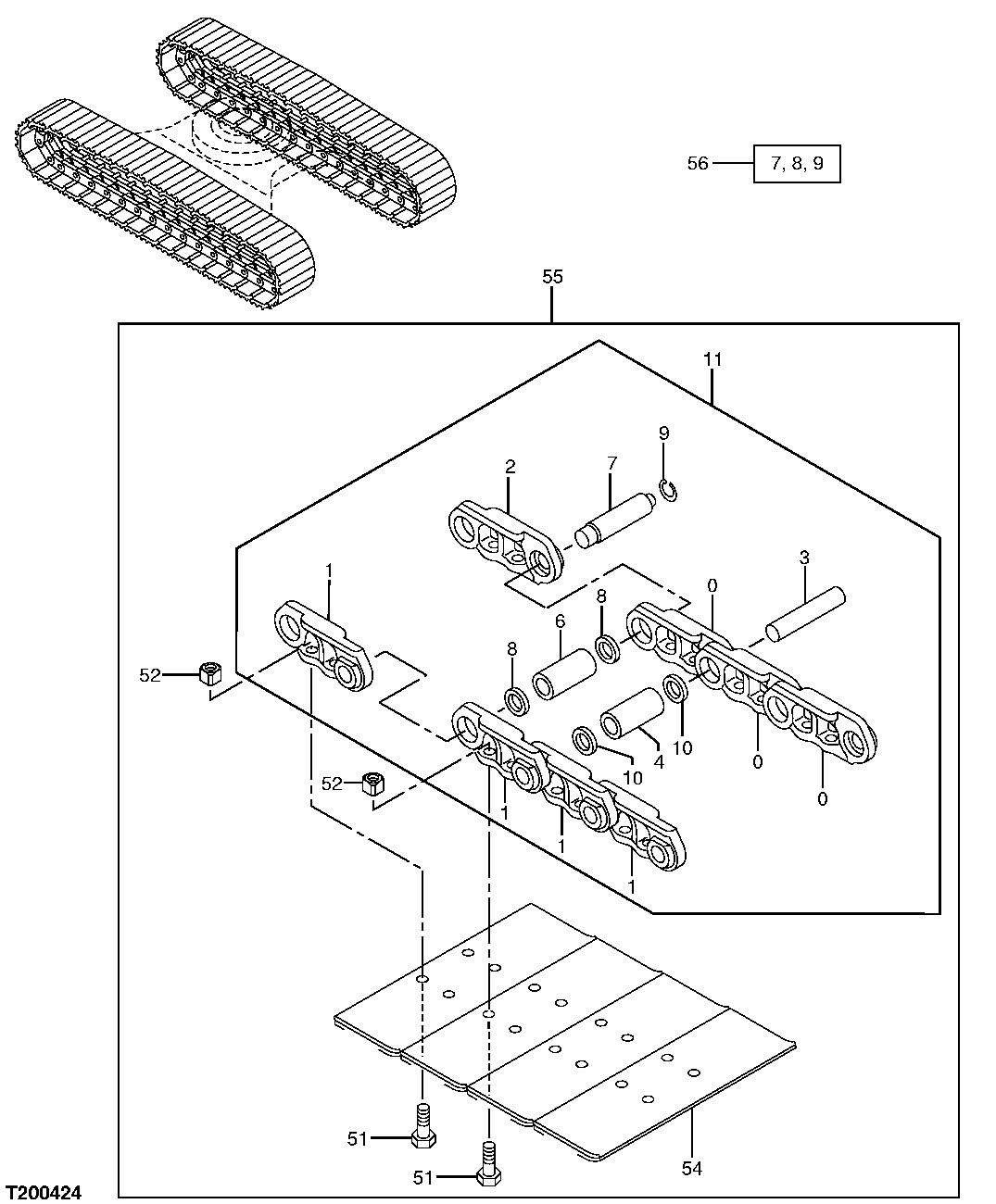

Запчасти John Deere 60C LC 18 - TRACK CHAIN LINKS AND SHOES 0130 TRACK SYSTEMS

0

T211424

Track Link

RH, SUB FOR 1023762

37шт.

1

T211425

Track Link

LH, SUB FOR 1023763

38шт.

2

T211426

Master Track LINK-RH

1шт.

3

T211427

Pin

SUB FOR 4378885

37шт.

4

T211428

Track Bushing

SUB FOR 3077925

37шт.

6

T211429

Master Track Bushing

SUB FOR 3077926

1шт.

7

T211430

Master Track Pin

SUB FOR 4382098

1шт.

8

T211431

Spacer

SUB FOR 4378888 Master Link Bushing

2шт.

9

T211432

Snap Ring

SUB FOR 4382100

1шт.

10

T211433

Seal

SUB FOR 4453704 AND 4378886

74шт.

11

AT315265

Track Chain W/O Shoes

SUB FOR 9156478 Order Dura-Trax™ Direct

1шт.

51

T211434

Track Bolt

152шт.

52

T211435

Nut

SUB FOR 4262587

152шт.

54

T211423

Triple Bar Shoe

600 mm, SUB FOR 2041367

38шт.

T211422

Flat Shoe

450 mm

38шт.

FYD00007619

Flat Shoe

SUB FOR 4405320 Rubber Pad Shoe

38шт.

55

AT315266

Track Assembly With Shoes

600 mm, NLA Order Components

1шт.

AT315267

Track Assembly With Shoes

450 mm, NLA Order Components

1шт.
