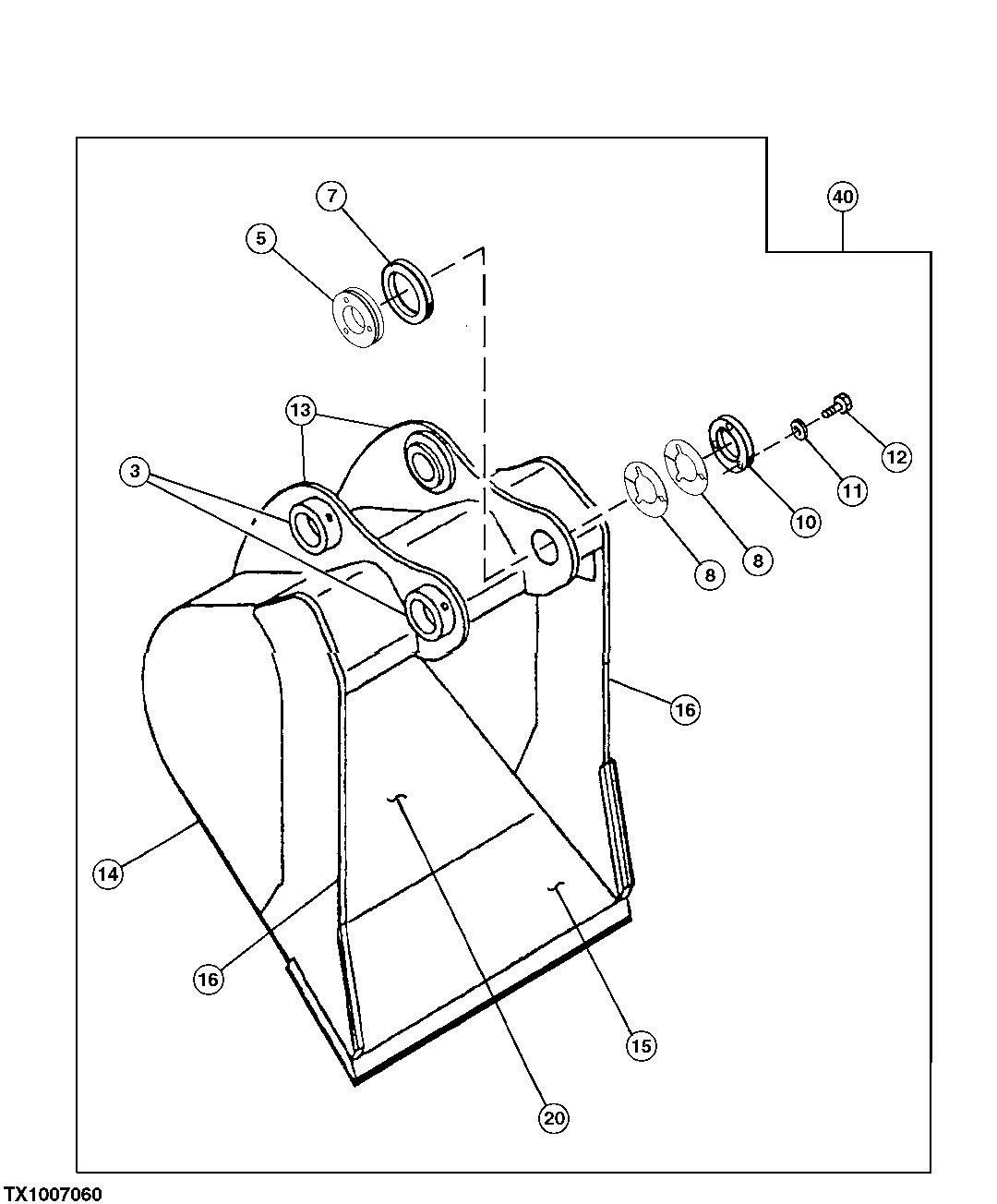

Запчасти John Deere 60C LC 142 - HEAVY DUTY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

3

T115092

Bushing

2шт.

5

AT184010

Boss

(3 TAPPED HOLES)

1шт.

7

AT184011

Boss

1шт.

8

AT184008

Shim

(3 CLEARANCE HOLES)

7шт.

10

AT184009

Plate

1шт.

11

24M7047

Washer

13 X 24 X 2.500 mm

3шт.

12

19M8348

Cap Screw

M12 X 65

3шт.

13

621899

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304222

Plate

(A) (RH / LH)

2шт.

15

AT163452

Cutting Edge

(CTL)

ARшт.

16

304221

Vertical Cutter

(A) (RH / LH) (SIDE CUTTERS)

2шт.

20

603517

Moldboard

(A) (18 INCH/0.19 CUBIC YARD BUCKET)

1шт.

603520

Moldboard

(A) (24 INCH/0.27 CUBIC YARD BUCKET)

1шт.

603522

Moldboard

(A) (30 INCH/0.36 CUBIC YARD BUCKET)

1шт.

603523

Moldboard

(A) (36 INCH/0.45 CUBIC YARD BUCKET)

1шт.

603524

Moldboard

(A) (42 INCH/0.65 CUBIC YARD BUCKET)

1шт.

40

Excavator Bucket

(B) ( AT182228 NLA) (1 8 INCH/0.19 CUBIC YARD)

1шт.

Excavator Bucket

(B) ( AT182229 NLA) (24 INCH/ 0.27 CUBIC YARD) (SUB AT332653)

1шт.

Excavator Bucket

(B) ( AT182230 NLA) (30 INCH/ 0.36 CUBIC YARD) (SUB AT332654)

1шт.

Excavator Bucket

(B) ( AT182231 NLA) (36 INCH/ 0.45 CUBIC YARD) (SUB AT332655)

1шт.

Excavator Bucket

(B) ( AT182232 NLA) (4 2 INCH/0.65 CUBIC YARD)

1шт.
