16 - REPLACEMENT UPPER TRACK CHAIN ROLLER

Запчасти John Deere 60C LC 16 - REPLACEMENT UPPER TRACK CHAIN ROLLER 0130 TRACK SYSTEMS

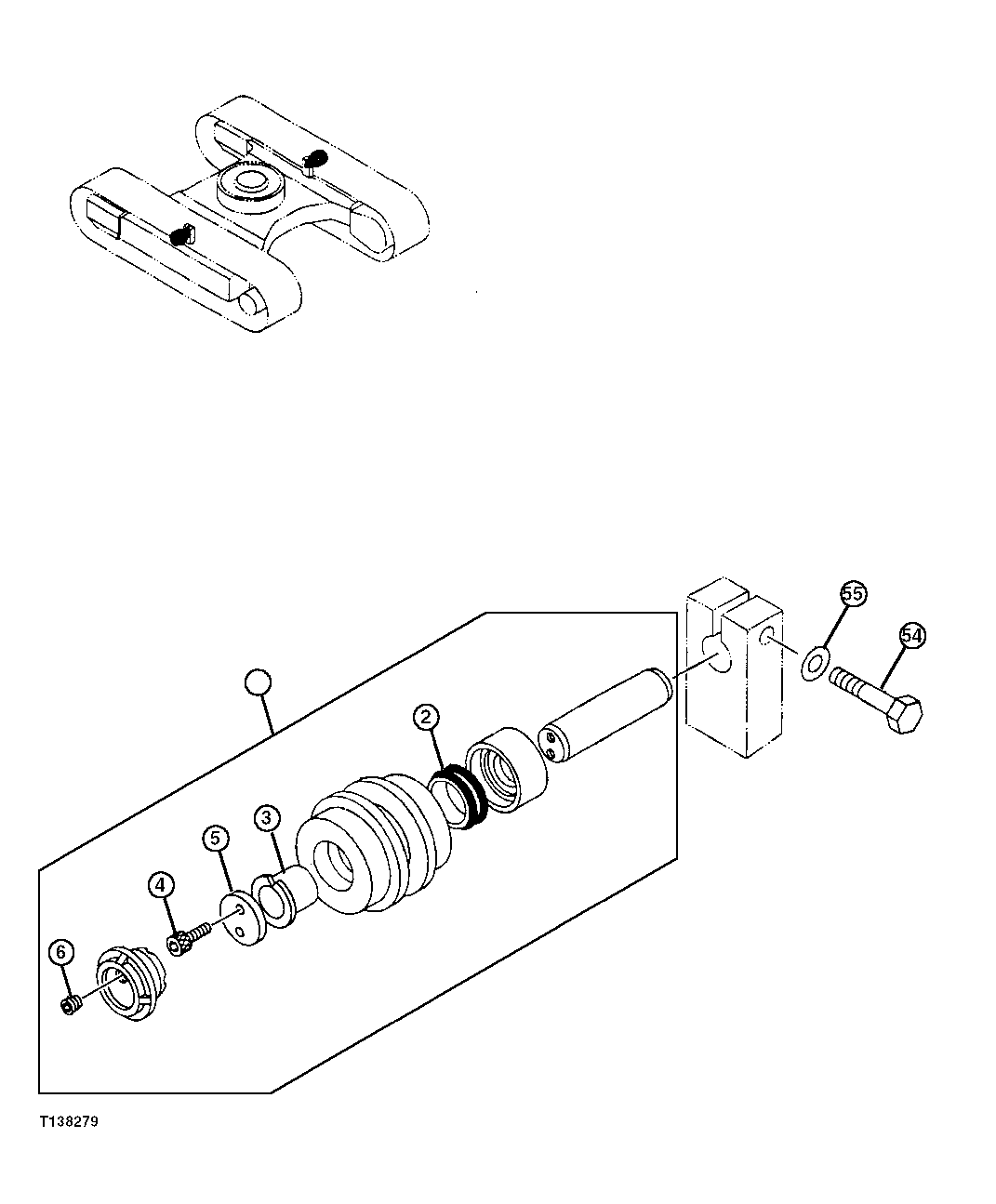

Схема запчастей John Deere 60C LC - 16 - REPLACEMENT UPPER TRACK CHAIN ROLLER 0130 TRACK SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Roller

(SUB AT315315)(ONE EACH SIDE OF UNIT) UPPER ( AP34340 NLA)

2шт.

2

AT180383

Seal

(SUB FOR P66385)

1шт.

3

P66384

Bushing

1шт.

4

P66387

Bolt

2шт.

5

P66386

Washer

1шт.

6

P66388

Plug

1шт.

54

19M9172

Cap Screw

M14 X 70 (SUB FOR P65872 )(ONE EACH SIDE OF UNIT)

2шт.

55

J222014

Washer

(SUB FOR AT200011)(ONE EACH SIDE OF UNIT)

2шт.
