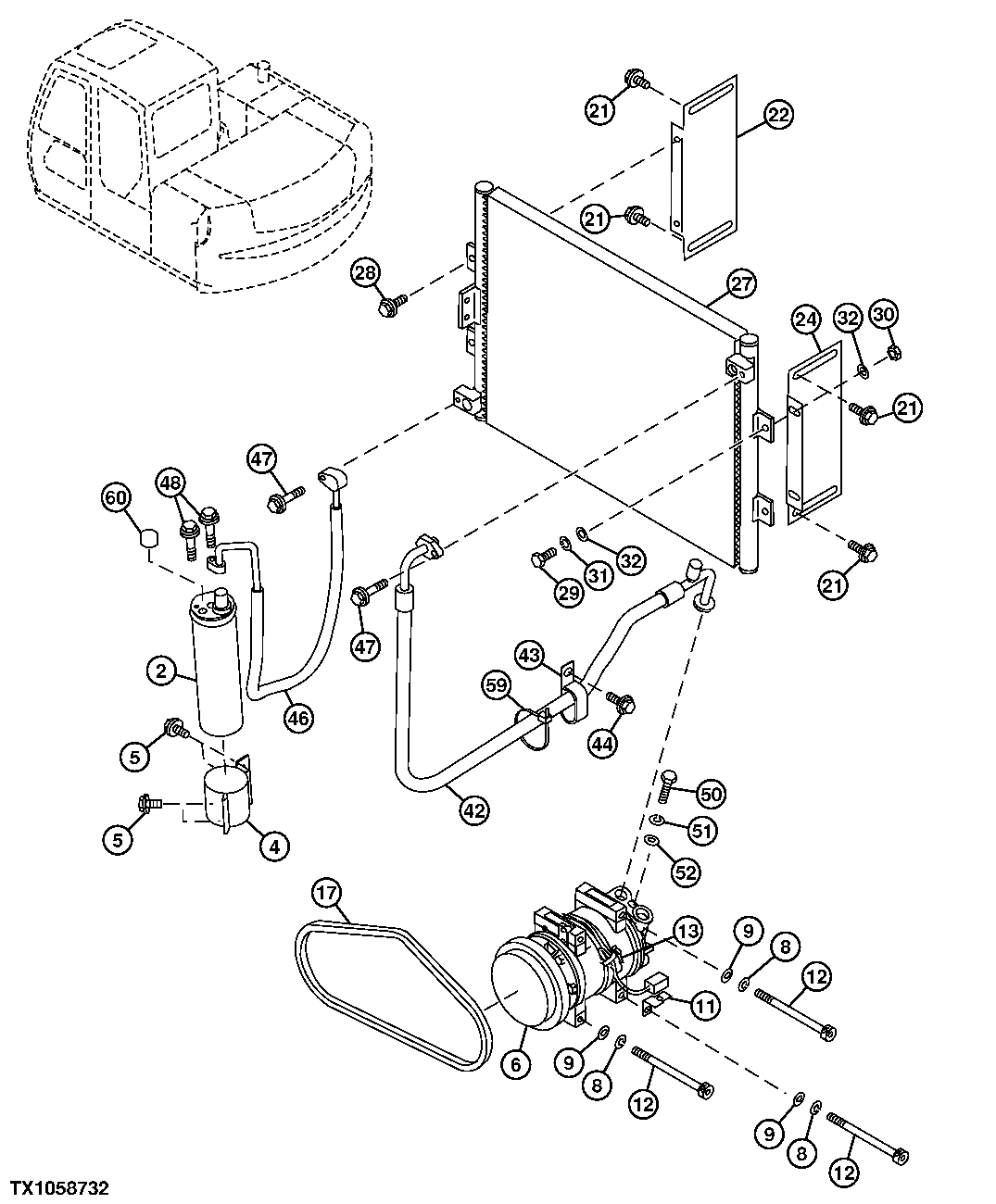

Запчасти John Deere 60C LC 112 - AIR CONDITIONER COMPRESSOR, CONDENSOR AND DRYER 1830 HEATING AND AIR CONDITIONING

2

4448179

Receiver-Dryer

INCLUDES HIGH/LOW PRESSURE SWITCH

1шт.

4

4460399

Bracket

1шт.

5

19M7077

Cap Screw

M6 X 20

4шт.

6

4456130

Compressor

SUB FOR 4425700

1шт.

8

Washer

12M7065 NLA

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

11

4355515

Bracket

1шт.

12

J780800

Bolt

4шт.

13

R44302

Tie Band

SUB FOR 4326365

1шт.

17

4612876

V-Belt

SUB FOR 4449870

1шт.

21

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

22

8084192

Bracket

1шт.

24

3091310

Bracket

1шт.

27

4445865

Vapor Condenser

1шт.

28

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

29

19M7407

Cap Screw

M8 X 25

2шт.

30

14M7273

Nut

M8

2шт.

31

Washer

12M7065 NLA

2шт.

32

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

42

4448902

Refrigerant Hose

1шт.

43

R50454

Clamp

SUB FOR 4192034

1шт.

44

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

46

4455962

Refrigerant Hose

1шт.

47

19M8008

Cap Screw

M8 X 35 SUB FOR J020835

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

48

19M7874

Cap Screw

M6 X 30 SUB FOR J020630

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12H302

Lock Washer

1/4"

2шт.

50

19M8260

Cap Screw

M10 X 40

1шт.

51

12M7066

Lock Washer

10 mm

1шт.

52

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

59

H77698

Tie Band

5шт.

60

4709907

Switch

High/Low Pressure

1шт.
