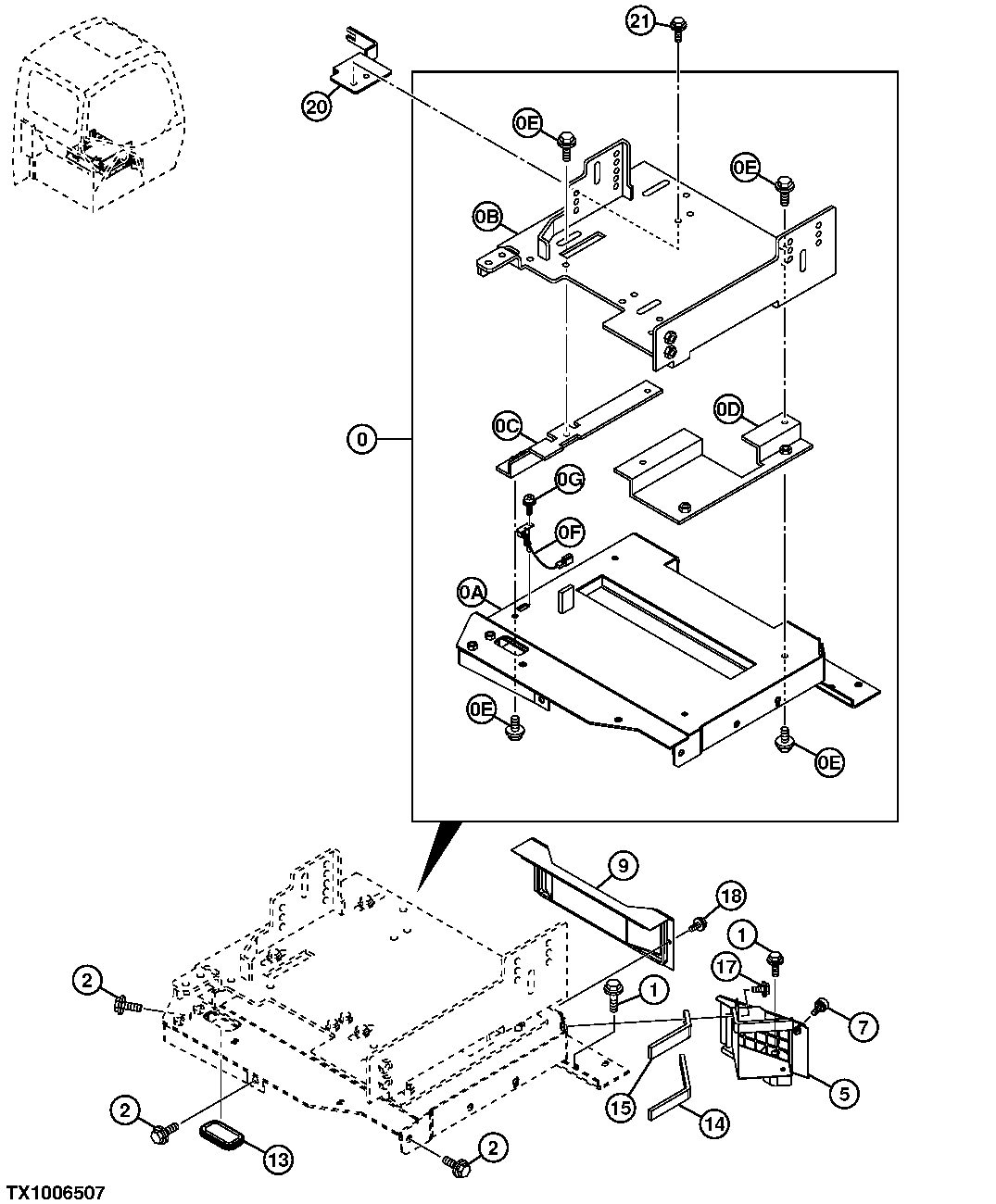

Запчасти John Deere 60C LC 109 - Suspension Seat Base 1821 SEAT AND SEAT BELT

0

Stand

SUSPENSION SEAT, 9210643 NLA, FURNISH COMPONENTS

1шт.

0A

6019448

Stand

1шт.

0B

6020732

Base

1шт.

0C

8086857

Bracket

LH

1шт.

0D

8086858

Bracket

RH

1шт.

0E

19M7402

Cap Screw

M10 X 25 SUB FOR J271025 OR J901025

8шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

8шт.

0F

4448925

Sensor

1шт.

0G

21M7394

Screw

M3 X 10 SUB FOR J460310, AL SO ORDER 24H1914 AND 12H233

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

1

19M7662

Cap Screw

M10 X 30 SUB FOR J271030 OR J901030, J271030 NLA

4шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

4шт.

2

19M7402

Cap Screw

M10 X 25 SUB FOR J271025 OR J901025

3шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

3шт.

5

7039100

Grille

1шт.

7

4446097

Knob

1шт.

9

8081502

Cover

1шт.

13

4445861

Bushing

1шт.

14

4455711

Isolator

1шт.

15

4455714

Isolator

1шт.

17

19M7077

Cap Screw

M6 X 20 SUB FOR J260620 OR J900620

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR A590106

1шт.

18

19M7077

Cap Screw

M6 X 20 SUB FOR J260620 OR J900620, J260620 NLA

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR A590106

2шт.

20

8086907

Bracket

1шт.

21

19M7077

Cap Screw

M6 X 20 SUB FOR J260620 OR J900620, J260620 NLA

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR A590106

2шт.
