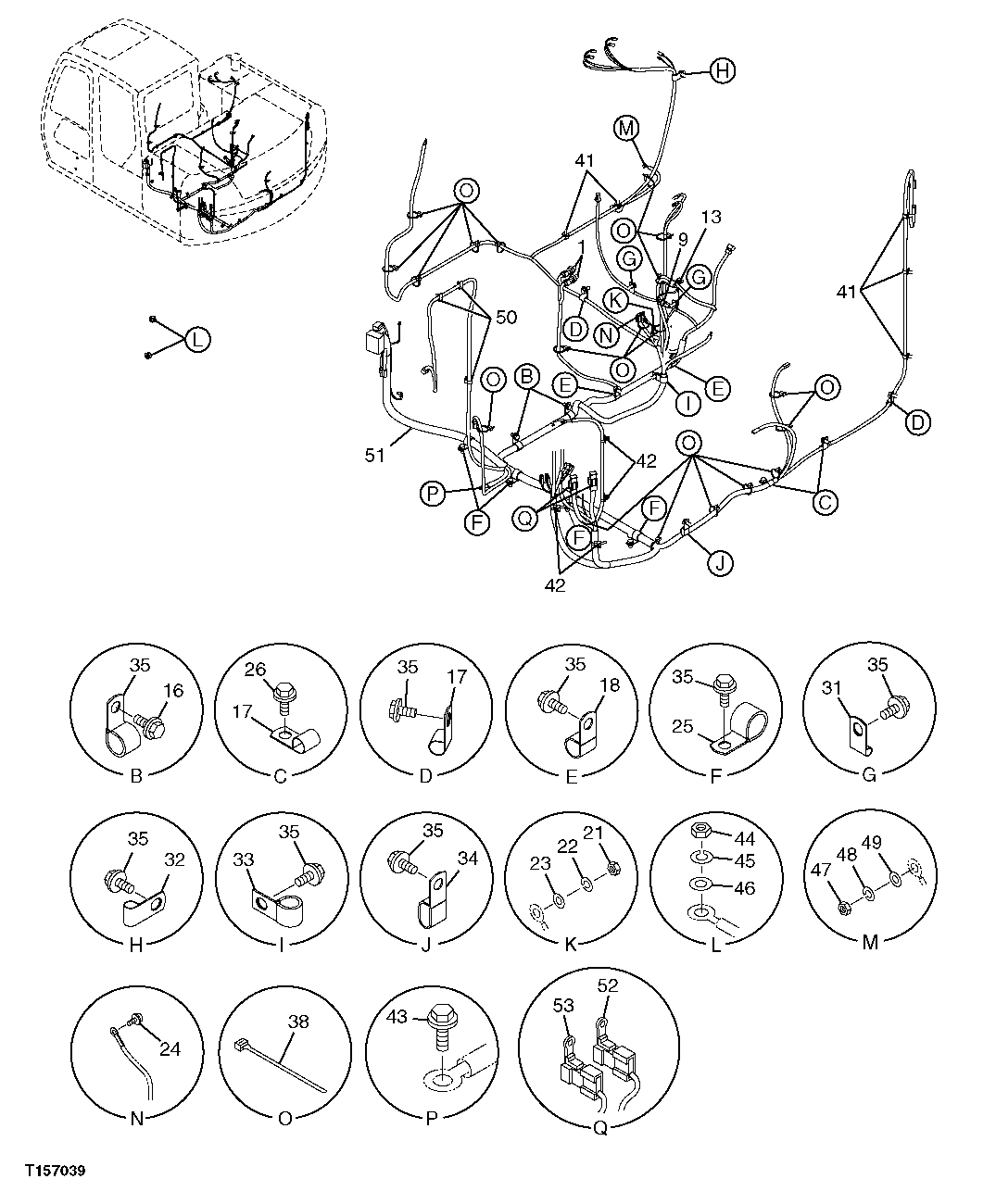

Запчасти John Deere 60C LC 67 - MACHINE WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

1

4436535

Sensor

DIG/SWING AND PROPEL PRESSURE SENSOR

1шт.

9

4436537

Sensor

(COOLANT TEMPERATURE SENSOR)

1шт.

13

H77698

Tie Band

1шт.

16

T24432

Clamp

2шт.

17

R73384

Clamp

(SUB FOR 4190253)

4шт.

18

T28949

Clamp

(SUB FOR 4190274)

2шт.

21

14M7297

Nut

M5

1шт.

22

12M7064

Lock Washer

5 mm

1шт.

23

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

24

19M7700

Cap Screw

M5 X 10

1шт.

12M7064

Lock Washer

5 mm (SUB FOR 4055311, M88199)

1шт.

25

R72659

Clamp

(SUB FOR TH108594 OR 4235654)

4шт.

26

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

31

T30367

Clamp

2шт.

32

AH79175

Clip

(SUB FOR 4190272)

1шт.

33

T28949

Clamp

(SUB FOR 4190273)

1шт.

34

M45242

Clip

(SUB FOR 4190292)

1шт.

35

19M7938

Cap Screw

M10 X 20

15шт.

12M7066

Lock Washer

10 mm

15шт.

38

H77698

Tie Band

21шт.

41

4449250

Clip

5шт.

42

4254600

Clip

4шт.

43

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

44

14M7274

Nut

M10

2шт.

45

12M7066

Lock Washer

10 mm

2шт.

46

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

47

14M7272

Nut

M6 (SUB FOR 14M7027)

1шт.

48

12M7006

Lock Washer

6 mm

1шт.

49

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

50

4254600

Clip

3шт.

51

0004062

Wiring Harness

(SEE DTAC SOLUTION FOR R EPAIR KIT AND CONNECTORS)

1шт.

52

4423418

Fuse

1шт.

53

4315323

Fuse

1шт.

54

4331898

Fuse

(45 AMP) (NOT ILLUSTRATED)

1шт.
