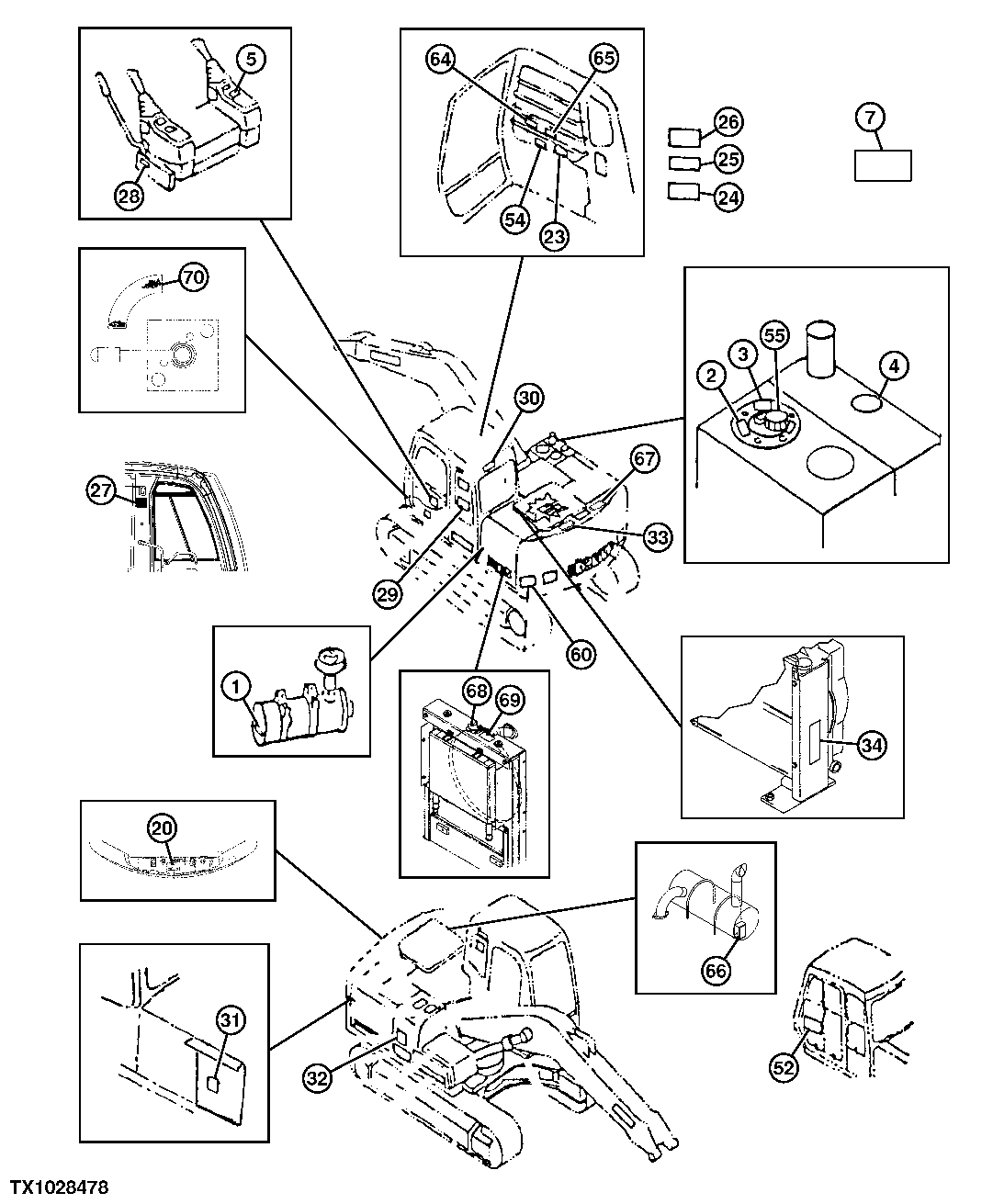

Запчасти John Deere 60C LC 63 - DECALS AND LABELS (SPANISH) 1322 DECALS AND TRADEMARKS

1

T222760

Label

(DRY AIR CLEANER)

1шт.

2

T222806

Label

(PUMP BLEED INFORMATION)

1шт.

3

T102620

Label

(HYDRAULIC OIL)

1шт.

4

T127575

Label

(DIESEL ONLY)

1шт.

5

Label

(IGNITION KEY SWITCH) (T222840 NLA)

1шт.

7

T222896

Label

(LIFT CHART) (WITH OFFSET LEVERS)

1шт.

20

T235106

Label

Engine Oil Fill

1шт.

23

T222941

Label

Operational Engine Start/Stop

1шт.

24

T162754

Safety Sign

(SUB FOR (1) T146908, THIS APPLICATI ON) (SUB FOR T146908, THIS APPLICATIO N)(CAUTION) (READ OPERATOR'S MANUAL)

1шт.

25

T222823

Safety Sign

WARNING (CRUSHING ARTICULATION)

1шт.

26

T222832

Label

(DANGER - ELECTROCUTION)

1шт.

27

T387695X63

Label

(IMPORTANT - BREAK WINDOW FOR SECONDARY EXIT) SUB FOR T222928

1шт.

28

T222834

Label

(SUB FOR T138886)(HYDRAULIC L OCKOUT) (SUB FOR (1) T138886)

1шт.

29

T222878

Label

Lift Capacity

1шт.

30

T190803

Label

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T233269

Label

(SUB FOR T191325, T208018 OR T222739 )(PERIODIC MAINTENANCE) (SUB FOR (1) T191325, (1) T208018 OR (1) T222739)

1шт.

32

T222778

Label

(IMPORTANT - OIL LEVEL) (IN SIDE RIGHT PUMP COMPARTMENT)

1шт.

33

T146106

Safety Sign

(SUB FOR (1) T146103) Bypass Start

1шт.

34

T222776

Label

(IMPORTANT - RADIATOR)

1шт.

52

T222766

Label

(VANDAL PROTECTION COVER LOCATIONS)

1шт.

54

T201547

Label

(SUB FOR T159842 AND T159841)(OPERATOR PAT TERN) (SUB FOR (1) T159842 AND (1) T159841)

1шт.

55

T190802

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

60

T222787

Label

(WARNING - STAY CLEAR)

2шт.

64

T222955

Label

(BLADE OPERATION)

1шт.

65

T222957

Label

BOOM (WITH OFFSET LEVERS)

1шт.

66

T222808

Safety Sign

(MUFFLER) (WARNING - HOT SURFACE)

1шт.

67

T187759

Label

(WARNING, FAN GUARD)

1шт.

68

T181296

Label

RADIATOR CAP

1шт.

69

T222793

Label

CAUTION - RADIATOR CAP

1шт.

70

T228108

Label

PATTERN CHANGER (PATTERN SELECTOR VALVE)

1шт.
