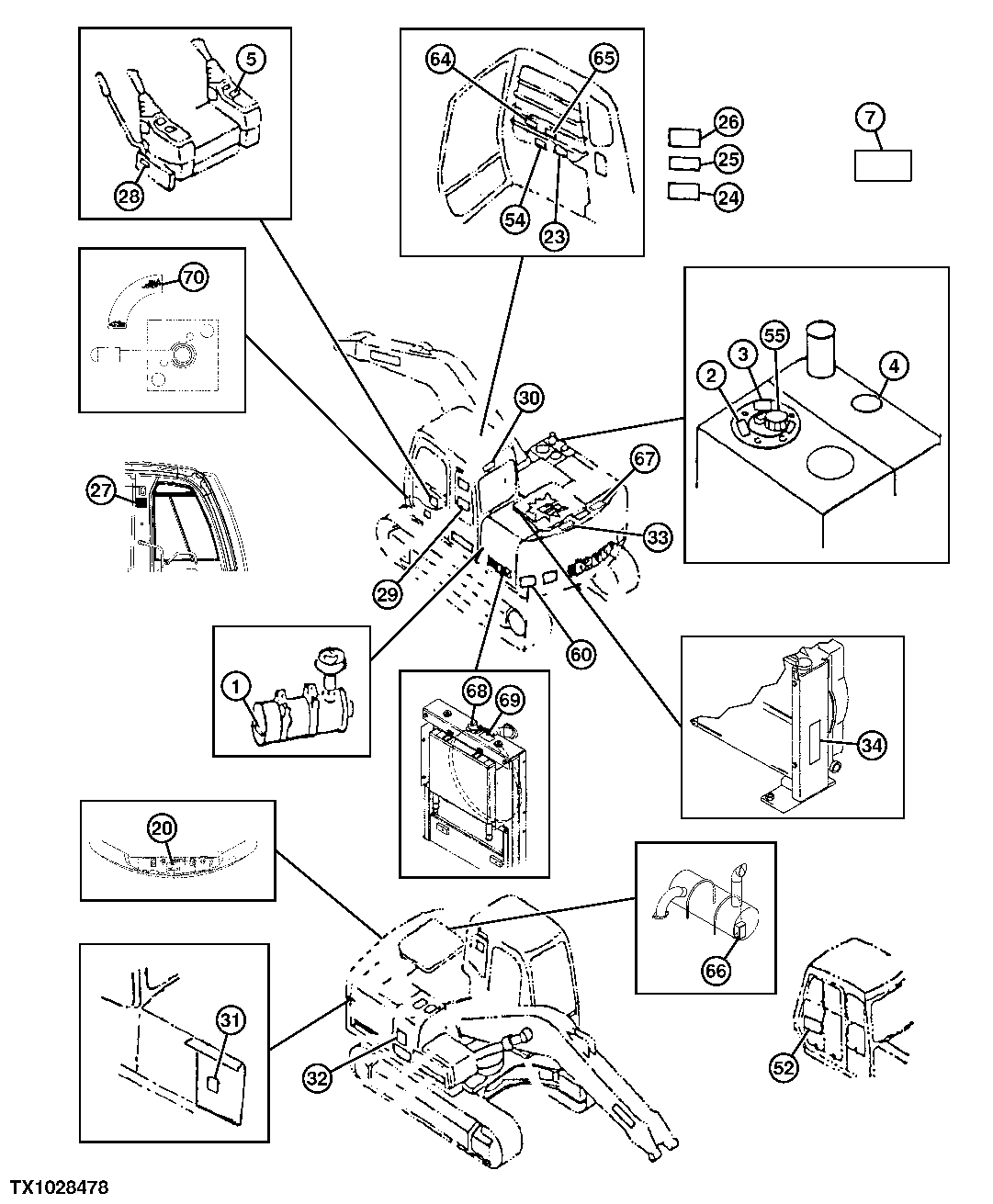

Запчасти John Deere 60C LC 62 - DECALS AND LABELS (FRENCH) 1322 DECALS AND TRADEMARKS

1

T222759

Label

(DRY AIR CLEANER)

1шт.

2

T222805

Label

(PUMP BLEED INFORMATION)

1шт.

3

T102618

Label

(HYDRAULIC OIL)

1шт.

4

T114681

Label

(DIESEL ONLY)

1шт.

5

Label

(IGNITION KEY SWITCH) (T2 22839 NLA) ( T222839 NLA)

1шт.

7

T222895

Label

(LIFT CHART) (WITH OFFSET LEVERS)

1шт.

20

T235105

Label

Engine Oil Fill

1шт.

23

T222940

Label

Operational Engine Start and Stop

1шт.

24

T162774

Safety Sign

(CAUTION) (READ OPERATOR'S MANUAL)

1шт.

25

T222823

Safety Sign

(SUB FOR T146908, THIS APPLICATIO N)WARNING (CRUSHING ARTICULATION)

1шт.

26

T222831

Label

(DANGER - ELECTROCUTION)

1шт.

27

T387695X28

Label

(IMPORTANT - BREAK WINDOW FOR SECONDARY EXIT) SUB FOR T222927

1шт.

28

T222833

Label

(SUB FOR T138886)(HYDRAULIC LOCKOUT)

1шт.

29

T222877

Label

(LIFT CAPACITY)

1шт.

30

T190799

Safety Sign

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T233259

Label

(SUB FOR T191325, T208018 OR T222738 )(PERIODIC MAINTENANCE) (SUB FOR (1) T191325, (1) T208018 OR (1) T222738)

1шт.

32

T222777

Label

(IMPORTANT - OIL LEVEL) (IN SIDE RIGHT PUMP COMPARTMENT)

1шт.

33

T146104

Safety Sign

(SUB FOR T146103)(BYPASS START)

1шт.

34

T222775

Label

(IMPORTANT - RADIATOR)

1шт.

52

T222765

Label

(VANDAL PROTECTION COVER LOCATIONS)

1шт.

54

T201548

Label

(SUB FOR T159842 AND T159841)(OPERATOR PAT TERN) (SUB FOR (1) T159842 AND (1) T159841)

1шт.

55

T190801

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

60

T222786

Label

(WARNING - STAY CLEAR)

2шт.

64

T222954

Label

(BLADE OPERATION)

1шт.

65

T222956

Label

BOOM (WITH OFFSET LEVERS)

1шт.

66

T222807

Safety Sign

(MUFFLER) (WARNING - HOT SURFACE)

1шт.

67

T187758

Label

(WARNING, FAN GUARD)

1шт.

68

T181296

Label

RADIATOR CAP

1шт.

69

T222792

Label

CAUTION - RADIATOR CAP

1шт.

70

T228108

Label

PATTERN CHANGER (PATTERN SELECTOR VALVE)

1шт.
