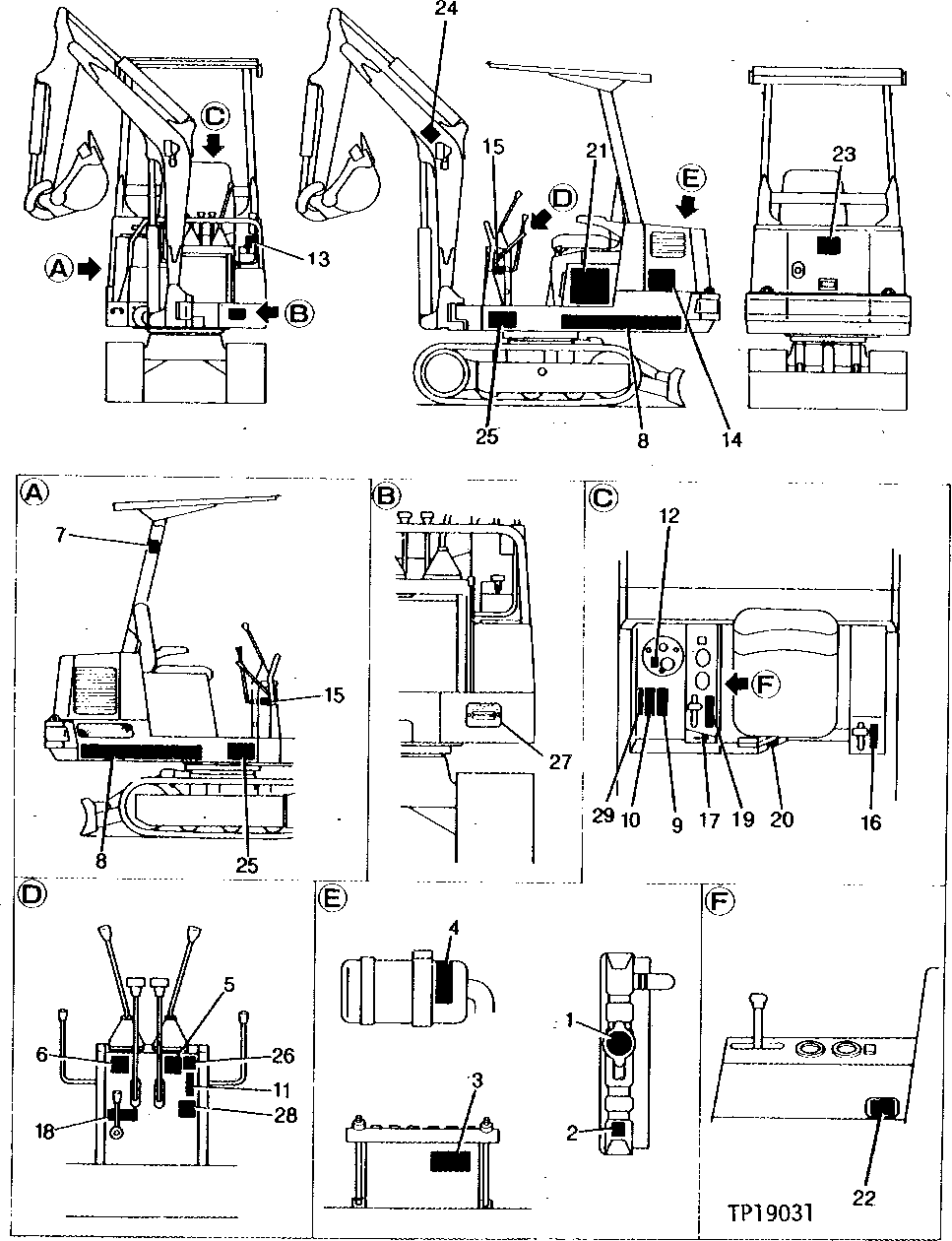

Запчасти John Deere 5 2 - NAME PLATE AND LABELS 1320 - MISCELLANEOUS VEHICLE 13

1

CH15946

LABEL

(RADIATOR CAP)

1шт.

2

T111705

LABEL

(ANTI-FREEZING)

1шт.

3

T114197

SAFETY SIGN

(SUB FOR T111023 AND T114159) (BATTERY)

1шт.

4

T111137

LABEL

(AIR CLEANER)

1шт.

5

T111706

LABEL

(OPERATION)

1шт.

6

T111707

LABEL

(OPERATION)

1шт.

7

T113964

LABEL

(SUB FOR T111708)

1шт.

8

JD5647

LABEL

(SUB FOR T111709) (JOHN DEERE LOGO)

2шт.

9

T111988

LABEL

1шт.

10

LABEL

(CAUTION) ( T111711 NO LONGER AVAILABLE FOR SERVICE)

1шт.

11

4149203

LABEL

(SUB FOR T111712) (SUB FOR TH101569) (CONTROL LEVER LOCK)

1шт.

12

T101942

LABEL

(SUB FOR T111713) (HYDRAULIC OIL)

1шт.

13

T79632

LABEL

(SUB FOR T111714) (DIESEL ONLY)

1шт.

14

SAFETY SIGN

(CAUTION) ( T111715 NO LONGER AVAILABLE FOR SERVICE)

1шт.

15

T105883

SAFETY SIGN

(SUB FOR T111716) (WARNING)

2шт.

16

T111717

LABEL

(ACCELERATOR)

1шт.

17

T111718

LABEL

(KEY SWITCH)

1шт.

18

T111973

LABEL

(SUB FOR T111719)

1шт.

19

T111720

LABEL

(BLADE)

1шт.

20

T111721

LABEL

(SWING LOCK)

1шт.

21

T111722

LABEL

(PERIODIC MAINTENANCE CHART)

1шт.

22

T111723

LABEL

(FUSE BOX)

1шт.

23

JD5621

LABEL

(SUB FOR T111724) (LEAPING DEER)

1шт.

24

JD5646

LABEL

(SUB FOR T111725) (LEAPING DEER)

2шт.

25

T111726

LABEL

(MODEL DESIGNATION)

2шт.

26

T111727

LABEL

(LEVER LOCK)

1шт.

27

PLATE

(IDENTIFICATION)

1шт.

28

T111729

LABEL

(THIRD VALVE)

1шт.

29

T111989

SAFETY SIGN

1шт.
