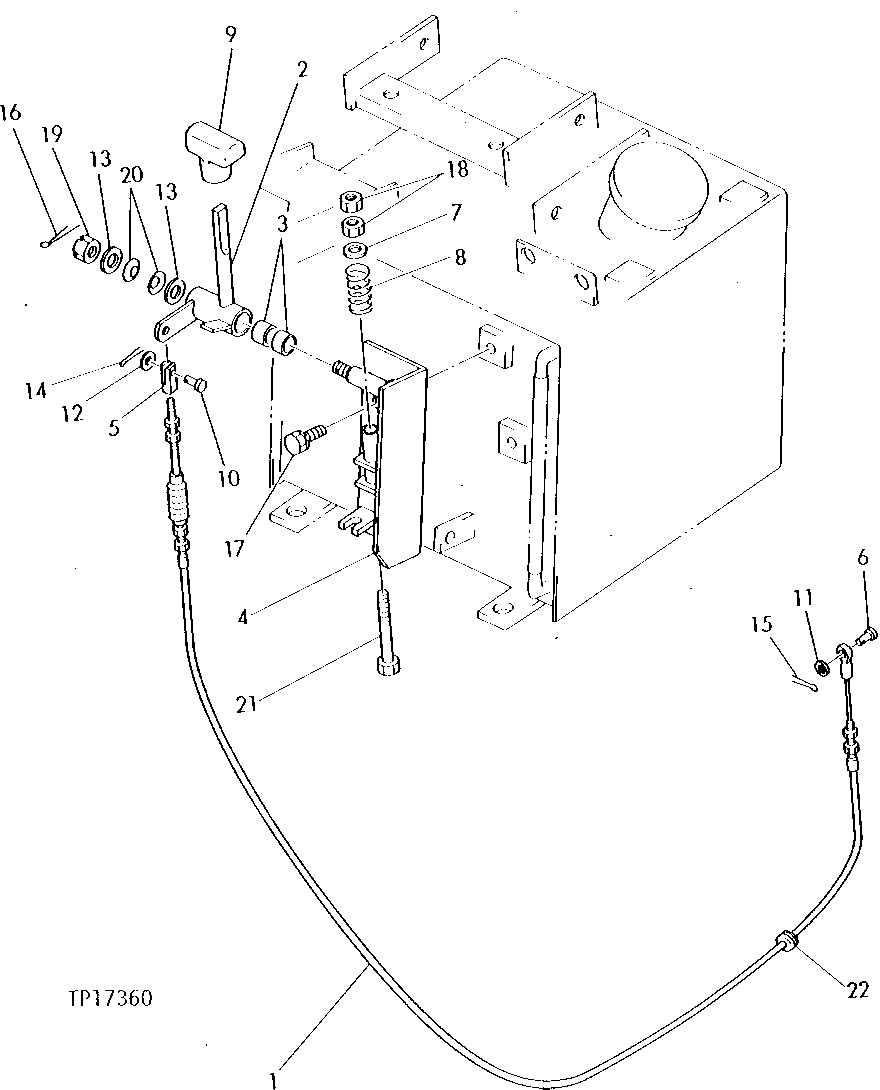

Запчасти John Deere 5 2 - ENGINE SPEED CONTROL 515 - ENGINE AUXILIARY SYSTEM 5

1

T110293

CABLE

1шт.

2

AT110158

LEVER

1шт.

3

T110633

BUSHING

2шт.

4

AT110519

MOUNTING PARTS

1шт.

5

T110294

UNIVERSAL JOINT

1шт.

6

T110056

PIN

1шт.

7

T110007

WASHER

1шт.

8

T110385

SPRING

1шт.

9

T110795

GRIP

1шт.

10

T110002

PIN

1шт.

11

CH10525

WASHER

1шт.

12

CH10525

WASHER

1шт.

13

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

14

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR 11M7009)

1шт.

15

11M7078

COTTER PIN

2 X 20 MM, (SUB FOR 11M7010)

1шт.

16

11M7015

COTTER PIN

3.200 X 25 MM, (SUB FOR 11M7059)

1шт.

17

12M7066

LOCK WASHER

10 MM

2шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

18

14M7274

NUT

M10

2шт.

19

14M7177

NUT

M12, (SUB FOR T110001)

1шт.

20

T110618

DISK SPRING

2шт.

21

T110086

BOLT

1шт.

22

T111302

GROMMET

1шт.
