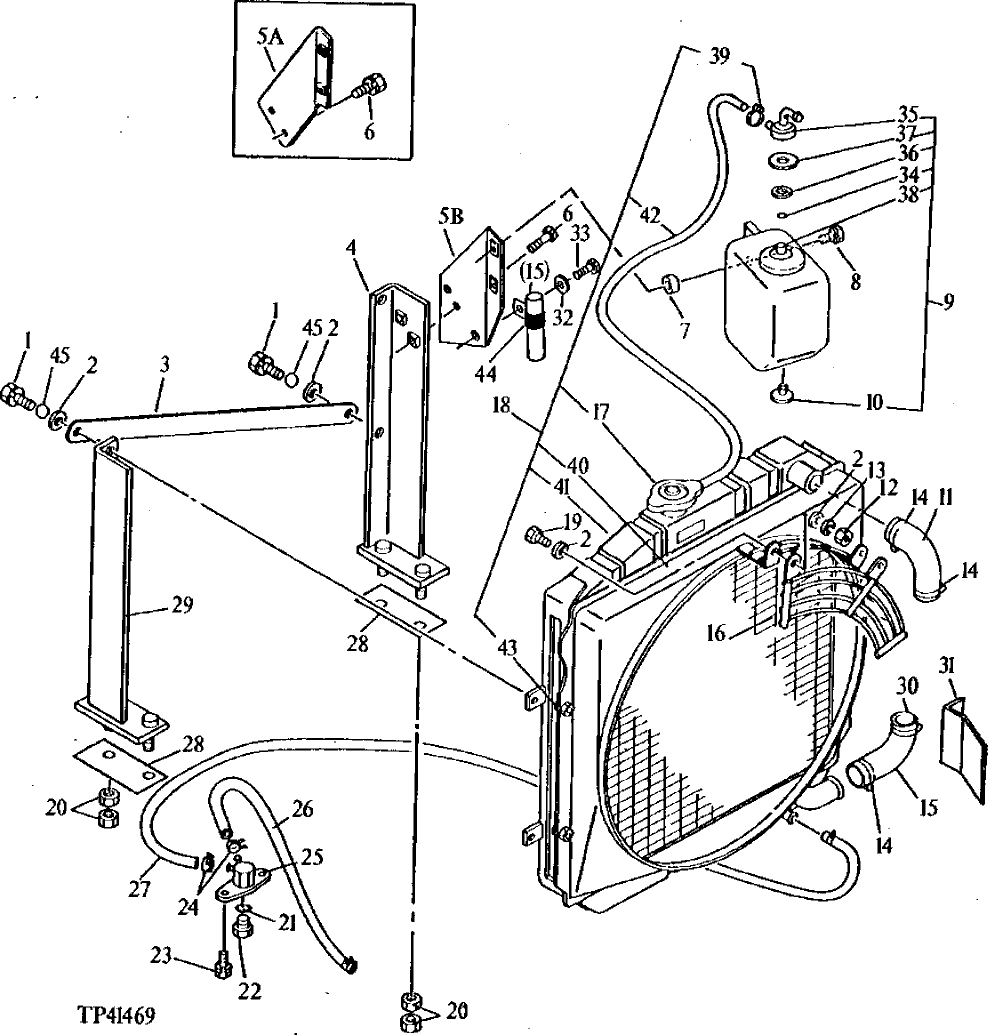

Запчасти John Deere 5 2 - RADIATOR, SHROUD, OVERFLOW TANK AND MOUNTING BRACKETS 510 - ENGINE AUXILIARY SYSTEM 5

1

19M7881

SCREW

M8 X 20

4шт.

2

24M7055

WASHER

8.400 X 16 X 1.600 MM

6шт.

3

T110298

BRACKET

1шт.

4

AT110162

SUPPORT

1шт.

5A

AT111498

SUPPORT

(SUB FOR AT110164) (SUB AT111498, T111951, 24M7055, 19M7162 AND 12M7065)

1шт.

5B

AT111498

SUPPORT

1шт.

6

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

19M7881

SCREW

M8 X 20

2шт.

7

T110398

CUSHION

2шт.

8

T111732

BOLT

2шт.

9

AT110377

RESERVOIR

1шт.

10

T110998

PLUG

1шт.

11

RG60025

RADIATOR HOSE

(SUB FOR T110996)

1шт.

12

14M7273

NUT

M8

2шт.

13

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

14

TY22467

CLAMP

(SUB FOR CH10549 OR AT145650)

3шт.

15

T110994

HYDRAULIC HOSE

(SUB T111957)

1шт.

T111957

RADIATOR HOSE

1шт.

16

AT111826

GUARD

SUB AT111826 ALONG WITH T114134, THIS APPLICATION, (SUB FOR AT110376)

1шт.

AT111826

GUARD

(SUB FOR AT111782)

1шт.

17

CH18207

FILLER CAP

(SUB FOR CH10427)

1шт.

18

AT111781

RADIATOR

SUB AT111826 ALONG WITH AT111781, THIS APPLICATION, (SUB FOR AT110375)

1шт.

AT111781

RADIATOR

(USE IF AVAILABLE)

1шт.

19

19M7881

SCREW

M8 X 20

2шт.

20

14M7274

NUT

M10

8шт.

21

CH10570

PACKING

1шт.

22

CH10275

PLUG

1шт.

23

19M7932

CAP SCREW

M8 X 16

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

24

TY22462

CLAMP

(SUB FOR AR48236)

4шт.

25

T110997

HYD ACTUATED CONTROL VALVE

1шт.

26

T110300

LINE

1шт.

27

T110299

LINE

1шт.

28

T110297

ISOLATOR

2шт.

29

AT110163

SUPPORT

1шт.

30

TY22467

CLAMP

(SUB FOR T110428 OR AT145650)

1шт.

31

T111951

GUARD

1шт.

32

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

33

19M7932

CAP SCREW

M8 X 16

1шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

34

CH10426

RETAINER

1шт.

35

T114260

CAP

(SUB FOR CH12896, THIS APPLICATION) (ALSO ORDER T114621)

1шт.

36

SPACER

(SUB AT110377)

1шт.

37

GASKET

( T111613 OR T114261 NO LONGER AVAILABLE)

1шт.

38

T114147

PIPE

1шт.

39

CH12782

HOSE CLAMP

2шт.

40

T114134

SHROUD

1шт.

41

T114146

RADIATOR

1шт.

42

TUBE

( CH18195 NO LONGER AVAILABLE)

1шт.

43

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

19M7932

CAP SCREW

M8 X 16

4шт.

44

AT110012

HOSE CLAMP

1шт.

45

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.
