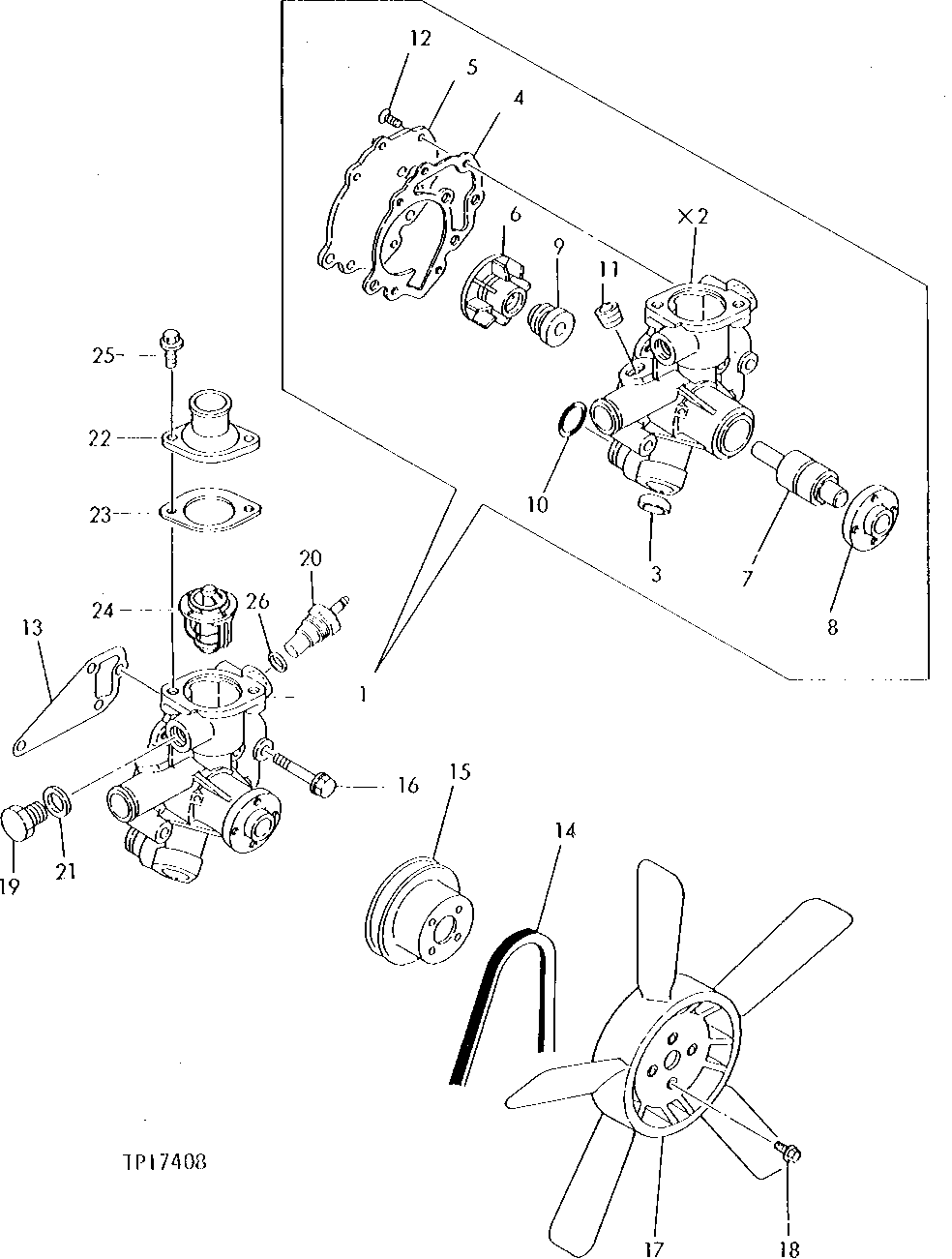

Запчасти John Deere 5 2 - ENGINE COOLANT PUMP, THERMOSTAT, SWITCH AND FAN 417 - ENGINE 4

1

WATER PUMP

(SUB EPC200687) ( AM875562 NO LONGER AVAILABLE)

1шт.

2

WATER PUMP

1шт.

3

M87896

PLUG

1шт.

4

M805700

PACKING

(SUB FOR M800422)

1шт.

5

M800423

PLATE

1шт.

6

IMPELLER

( M87899 NO LONGER AVAILABLE)

1шт.

7

SHAFT

( M800311 NO LONGER AVAILABLE)

1шт.

8

FLANGE

( M800082 NO LONGER AVAILABLE)

1шт.

9

SEAL

( M800083 NO LONGER AVAILABLE)

1шт.

10

M87902

O-RING

1шт.

11

CH15002

PLUG

1шт.

12

21M7194

SCREW

M6 X 12, (SUB FOR M800087)

5шт.

13

M87858

GASKET

1шт.

14

M800347

V-BELT

(SUB FOR T111546)

1шт.

15

T111547

PULLEY

1шт.

16

CH19101

BOLT

4шт.

17

AT110775

FAN

1шт.

18

19M7560

CAP SCREW

M6 X 16, (SUB FOR CH18443, ALONG WITH 12M7006 AND 24M7095)

4шт.

12M7006

LOCK WASHER

6 MM

4шт.

24M7095

WASHER

8.400 X 15 X 1.600 MM

4шт.

19

M800312

PLUG

1шт.

20

T110736

SENSOR

1шт.

21

CH13814

WASHER

1шт.

22

CH15535

COVER

1шт.

23

M805702

GASKET

(SUB FOR CH16026, THIS APPLICATION)

1шт.

24

CH15536

THERMOSTAT

1шт.

25

19M7866

BOLT

M8 X 20

2шт.

26

T110737

GASKET

1шт.
