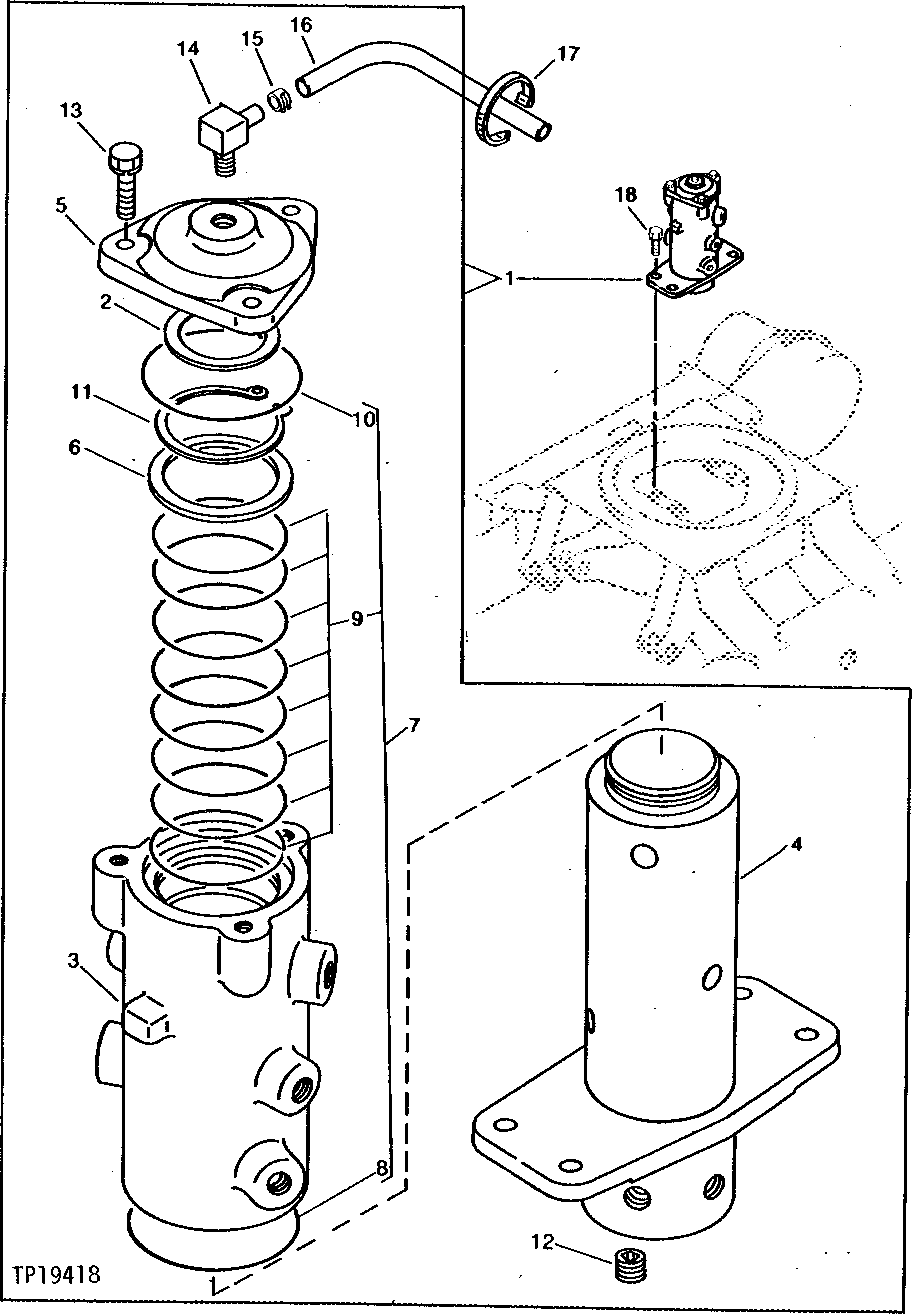

Запчасти John Deere 5 2 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

1

AT111514

MANIFOLD

(SUB FOR AT110197)

1шт.

2

T110404

LINING

1шт.

3

HUB

(T110347 - NO LONGER AVAILABLE)

1шт.

4

SHAFT

(AT110198 - NO LONGER AVAILABLE)

1шт.

5

T110348

COVER

1шт.

6

T110349

WASHER

1шт.

7

AT110199

SEAL KIT

1шт.

8

T111314

O-RING

1шт.

9

T138823

O-RING

(SUB FOR T110442)

8шт.

10

CH14671

PACKING

1шт.

11

40M7047

SNAP RING

(SUB FOR CH15041)

1шт.

12

15H559

PIPE PLUG

(SUB FOR TH111958)

7шт.

13

12M7066

LOCK WASHER

10 MM

3шт.

19M7402

CAP SCREW

M10 X 25

3шт.

14

T112000

ELBOW FITTING

1шт.

15

CH10323

RETAINER

1шт.

16

T113801

HOSE

(DRAINAGE)

1шт.

17

T110612

TIE BAND

1шт.

18

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.
