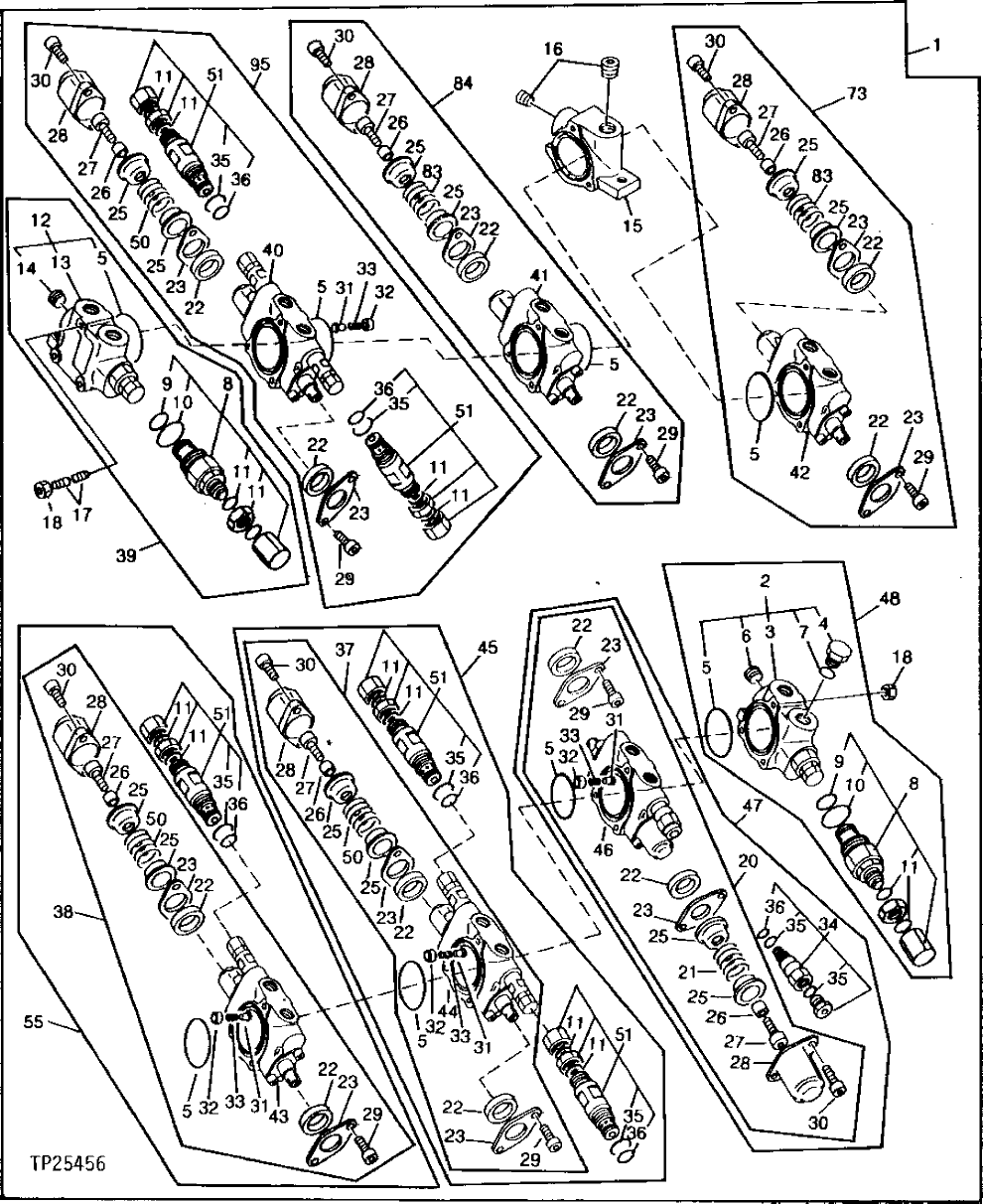

Запчасти John Deere 5 12 - MAIN HYDRAULIC CONTROL VALVE 3360 - EXCAVATOR

38

EXCAVATOR BUCKET

(BUCKET VALVE SECTION) (ORDER INDIVIDUAL COMPONENTS)

1шт.

39

VALVE

(AT111731 - NO LONGER AVAILABLE) (VALVE SECTION)

1шт.

40

ARM

(SUB AT111735) (VALVE SECTION)

1шт.

41

VALVE

(SUB AT111113) (SECTION, DRIVE, LEFT)

1шт.

42

VALVE

(SUB AT111112) (SECTION, DRIVE, RIGHT)

1шт.

43

VALVE

(SUB AT111111) (SECTION, BUCKET ASSEMBLY)

1шт.

44

VALVE

(SUB AT111109) (SECTION, BOOM)

1шт.

45

VALVE

(AT111733 - NO LONGER AVAILABLE) (VALVE SECTION ASSEMBLY)

1шт.

46

VALVE

(SUB AT111107) (SECTION, SWING)

1шт.

47

VALVE

(AT111732 - NO LONGER AVAILABLE) (SWING VALVE SECTION)

1шт.

48

AT111730

MOUNTING PARTS

(VALVE SECTION ASSEMBLY)

1шт.

50

T111822

SPRING

3шт.

51

AT111110

HYD ACTUATED CONTROL VALVE

5шт.

55

AT111734

MOUNTING PARTS

(BUCKET VALVE SECTION)

1шт.

73

AT111112

MOUNTING PARTS

(RIGHT DRIVE SECTION)

1шт.

83

T111825

SPRING

2шт.

84

AT111113

MOUNTING PARTS

(LEFT DRIVE SECTION)

1шт.

95

AT111735

MOUNTING PARTS

(ARM VALVE SECTION)

1шт.
