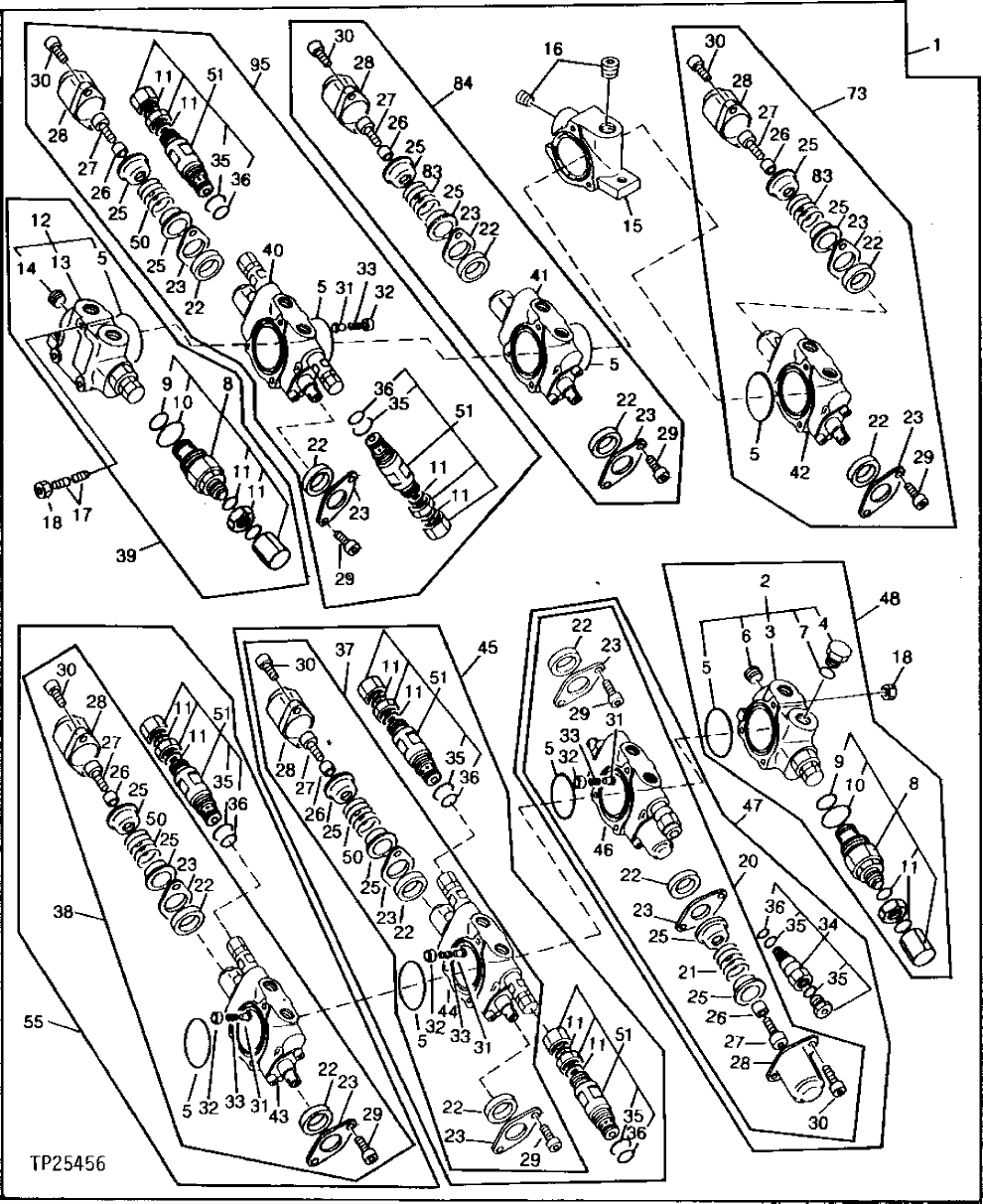

Запчасти John Deere 5 10 - MAIN HYDRAULIC CONTROL VALVE 3360 - EXCAVATOR

1

VALVE

(T111763 - NO LONGER AVAILABLE)

1шт.

2

VALVE

(AT111105 - NO LONGER AVAILABLE)

1шт.

3

SECTION

(T111816 - NO LONGER AVAILABLE)

1шт.

4

T111817

PLUG

1шт.

5

CH15107

PACKING

8шт.

6

15H559

PIPE PLUG

1/4"

1шт.

7

CH11570

O-RING

1шт.

8

AT111106

PRESSURE RELIEF VALVE

2шт.

9

T111800

O-RING

2шт.

10

AT264354

O-RING

(SUB FOR T110439, TH103574)

2шт.

11

CH14946

PACKING

14шт.

12

AT111100

MOUNTING PARTS

(VALVE SECTION)

1шт.

13

SECTION

(T111799 - NO LONGER AVAILABLE)

1шт.

14

15H559

PIPE PLUG

1/4"

1шт.

15

T111828

MOUNTING PARTS

(CARRYOVER SECTION)

1шт.

16

15H666

PIPE PLUG

3/8"

2шт.

17

T111829

ROD

3шт.

18

14M7273

NUT

M8

6шт.

20

AT111107

MOUNTING PARTS

(SWING SECTION)

1шт.

21

T111812

SPRING

1шт.

22

T111801

SEAL

12шт.

23

T111802

PLATE

12шт.

25

T111803

SPRING

12шт.

26

T111804

SPACER

6шт.

27

T111805

BOLT

6шт.

28

T111806

CAP

6шт.

29

T111807

BOLT

12шт.

30

T111808

BOLT

12шт.

31

T111809

CHECK VALVE

4шт.

32

T111810

GUIDE

4шт.

33

T111811

SPRING

4шт.

34

AT111108

HYD ACTUATED CONTROL VALVE

1шт.

35

T111819

O-RING

7шт.

36

T111820

O-RING

6шт.

37

AT111109

EXCAVATOR BOOM

(SECTION)

1шт.
