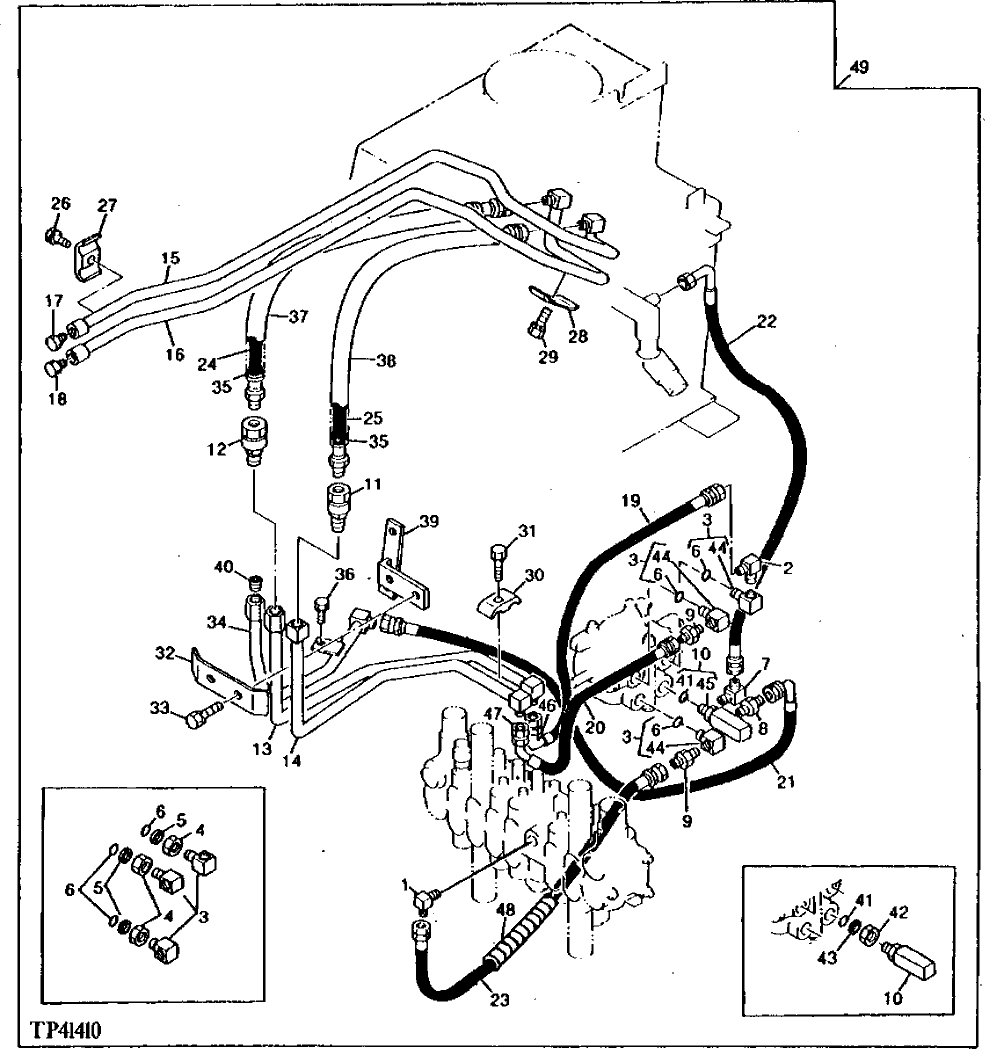

Запчасти John Deere 5 4 - THIRD FNCTION HYDRAULIC HOSES, LINES AND FITTINGS 3360 - EXCAVATOR

1

T115889

ELBOW FITTING

(SUB FOR T110866)

1шт.

2

T115889

ELBOW FITTING

(SUB FOR T110866)

1шт.

3

CONNECTOR

(SUB AT111512) ( T111332 NO LONGER AVAILABLE)

3шт.

AT111512

FITTING

3шт.

4

NUT

(SUB AT111512) ( T111333 NO LONGER AVAILABLE)

3шт.

5

RING

(SUB AT111512) ( T110512 NO LONGER AVAILABLE)

3шт.

6

CH11570

O-RING

3шт.

7

4154658

ELBOW FITTING

(SUB FOR T110870) (SUB FOR TH101039)

1шт.

8

4154653

ADAPTER FITTING

(SUB FOR T110871) (SUB FOR TH100989)

1шт.

9

T115957

ADAPTER FITTING

(SUB FOR T110867)

2шт.

10

T111990

FITTING

1шт.

T111767

FITTING

1шт.

11

T111768

MANIFOLD

1шт.

12

T111769

MANIFOLD

1шт.

13

T111770

OIL LINE

1шт.

AT111540

OIL LINE

1шт.

14

T114032

OIL LINE

(SUB FOR T111771)

1шт.

AT111541

OIL LINE

1шт.

15

T111772

OIL LINE

1шт.

AT111538

OIL LINE

1шт.

16

T111773

OIL LINE

1шт.

AT111539

OIL LINE

1шт.

17

T111465

PLUG

1шт.

18

T111680

PIPE PLUG

1шт.

19

AR50603

HYDRAULIC HOSE

(SUB FOR T111774, ALONG WITH AE24616)

1шт.

20

AR50603

HYDRAULIC HOSE

(SUB FOR T111775, ALONG WITH AU43156)

1шт.

21

T111776

HYDRAULIC HOSE

1шт.

22

T111777

HYDRAULIC HOSE - FABRICATE

1шт.

23

AT48428

HYDRAULIC HOSE - FABRICATE

(SUB FOR T111778)

1шт.

24

T111779

HYDRAULIC HOSE

(SUB T114033)

1шт.

T114033

HYDRAULIC HOSE - FABRICATE

1шт.

25

AT46299

HYDRAULIC HOSE - FABRICATE

(SUB FOR T111780)

1шт.

26

M800452

SCREW WITH WASHER

2шт.

27

T110033

RETAINER

2шт.

28

T111781

CLAMP

1шт.

29

12M7066

LOCK WASHER

10 MM

1шт.

19M7166

CAP SCREW

M10 X 20

1шт.

30

T110599

CLAMP

1шт.

31

M800452

SCREW WITH WASHER

1шт.

32

T111782

CLAMP

1шт.

T113817

CLAMP

1шт.

33

M800452

SCREW WITH WASHER

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

19M7167

CAP SCREW

2шт.

34

T111783

OIL LINE

1шт.

AT111542

OIL LINE

1шт.

35

T111126

CLAMP

4шт.

36

12M7066

LOCK WASHER

10 MM

1шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

1шт.

37

T111784

HOSE GUARD

(SUB T114034)

1шт.

T114034

HOSE GUARD

1шт.

38

T111785

HOSE GUARD

1шт.

39

T111786

SUPPORT

1шт.

AT111537

SUPPORT

1шт.

40

T111787

PLUG

1шт.

41

4506418

O-RING

(SUB FOR T110438) (SUB FOR U46489)

1шт.

42

NUT

( T110513 NO LONGER AVAILABLE)

1шт.

43

RING

( T110514 NO LONGER AVAILABLE)

1шт.

44

FITTING

(SUB AT111512)

3шт.

45

FITTING

(SUB T111767)

1шт.

46

AE24616

ELBOW FITTING

1шт.

47

AU43156

ELBOW FITTING

1шт.

48

T138881

HOSE GUARD

(CUT TO LENGTH)

1шт.

49

VALVE

(ALSO CONTAINS ITEMS ON PAGES 3360-8 AND 9) ( AT107174 NO LONGER AVAILABLE)

1шт.
