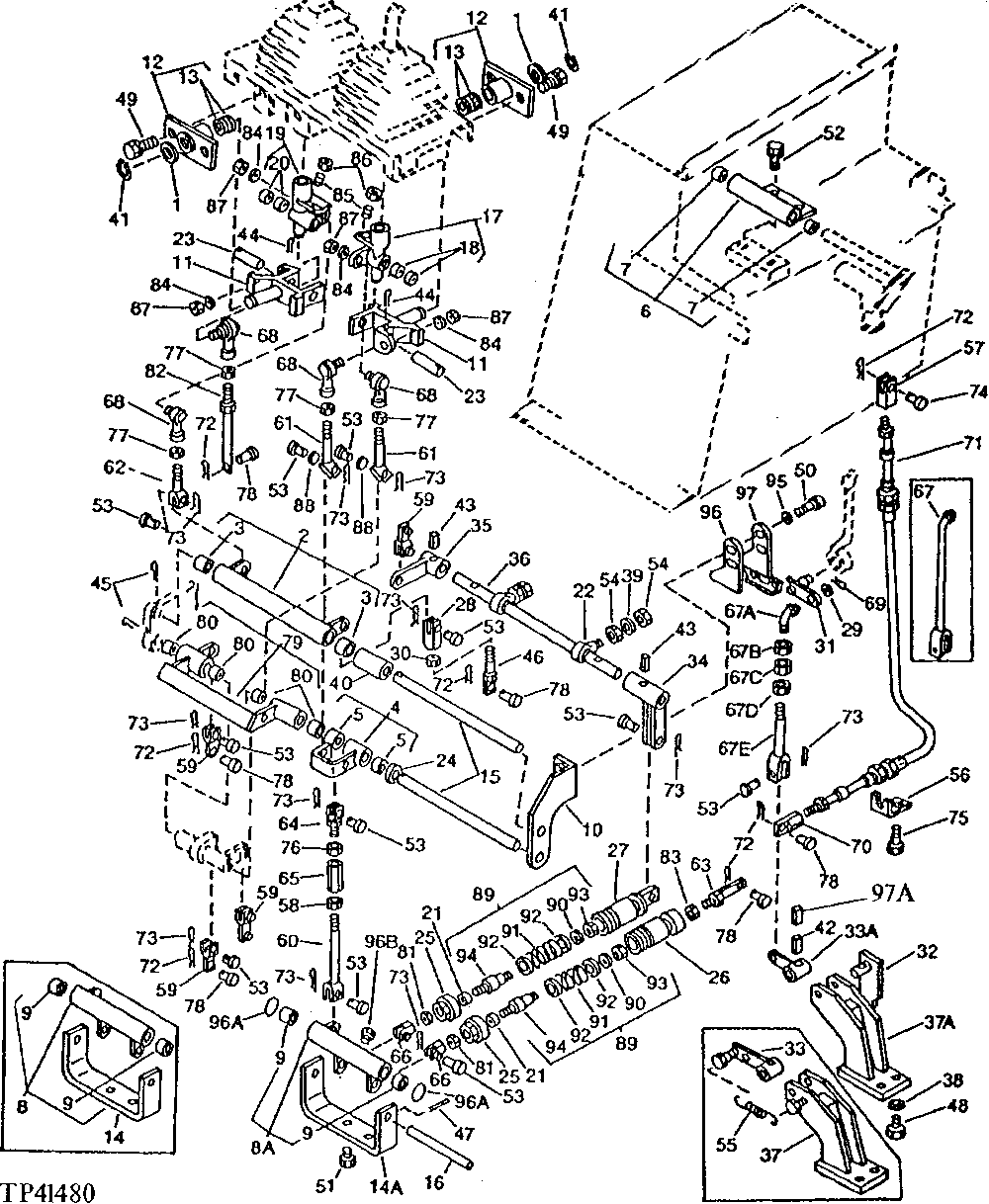

Запчасти John Deere 5 6 - CONTROL EQUIPMENT 3315 - EXCAVATOR

53

T110627

PIN

14шт.

54

14M7141

NUT

M14, (SUB FOR CH12041)

4шт.

55

T111347

SPRING

1шт.

56

AT110086

SUPPORT

1шт.

57

T110013

UNIVERSAL JOINT

1шт.

58

14M7228

NUT

M10

1шт.

59

AT110174

LINK

4шт.

60

T111903

ROD

1шт.

61

T111904

ROD

2шт.

62

T111905

ROD

1шт.

63

T111906

ROD

1шт.

64

T111907

ROD

1шт.

65

T111908

TURNBUCKLE

1шт.

66

T111909

LINK

2шт.

67

SHIFTER ROD

( T111910 NO LONGER AVAILABLE) (SUB T114210) (ALSO ORDER T114211, T114209, 14M7273 AND 14M7145)

1шт.

67A

T114210

HOOK BOLT

1шт.

67B

14M7273

NUT

1шт.

67C

T114209

TURNBUCKLE

1шт.

67D

14M7145

NUT

1шт.

67E

T114211

SHIFTER ROD

1шт.

68

T110119

TIE ROD END

4шт.

69

11M7078

COTTER PIN

2 X 20 MM

1шт.

70

T110074

UNIVERSAL JOINT

1шт.

71

T110122

CABLE

1шт.

72

LG93306

SPRING LOCKING PIN

(SUB FOR T110005 OR M112711)

9шт.

73

R50647

SPRING LOCKING PIN

(SUB FOR T110006)

15шт.

74

T110002

PIN

1шт.

75

19M7932

CAP SCREW

M8 X 16

2шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

76

14M7274

NUT

M10

1шт.

77

CH12404

NUT

4шт.

78

T110484

PIN FASTENER

8шт.

79

AT111484

SIDEBOOM

1шт.

80

T110633

BUSHING

4шт.

81

14M7274

NUT

M10

2шт.

82

ROD

(T111840 - NO LONGER AVAILABLE)

1шт.

83

14M7274

NUT

M10

1шт.

84

12M7060

WASHER

5.300 MM

4шт.

85

T114040

STUD

(FOR USE WITHOUT CAB) (SUB FOR T110841)

4шт.

T114040

STUD

(FOR USE WITH CAB)

4шт.

86

14M7229

NUT

M5

4шт.

R67593

NUT

(SUB FOR CH11460)

4шт.

87

CH12404

NUT

4шт.

88

24M7095

WASHER

8.400 X 15 X 1.600 MM

2шт.

89

AT111499

SPRING

2шт.

90

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

91

T111892

SPRING

1шт.

92

T111894

SPRING

2шт.

93

14M7273

NUT

M8

1шт.

94

T111893

ROD

1шт.

95

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

96

T111975

SHIM

1шт.

96A

CH13517

PACKING

2шт.

96B

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

97

T111974

COVER

1шт.

97A

T138830

PIN

1шт.
