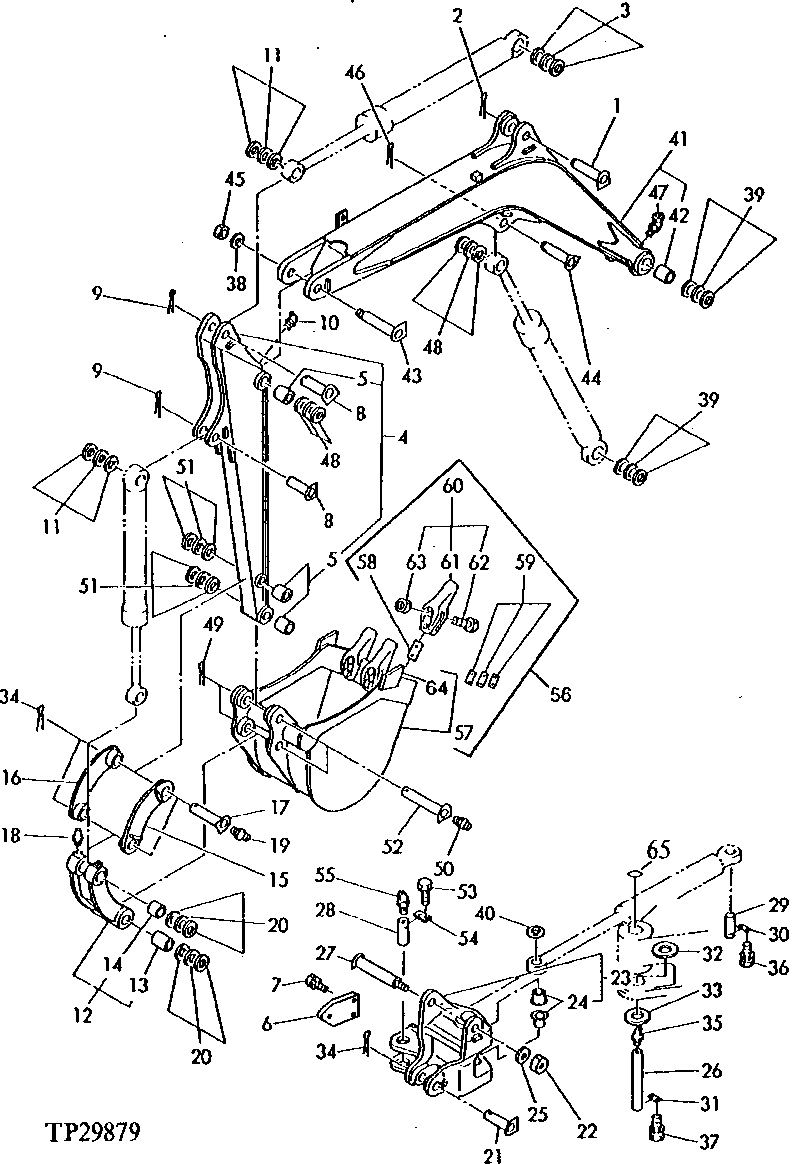

Запчасти John Deere 5 4 - ARM, BOOM, BUCKET AND LINKAGE 3302 - EXCAVATOR

36

19M7166

CAP SCREW

M10 X 20

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

37

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

19M8011

CAP SCREW

M12 X 30

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

38

3054141

WASHER

(SUB FOR T110586) (SUB FOR AT136418)

1шт.

39

AT110240

SHIM

2шт.

40

24H1535

WASHER

(SUB FOR AT110608) (USE IF AVAILABLE)

2шт.

24H1535

WASHER

38.887 X 56.363 X 0.813 MM (1-17/32" X 2-7/32" X 0.032") (SUB FOR AT110608)

2шт.

41

AT110570

EXCAVATOR BOOM

1шт.

42

T111294

BUSHING

2шт.

43

T110361

PIN

1шт.

44

T110362

PIN

1шт.

45

14M7328

LOCK NUT

M16, (SUB FOR T110363)

1шт.

46

11M7056

COTTER PIN

8 X 50 MM

1шт.

47

T116334

LUBRICATION FITTING

(SUB FOR T110450 OR TH100075)

1шт.

48

AT110240

SHIM

2шт.

49

11M7056

COTTER PIN

8 X 50 MM

2шт.

50

TH100074

LUBRICATION FITTING

(SUB FOR T110449 OR CH11575)

2шт.

51

AT110240

SHIM

2шт.

52

AT110577

PIN FASTENER

2шт.

53

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

54

T110082

PLATE

1шт.

55

T116334

LUBRICATION FITTING

(SUB FOR TH110450 OR TH100075)

1шт.

56

EXCAVATOR BUCKET

( AT111096 NO LONGER AVAILABLE) (COMPLETE ASSEMBLY)

1шт.

57

EXCAVATOR BUCKET

(SUB AT111096) (0.04M3) (NOT AVAILABLE FOR SERVICE)

1шт.

58

T110366

STRAP

3шт.

59

AT110206

SHIM

3шт.

60

TOOTH

( AT110578 NOT AVAILABLE FOR SERVICE)

1шт.

61

T111297

BUCKET TOOTH ADAPTER

3шт.

62

09H1759

BOLT

5/8" X 2-1/4"

6шт.

63

14H1039

NUT

5/8"

6шт.

64

T114140

CUTTING EDGE

2шт.

T114892

CUTTING EDGE

AUXILIARY (NOT ILLUSTRATED)

1шт.

65

CH11484

RING

1шт.
