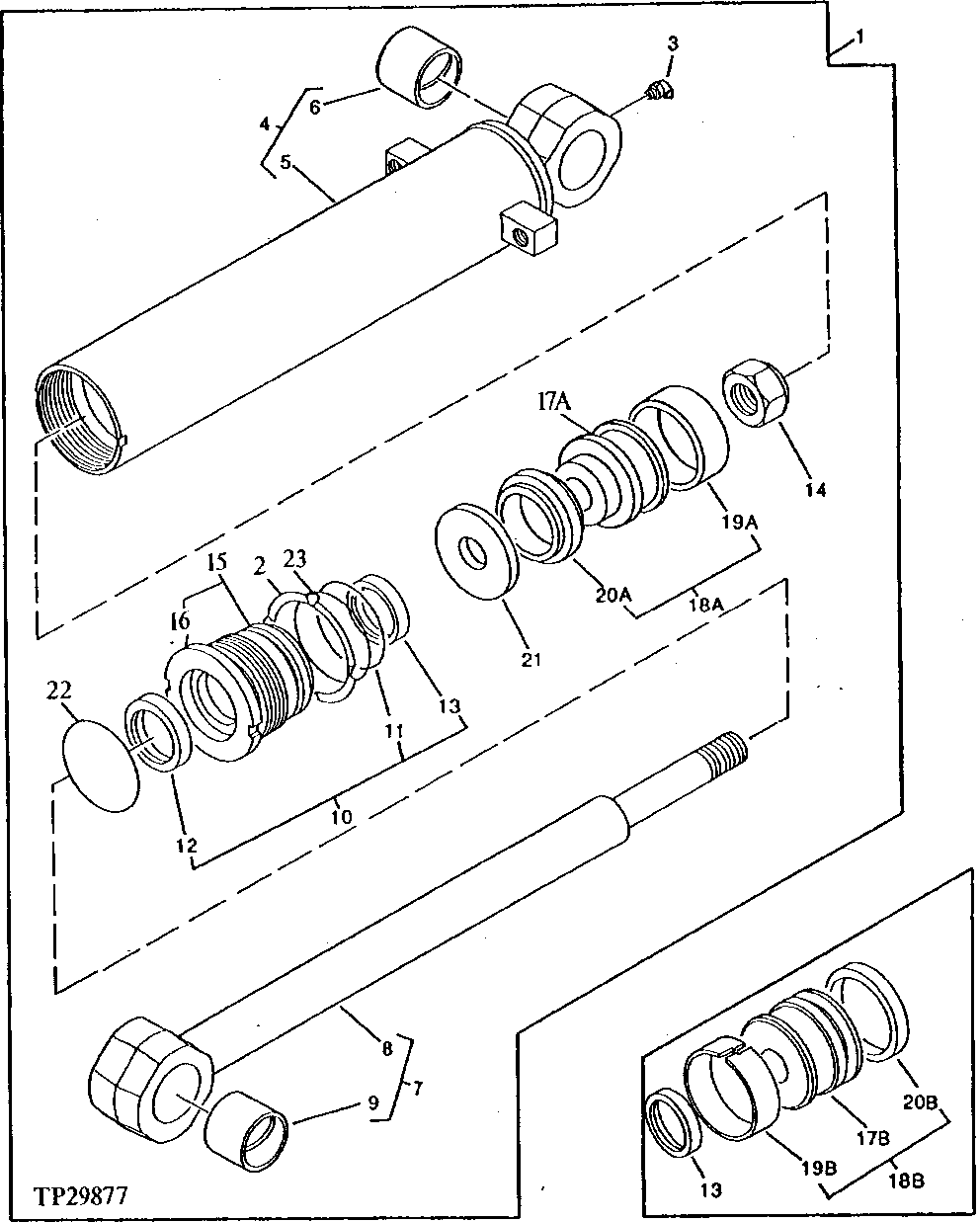

Запчасти John Deere 5 22 - BUCKET CYLINDER 2160 - MAIN HYDRAULIC SYSTEM

1

HYDRAULIC CYLINDER

(SUB AT111851) ( AT110219 NO LONGER AVAILABLE)

1шт.

AT111851

HYDRAULIC CYLINDER

(SUB FOR AT110219)

1шт.

2

T110547

WASHER

1шт.

3

T116334

LUBRICATION FITTING

(SUB FOR T110450 OR TH100075)

1шт.

4

AT111126

HYDRAULIC CYLINDER BARREL

1шт.

AT111940

HYDRAULIC CYLINDER BARREL

1шт.

5

BARREL

(SUB AT111126)

1шт.

AT111941

HYDRAULIC CYLINDER BARREL

1шт.

6

T111342

BUSHING

1шт.

7

AT111127

ROD

1шт.

8

ROD

(SUB AT111127)

1шт.

9

T111343

BUSHING

(SUB FOR T111342, THIS APPLICATION)

1шт.

10

AT111124

SEAL KIT

1шт.

11

CH15107

PACKING

1шт.

12

T110555

SEAL

1шт.

13

T110559

PACKING

1шт.

14

T138832

PISTON

(SUB FOR T110552, THIS APPLICATION)

1шт.

15

AT110606

HYDR. CYLINDER ROD GUIDE

1шт.

AT111942

HYDRAULIC CYLINDER CAP

1шт.

16

T110491

BUSHING

1шт.

17A

PISTON

(SUB T114214) ( T114213 NO LONGER AVAILABLE)

1шт.

T114214

PISTON

1шт.

17B

PISTON

(SUB T114214) (ALSO ORDER T114216, T114215 AND T114219) (USE WITH AT110219) ( T114213 NO LONGER AVAILABLE)

1шт.

18A

SEAL KIT

(USE WITH AT111851) (SUB AT111943) ( AT111850 NO LONGER AVAILABLE)

1шт.

AT111943

SEAL KIT

(USE WITH AT111851 CYLINDER)

1шт.

18B

AT111120

SEAL KIT

(USE WITH AT110219)

1шт.

19A

T114215

RING

1шт.

19B

T110573

RING

1шт.

20A

T138831

SEAL

(SUB FOR T114216)

1шт.

20B

T110562

SEAL

1шт.

21

T114219

RETAINER

1шт.

22

T138833

RING

1шт.

23

M803221

PACKING

1шт.
