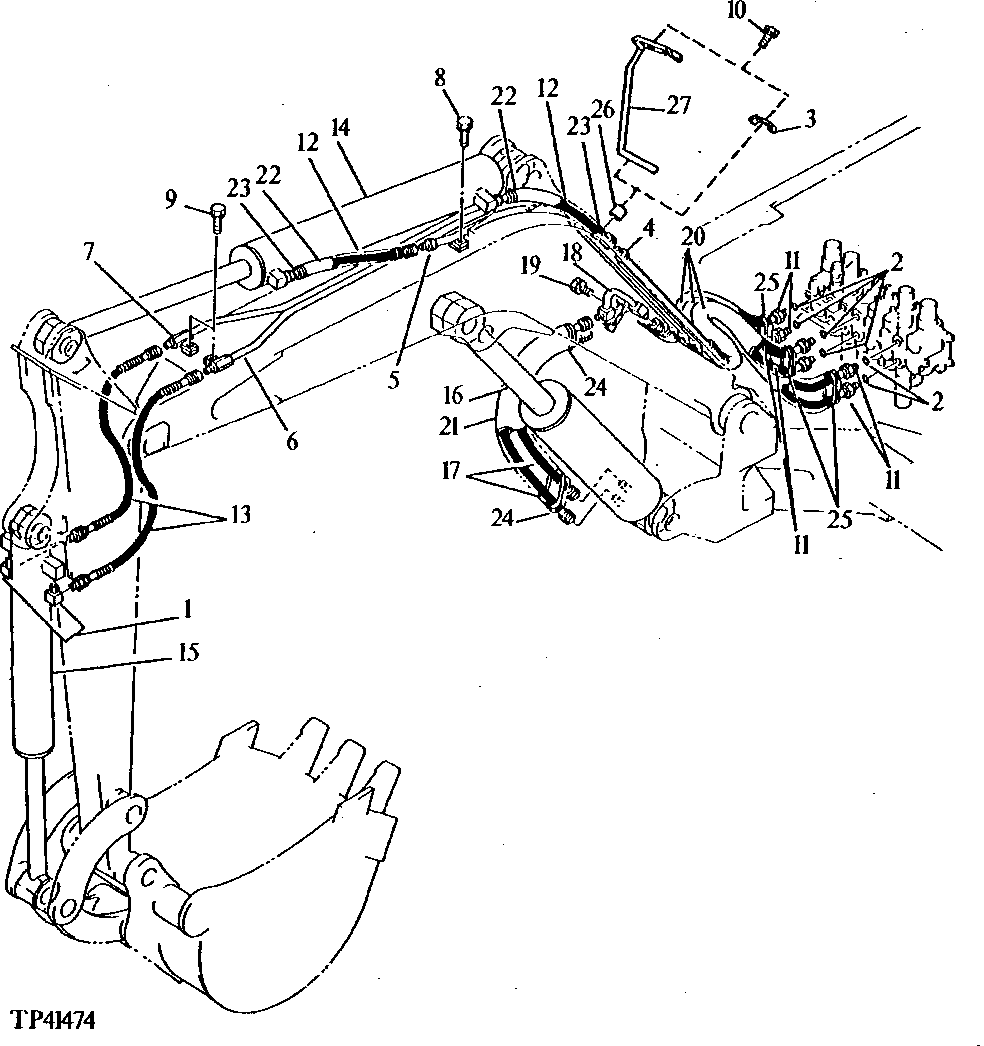

Запчасти John Deere 5 14 - BOOM HYDRAULIC LINES AND HOSES 2160 - MAIN HYDRAULIC SYSTEM

1

4154656

ELBOW FITTING

(SUB FOR T110861) (SUB FOR TH101588)

2шт.

2

T111264

PACKING

6шт.

3

T110009

PLATE

(WITHOUT AUXILIARY VALVE LINES)

4шт.

T110009

PLATE

(WITH AUXILIARY VALVE LINES)

3шт.

4

AT110564

OIL LINE

1шт.

5

AT110565

OIL LINE

1шт.

6

AT110566

OIL LINE

1шт.

7

AT110567

OIL LINE

1шт.

8

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

19M7932

CAP SCREW

M8 X 16

1шт.

9

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

19M7932

CAP SCREW

M8 X 16

2шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

19M7407

CAP SCREW

M8 X 25

4шт.

11

T111276

HYDRAULIC HOSE - FABRICATE

(SUB FOR T111764)

6шт.

12

T111288

HYDRAULIC HOSE - FABRICATE

2шт.

13

T111289

HYDRAULIC HOSE - FABRICATE

2шт.

14

AT111849

HYDRAULIC CYLINDER

(SUB FOR AT110555) ARM (USE IF AVAILABLE) (IF AT110555 NOT AVAILABLE, SUB AT111849)

1шт.

AT111849

HYDRAULIC CYLINDER

ARM

1шт.

15

AT111851

HYDRAULIC CYLINDER

(SUB FOR AT110219) BUCKET

1шт.

16

HYDRAULIC CYLINDER

(SUB AT111846) BOOM ( AT110553 NO LONGER AVAILABLE)

1шт.

AT111846

HYDRAULIC CYLINDER

(SUB FOR AT110553)

1шт.

17

T111287

HYDRAULIC HOSE - FABRICATE

2шт.

18

AT110563

OIL LINE

1шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

20

T111291

SLEEVE

3шт.

21

T111292

SLEEVE

1шт.

22

T111293

SLEEVE

2шт.

23

T111126

CLAMP

4шт.

24

CH16579

CLAMP

2шт.

25

T110004

BAND

6шт.

26

T111260

BUSHING

4шт.

27

AT111545

GUIDE

(FOR USE WITH AUXILIARY VALVE LINES)

1шт.
