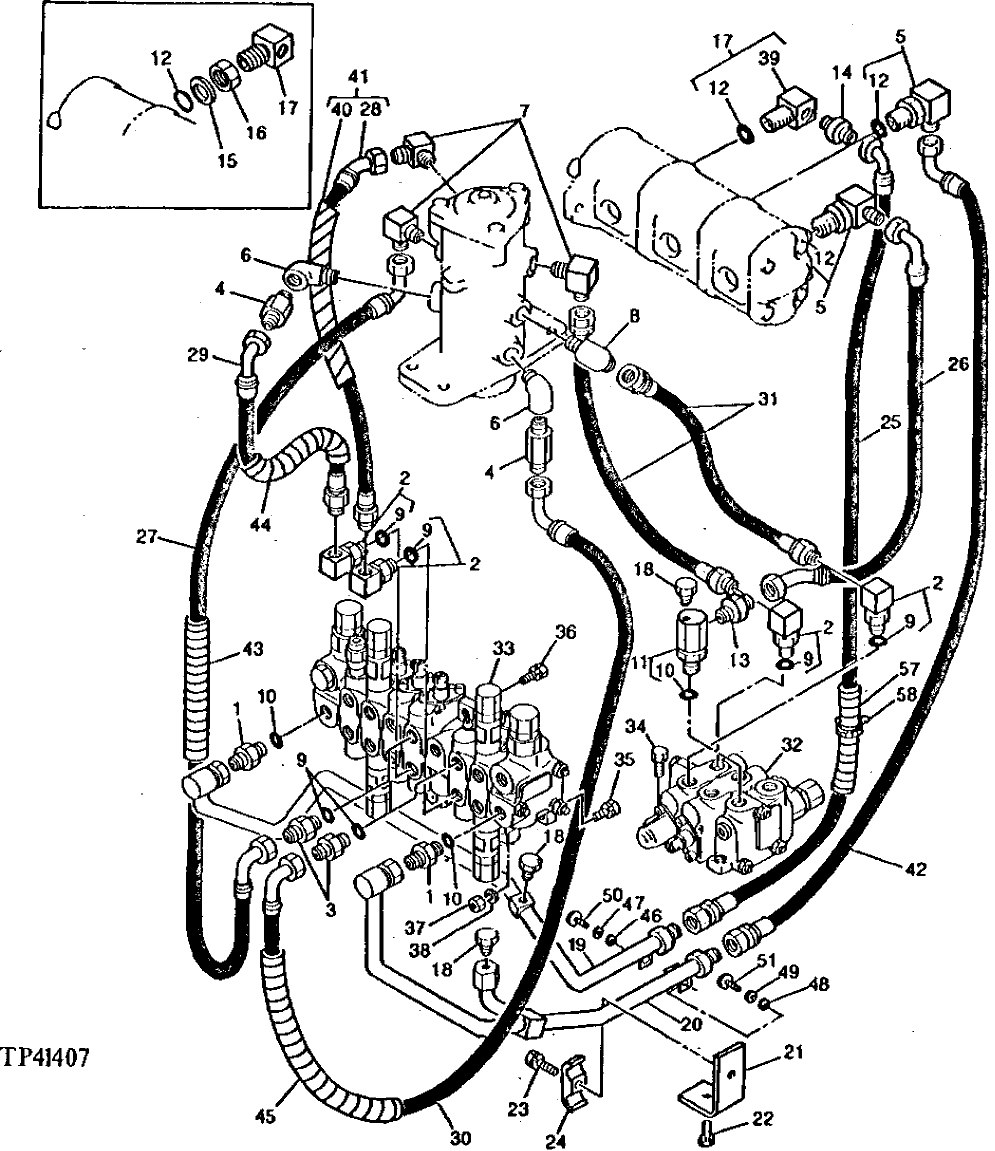

Запчасти John Deere 5 10 - ROTARY MANIFOLD HYDRAULIC LINES, HOSES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM

1

T111303

UNION FITTING

2шт.

2

T111266

ELBOW FITTING

(SUB FOR T111758)

4шт.

3

T111267

LUBRICATION FITTING

(SUB FOR T111759)

2шт.

4

T111268

FITTING

2шт.

5

T111265

ELBOW FITTING

(SUB FOR T111760)

2шт.

6

T111299

ELBOW FITTING

2шт.

7

4154656

ELBOW FITTING

(SUB FOR T111761 OR T110861) (SUB FOR TH101588)

3шт.

8

T111269

ELBOW FITTING

1шт.

9

M800650

PACKING

6шт.

10

CH11570

O-RING

3шт.

11

T111271

FITTING

1шт.

12

T110590

PACKING

3шт.

13

T115957

ADAPTER FITTING

(SUB FOR T110867)

1шт.

AT111984

ADAPTER FITTING

1шт.

14

T115957

ADAPTER FITTING

(SUB FOR T110867)

1шт.

15

T110601

RING

(SUB AT111513)

1шт.

16

T110602

NUT

(SUB AT111513)

1шт.

17

T110617

ELECTRICAL CONNECTOR ASSY

(SUB AT111513)

1шт.

AT111513

FITTING

1шт.

18

T110873

PLUG

3шт.

19

AT110568

OIL LINE

1шт.

AT111976

OIL LINE

1шт.

20

OIL LINE

(SUB AT111977) ( AT110569 NO LONGER AVAILABLE)

1шт.

AT111977

OIL LINE

1шт.

21

T110354

ANGLE

1шт.

22

12M7066

LOCK WASHER

10 MM (0.394")

1шт.

19M7166

CAP SCREW

M10 X 20

1шт.

23

M800452

SCREW WITH WASHER

1шт.

24

T110599

CLAMP

1шт.

25

AT111979

HYDRAULIC HOSE

9/16" X 1 270 MM (50") X 9/16", (SUB FOR T111272, ALONG WITH AT111978)

1шт.

26

T111273

HYDRAULIC HOSE

1шт.

AT111980

HYDRAULIC HOSE

9/16" X 870 MM (34-1/4") X 9/16"

1шт.

27

T114137

HYDRAULIC HOSE - FABRICATE

7/16" X 540 MM (21-1/4") X 7/16", (SUB FOR T111277)

1шт.

28

T111278

HYDRAULIC HOSE - FABRICATE

(SUB FOR T111762)

1шт.

29

T114138

HYDRAULIC HOSE - FABRICATE

7/16" X 450 MM (17-3/4") X 1/4", (SUB FOR T111279)

1шт.

30

T114139

HYDRAULIC HOSE - FABRICATE

7/16" X 440 MM (17-1/4") X 7/16", (SUB FOR T111280)

1шт.

31

T111281

HYDRAULIC HOSE - FABRICATE

2шт.

32

CONTROL VALVE

( AT110561 NO LONGER AVAILABLE)

1шт.

33

VALVE

(T111763 - NO LONGER AVAILABLE)

1шт.

34

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

3шт.

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

3шт.

35

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

4шт.

19M7513

CAP SCREW

M8 X 30, (SUB FOR 19M7288)

4шт.

36

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

1шт.

19M7881

SCREW

M8 X 20

1шт.

37

14M7273

NUT

M8

2шт.

38

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

2шт.

39

FITTING

(SUB AT111513)

1шт.

40

T114135

COVER

1шт.

41

AT111785

HYDRAULIC HOSE

7/16" X 530 MM (20-3/4") X 1/4"

1шт.

42

AT111978

HYDRAULIC HOSE

9/16" X 780 MM (30-3/4") X 9/16", (SUB FOR T111272, ALONG WITH AT111979)

1шт.

43

HOSE GUARD

(BULK MATERIAL T138881, CUT TO LENGTH)

1шт.

44

HOSE GUARD

(BULK MATERIAL T138881, CUT TO LENGTH)

1шт.

45

HOSE GUARD

(BULK MATERIAL T138881, CUT TO LENGTH)

1шт.

46

24M7028

WASHER

10.500 X 20 X 2 MM (0.413" X 0.787" X 0.079")

1шт.

47

12M7066

LOCK WASHER

10 MM (0.394")

1шт.

48

24M7055

WASHER

8.400 X 16 X 1.600 MM (0.331" X 0.630" X 0.063")

1шт.

49

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

1шт.

50

19M7402

CAP SCREW

M10 X 25

1шт.

51

19M7881

SCREW

M8 X 20

1шт.

57

AT111981

HYDRAULIC HOSE

1шт.

58

T110612

TIE BAND

1шт.
