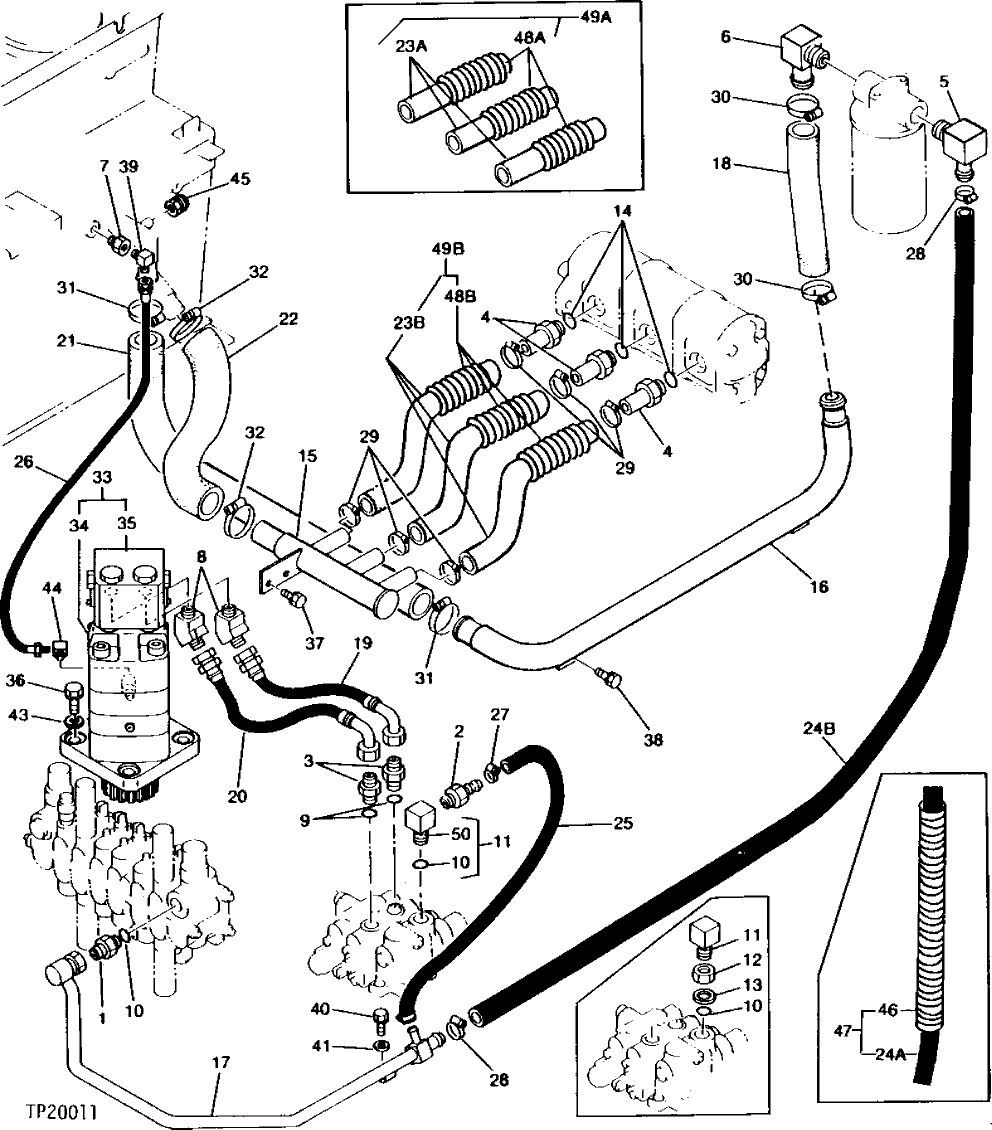

Запчасти John Deere 5 8 - SWING MOTOR HYDRAULIC LINES, HOSES AND FITTINGS 2160 - MAIN HYDRAULIC SYSTEM

1

T111303

UNION FITTING

1шт.

2

T110351

THREADED NIPPLE

1шт.

3

T111267

LUBRICATION FITTING

2шт.

4

T110352

UNIVERSAL JOINT

3шт.

5

AT110200

HOSE FITTING

1шт.

6

AT110201

HOSE FITTING

1шт.

7

T111259

FITTING

1шт.

8

T111269

ELBOW FITTING

2шт.

9

M800650

PACKING

2шт.

10

CH11570

O-RING

1шт.

11

CONNECTOR

(SUB AT111512) ( T111332 NO LONGER AVAILABLE)

1шт.

AT111512

FITTING

1шт.

12

NUT

(SUB AT111512) ( T111333 NO LONGER AVAILABLE)

1шт.

13

RING

(SUB AT111512) ( T110512 NO LONGER AVAILABLE)

1шт.

14

T118681

O-RING

(SUB FOR T110604)

3шт.

15

AT110202

OIL LINE

1шт.

AT111984

ADAPTER FITTING

1шт.

16

AT110203

OIL LINE

1шт.

17

AT110204

TUBE

1шт.

AT111985

OIL LINE

1шт.

18

T110360

HYDRAULIC HOSE - FABRICATE

1шт.

19

T111282

HYDRAULIC HOSE - FABRICATE

1шт.

20

T111283

HYDRAULIC HOSE - FABRICATE

1шт.

21

T110376

HYDRAULIC HOSE - FABRICATE

1шт.

22

T110356

HYDRAULIC HOSE

1шт.

23A

T110357

HYDRAULIC HOSE

(SUB AT111510) (IF AT111510 NOT AVAILABLE, SUB AT111982)

3шт.

23B

T111986

HOSE

(SUB AT111510) (IF AT111510 NOT AVAILABLE, SUB AT111982)

3шт.

HYDRAULIC HOSE

(SUB AT111982)

3шт.

24A

T110358

HYDRAULIC HOSE - FABRICATE

(SUB AT11501)

1шт.

24B

T110358

HYDRAULIC HOSE - FABRICATE

1шт.

25

T110359

HYDRAULIC HOSE - FABRICATE

1шт.

26

AH97777

HYDRAULIC HOSE

(SUB FOR T111290)

1шт.

27

TY22464

CLAMP

(SUB FOR CH11810 AND M801273) (SUB FOR AR21836)

2шт.

28

M800675

CLAMP

2шт.

29

M800675

CLAMP

6шт.

30

M800674

HOSE CLAMP

2шт.

31

M800674

HOSE CLAMP

2шт.

32

TY22470

CLAMP

(SUB FOR CH12906) (SUB FOR AR65293)

2шт.

33

AT110192

HYDRAULIC MOTOR

1шт.

34

AT110559

HYDRAULIC MOTOR

(USE IF AVAILABLE)

1шт.

35

AT111863

HYD ACTUATED CONTROL VALVE

(SUB FOR AT110560)

1шт.

36

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

4шт.

19M7493

CAP SCREW

M12 X 40

4шт.

37

12M7066

LOCK WASHER

10 MM

2шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

38

12M7066

LOCK WASHER

10 MM

2шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M8324, THIS APPLICATION)

2шт.

39

T111270

ELBOW FITTING

1шт.

40

12M7066

LOCK WASHER

10 MM

1шт.

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M8324, THIS APPLICATION)

1шт.

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

19M7881

SCREW

M8 X 20

1шт.

41

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

43

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098") (SUB FOR CH14865)

4шт.

44

T111270

ELBOW FITTING

1шт.

45

T111258

FITTING PLUG

1шт.

46

T111959

HOSE GUARD

1шт.

47

AT111501

HOSE

1шт.

48A

T111959

HOSE GUARD

1шт.

48B

T111987

HOSE GUARD

(SUB AT111510) (IF AT111510 NOT AVAILABLE, SUB AT111982)

1шт.

HOSE GUARD

(SUB AT111982)

1шт.

49A

AT111982

HYDRAULIC HOSE

(SUB FOR AT111500) (SUB AT111510)

3шт.

49B

AT111982

HYDRAULIC HOSE

(SUB FOR AT111510) (USE IF AVAILABLE)

3шт.

AT111982

HYDRAULIC HOSE

(SUB FOR AT111510)

3шт.

50

FITTING

(SUB AT111512)

1шт.
