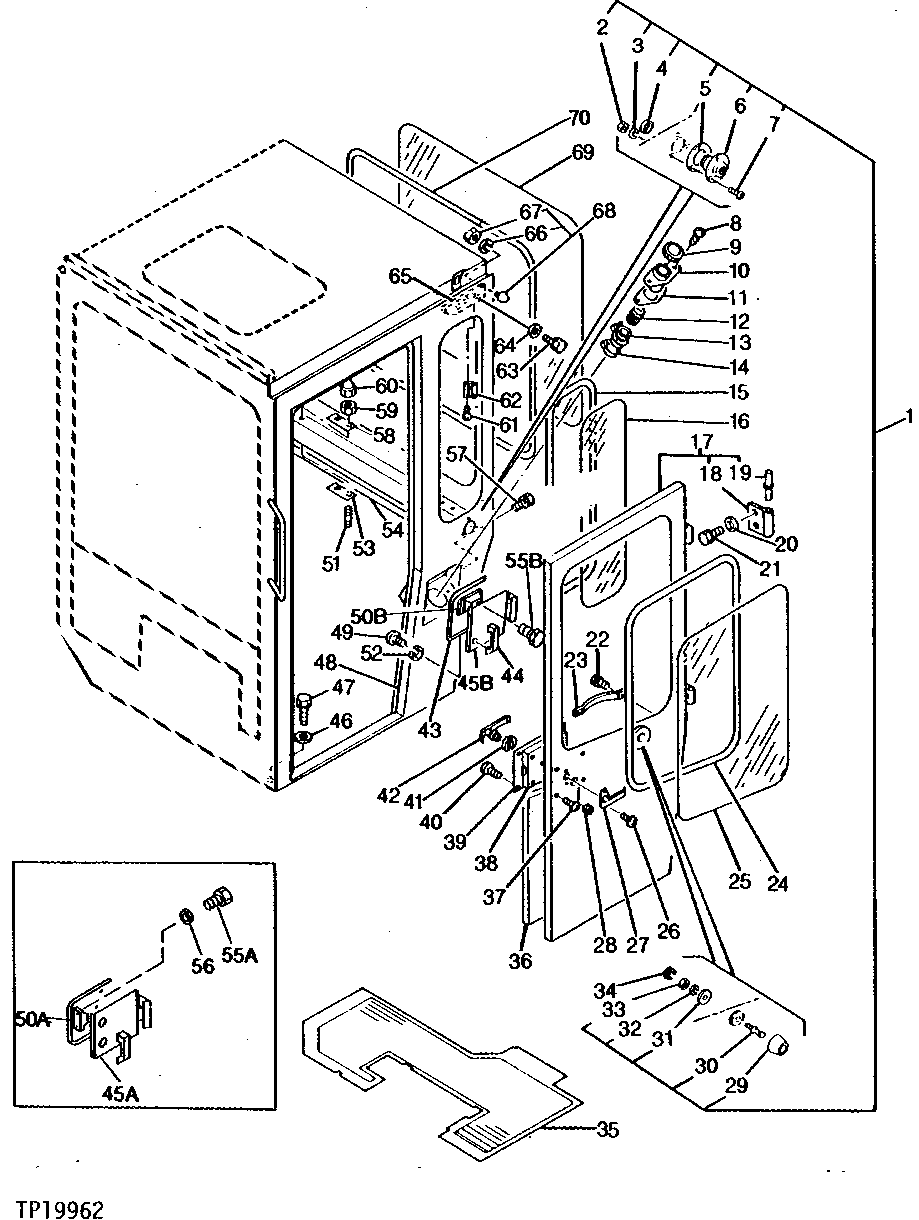

Запчасти John Deere 5 6 - CABIN 1810 - OPERATORS STATION 18

1

AT111680

CATCH

1шт.

2

14M7272

NUT

M6, (SUB FOR CH17809)

3шт.

3

12M7064

LOCK WASHER

5 MM

3шт.

4

KNOB

(T111021 - NO LONGER AVAILABLE)

1шт.

5

PACKING

(T111019 - NO LONGER AVAILABLE)

1шт.

6

T111018

CATCH

(USE IF AVAILABLE)

1шт.

7

CH12037

SCREW

3шт.

8

T114012

CAP SCREW

2шт.

9

T110805

FILLER CAP

1шт.

10

T113978

FUEL LINE

1шт.

11

T113979

GASKET

1шт.

12

M800354

FUEL FILTER

1шт.

13

T113998

HOSE

1шт.

14

TY22473

CLAMP

(SUB FOR T114007) (SUB FOR AR21841, THIS APPLICATION) (SUB FOR AR62936)

2шт.

15

T113997

ISOLATOR

1шт.

16

T113990

WINDOWPANE

1шт.

17

AT111679

DOOR

1шт.

18

T114018

HINGE

2шт.

19

T111063

PIN

2шт.

20

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

21

19M7166

CAP SCREW

M10 X 20

4шт.

12M7066

LOCK WASHER

10 MM

4шт.

22

T110453

SCREW WITH WASHER

4шт.

23

T110156

HANDLE

1шт.

24

T114026

ISOLATOR

1шт.

25

T114025

WINDOWPANE

1шт.

26

T111320

SCREW

2шт.

27

T114019

HANDLE

1шт.

28

T114102

GROMMET

1шт.

29

CUSHION

(T111020 - NO LONGER AVAILABLE)

1шт.

30

CATCH

(T114023 - NO LONGER AVAILABLE)

1шт.

31

WASHER

(T114024 - NO LONGER AVAILABLE)

1шт.

32

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

33

14M7273

NUT

M8

1шт.

34

T110026

GROMMET

1шт.

35

T113974

MAT

(USE WITH AUXILIARY VALVE)

1шт.

T113975

MAT

(USE WITHOUT AUXILIARY VALVE)

1шт.

36

T114027

SEALING TRIM

1шт.

37

M801342

SCREW WITH WASHER

4шт.

38

T114021

LOCK

1шт.

39

T114030

COVER

1шт.

40

T111315

SCREW WITH WASHER

4шт.

41

T114028

GROMMET

1шт.

42

T114020

GRIP

1шт.

43

T114010

ISOLATOR

1шт.

44

T114029

HANDLE

1шт.

45A

T113977

CAP

1шт.

45B

AT111729

COVER

1шт.

46

24M7028

WASHER

10.500 X 20 X 2 MM

5шт.

47

19M7166

CAP SCREW

M10 X 20

5шт.

12M7066

LOCK WASHER

10 MM

5шт.

48

T114017

ISOLATOR

1шт.

49

CH12034

SCREW

2шт.

50A

T110288

CATCH

1шт.

50B

T114043

LATCH

1шт.

51

T114008

STUD

4шт.

CH19020

STUD

4шт.

52

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

53

T114003

ISOLATOR

2шт.

54

T114004

ISOLATOR

1шт.

55A

T110849

SCREW WITH WASHER

2шт.

55B

T110459

SCREW WITH WASHER

2шт.

56

CH13482

WASHER

2шт.

57

19M7923

CAP SCREW

M6 X 12

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

58

T114011

PLATE

2шт.

T114239

STRAP

2шт.

59

14M7274

NUT

M10

4шт.

14M7275

NUT

M12

4шт.
