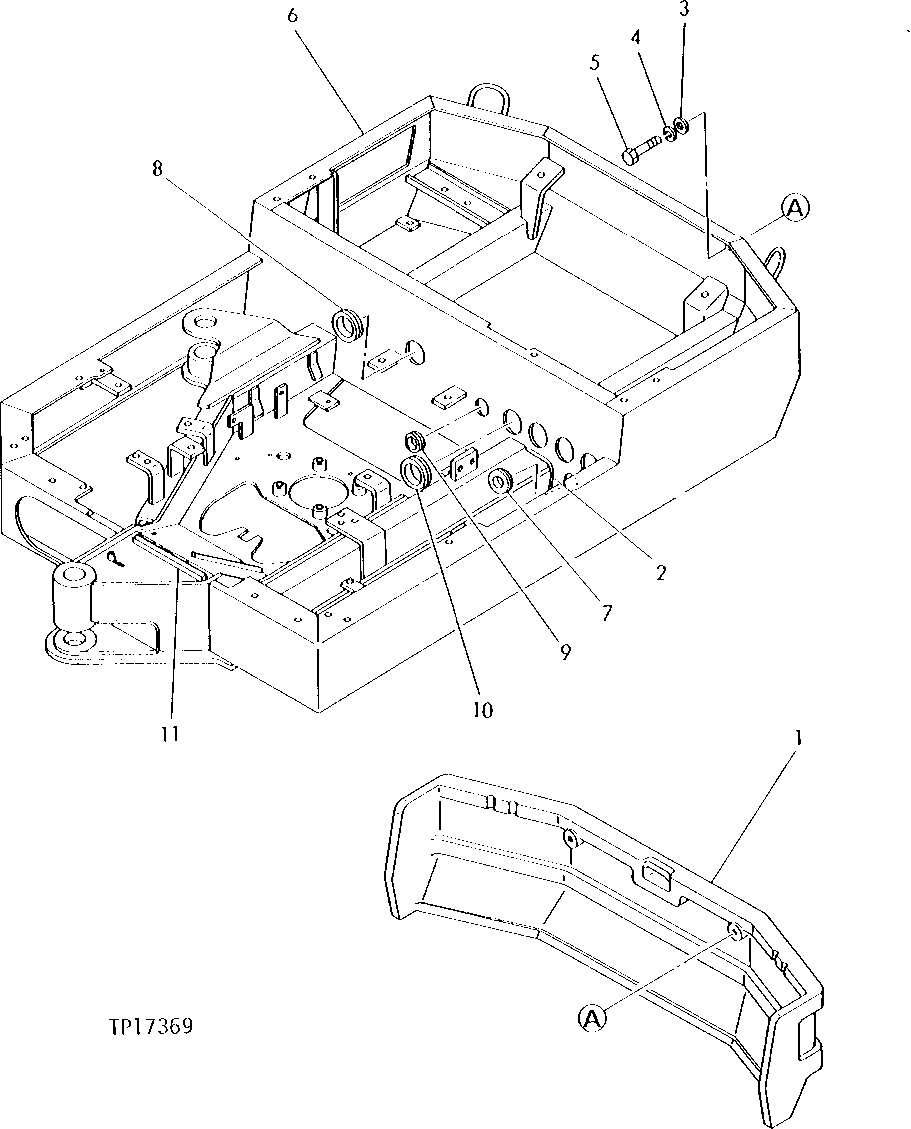

Запчасти John Deere 5 2 - SWING FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

WEIGHT

( AT110523 NO LONGER AVAILABLE)

1шт.

2

T110327

ISOLATOR

1шт.

3

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098")

2шт.

4

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR 12M7067)

2шт.

5

19M7744

CAP SCREW

M12 X 35

2шт.

6

FRAME

(SUB FOR T111754 AND AT110581) ( AT111839 NO LONGER AVAILABLE)

1шт.

7

T110622

GROMMET

2шт.

8

T110391

GROMMET

1шт.

9

T110479

GROMMET

1шт.

10

T110485

GROMMET

5шт.

11

T111188

SEAL

1шт.
